Product Description

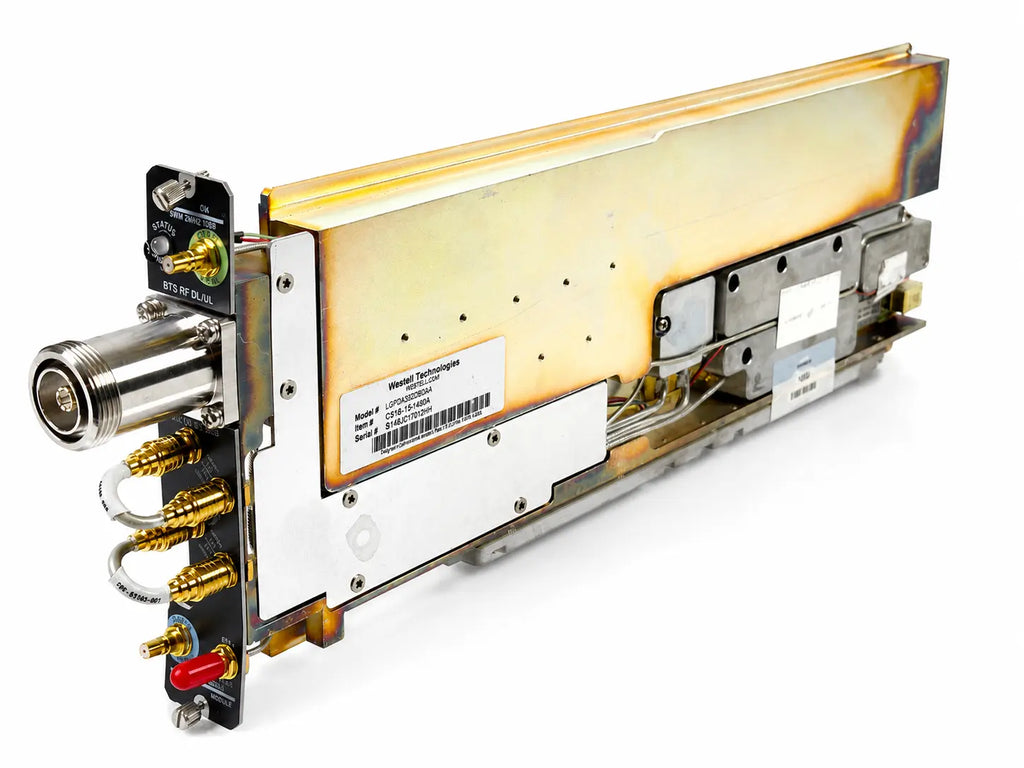

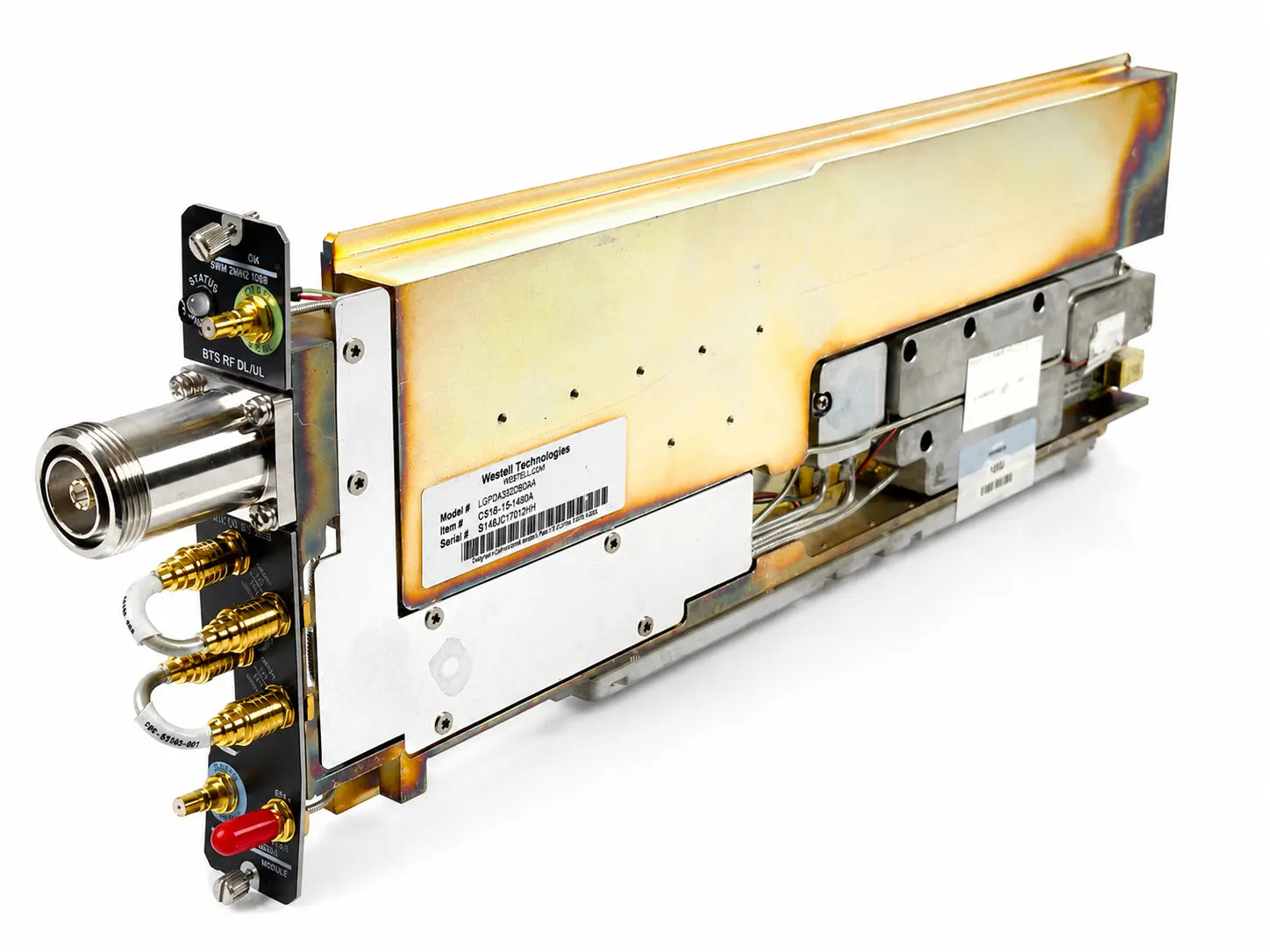

The Westell CS18-115-108 ClearLink UDIT AWS 2100 POI Module is a Point of Interface module designed for the ClearLink Universal DAS Interface Tray platform. This module provides RF conditioning between a Base Transceiver Station and a Distributed Antenna System, supporting AWS 2100 MHz DAS deployments.
According to the Westell ClearLink UDIT datasheet, part number CS18-115-108 corresponds to model UDIT-P1SDS-H3AX2-2100 and supports a downlink frequency range of 2110 MHz to 2155 MHz and an uplink frequency range of 1710 MHz to 1755 MHz. The UDIT platform is designed for single operator and multi-operator neutral host DAS systems, with plug-and-play POI modules that are hot-swappable and automatically detected by the system.
The CS18-115-108 POI module supports dynamic downlink power control, uplink and downlink attenuation adjustment, real-time power monitoring, and local or remote management through HTTPS and SNMP. Please confirm compatibility with your existing Westell ClearLink UDIT chassis, frequency plan, and DAS system requirements before purchase.
This listing is for the Westell CS18-115-108 AWS 2100 MHz POI Module only.
Key Specifications
- Manufacturer: Westell
- Part Number: CS18-115-108
- Model Number: UDIT-P1SDS-H3AX2-2100
- Product Type: Point of Interface POI Module
- Platform: ClearLink UDIT Universal DAS Interface Tray
- Frequency Band: AWS 2100 MHz
- Downlink Frequency Range: 2110 MHz to 2155 MHz
- Uplink Frequency Range: 1710 MHz to 1755 MHz
- Application: Distributed Antenna System infrastructure
- RF Conditioning: BTS to DAS RF conditioning
- Dynamic Downlink Power Control: Available
- Downlink Attenuation Range: 31 dB in 1 dB steps
- Uplink Attenuation Range: 0 dB to 35 dB in 1 dB steps
- Power Monitoring: Available for both downlink and uplink
- Maximum BTS Input Power: 50 dBm / 100 W in high power mode
- PIM Rating: -153 dBc
- Management Interface: Web Server HTTPS, SNMP v1, v2, and v3
- Hot Swappable: Yes
- POI Module Power Consumption: 7.0 W maximum, typical at -48 VDC
- POI Module Dimensions: 7 x 1.3 x 16.9 in
- POI Module Weight: 5.5 lb
- Deployment Type: Single operator and multi-operator neutral host DAS systems
