Description

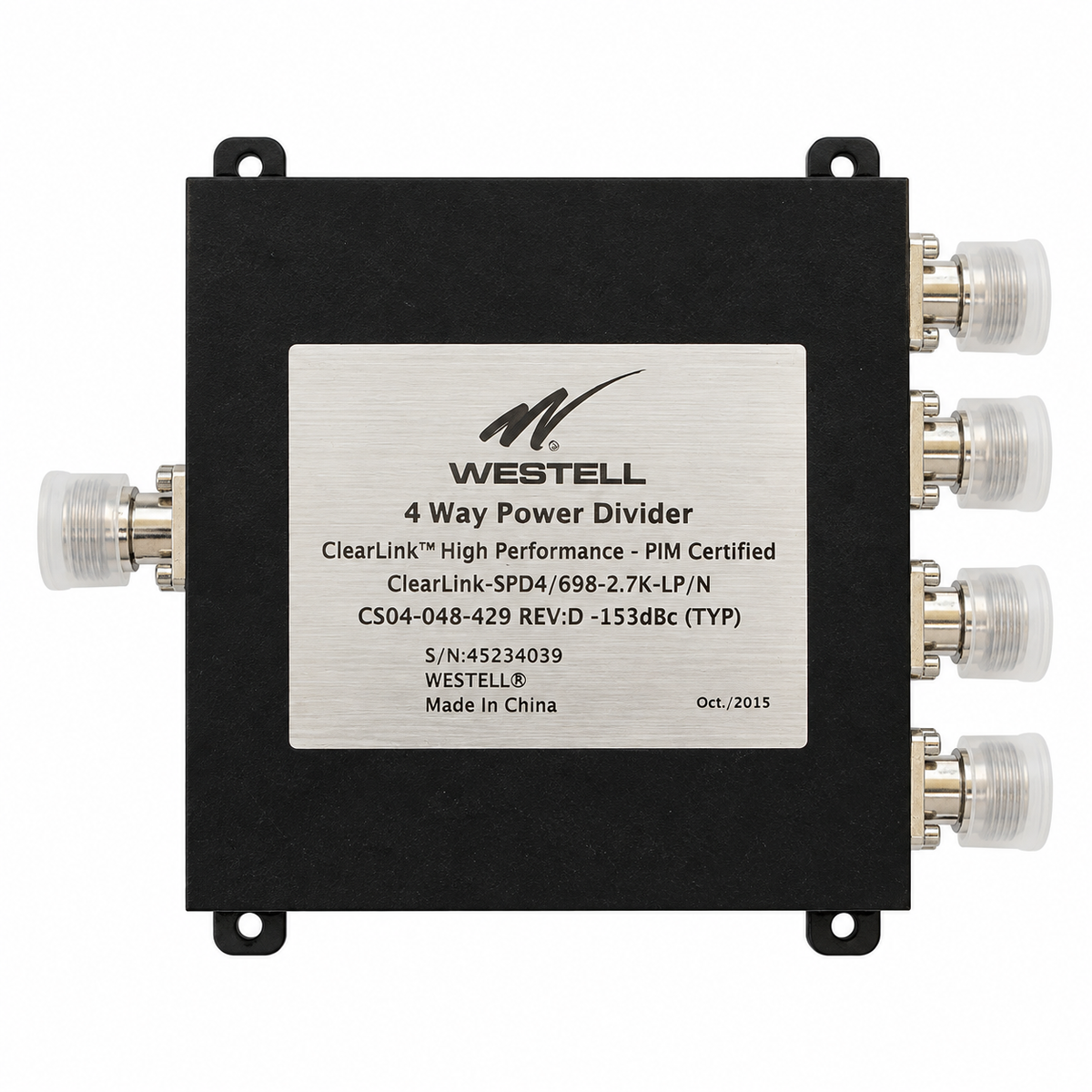

The Westell ClearLink CS04-048-429 is a 4-way low PIM RF power divider designed for professional in-building wireless and distributed antenna system applications. Featuring N-Type Female connectors, a 698 to 2700 MHz operating frequency range, and a 50 W power rating, this passive divider allows an RF signal to be distributed across four antenna or signal paths.
The CS04-048-429 provides a specified -153 dBc PIM rating with low through loss and low VSWR performance. The 4-way configuration has a 6.0 dB split loss, typical dissipative loss of 0.2 dB, total loss of 6.2 dB, and isolation of at least 16 dB. Designed for indoor or outdoor use, the unit is IP65 and RoHS compliant.
Key Specifications
- Manufacturer: Westell
- Product Family: ClearLink
- Part Number: CS04-048-429
- Model Number: ClearLink-SPD4/698-2.7K-LP/N
- Product Type: Low PIM RF Power Divider
- Configuration: 4-Way
- Connector Type: N-Type Female
- Operating Frequency: 698 to 2700 MHz
- Power Rating: 50 W
- PIM Rating: -153 dBc
- Split Loss: 6.0 dB
- Dissipative Loss: 0.2 dB typical
- Total Loss: 6.2 dB
- Isolation: ≥16 dB
- VSWR: ≤1.40:1
- Operating Temperature: -35°C to +75°C
- Application Environment: Indoor / Outdoor
- Ingress Protection: IP65
- RoHS: RoHS Compliant
- Dimensions: 5.07 x 5.55 x 0.87 in
- Condition: New
- Quantity: 1 Power Divider
Typical Applications
- Distributed Antenna Systems (DAS)
- In-building wireless systems
- Cellular RF signal distribution
- Multi-antenna RF installations
- Public safety wireless systems
- Commercial wireless infrastructure
- Indoor and outdoor RF distribution networks
| Price Comparison | |||
| DAS DEALS | Tessco | Talley | Graybar |
|---|---|---|---|
| $129.99 | N/A | $166.97 | $178.17 |
| You Save | N/A | 22% | 27% |
Please Note: Price comparison is shown per unit. The CS04-048-429 is the 4-way N-Type Female version of the Westell ClearLink low power divider series. Please verify frequency range, connector type, power requirements, and system compatibility before ordering.
