Description

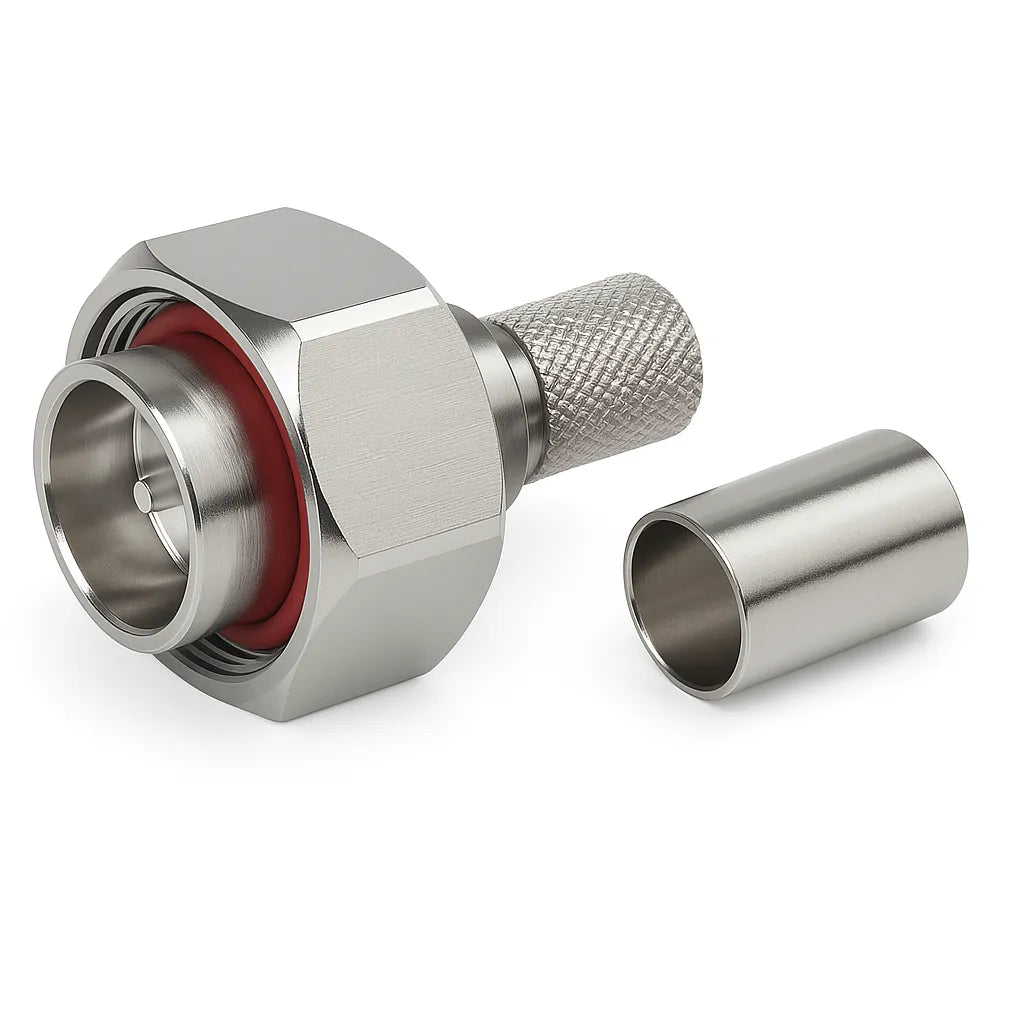

The Times Microwave EZ-400-716M-X is a high-performance 7/16 DIN male straight connector specifically engineered for use with LMR-400 coaxial cable. Featuring a non-solder captivated pin design, this connector streamlines field installation while ensuring superior RF performance and mechanical reliability. With a wide operating frequency range up to 3 GHz and outstanding VSWR ≤1.15, it is ideal for demanding RF systems including DAS, cellular infrastructure, and broadband deployments.
Designed with weatherproof IP67 protection and compliant with MIL-STD environmental standards, this connector performs reliably in harsh conditions. The outer conductor is crimped while the center conductor is captivated, offering a secure and repeatable termination.
Key Specifications
✅ Interface: 7/16 DIN Male
✅ Cable Compatibility: LMR-400
✅ Impedance: 50 Ohm
✅ Frequency Range: DC–3 GHz
✅ Insertion Loss: ≤ 0.05 dB
✅ VSWR: ≤ 1.15
✅ Proof Voltage: 2500 V
✅ Waterproofing: IP67
✅ Operating Temp Range: –55°C to +155°C
✅ Compliance: RoHS, MIL-STD 202 (Thermal Shock, Vibration, Shock)
Compatible RF Cable Types
-
LMR-400 (Times Microwave)
-
CNT-400 (Commscope)
-
RGC-400 (Various)
-
RF400 (Generic Equivalents)
