Description

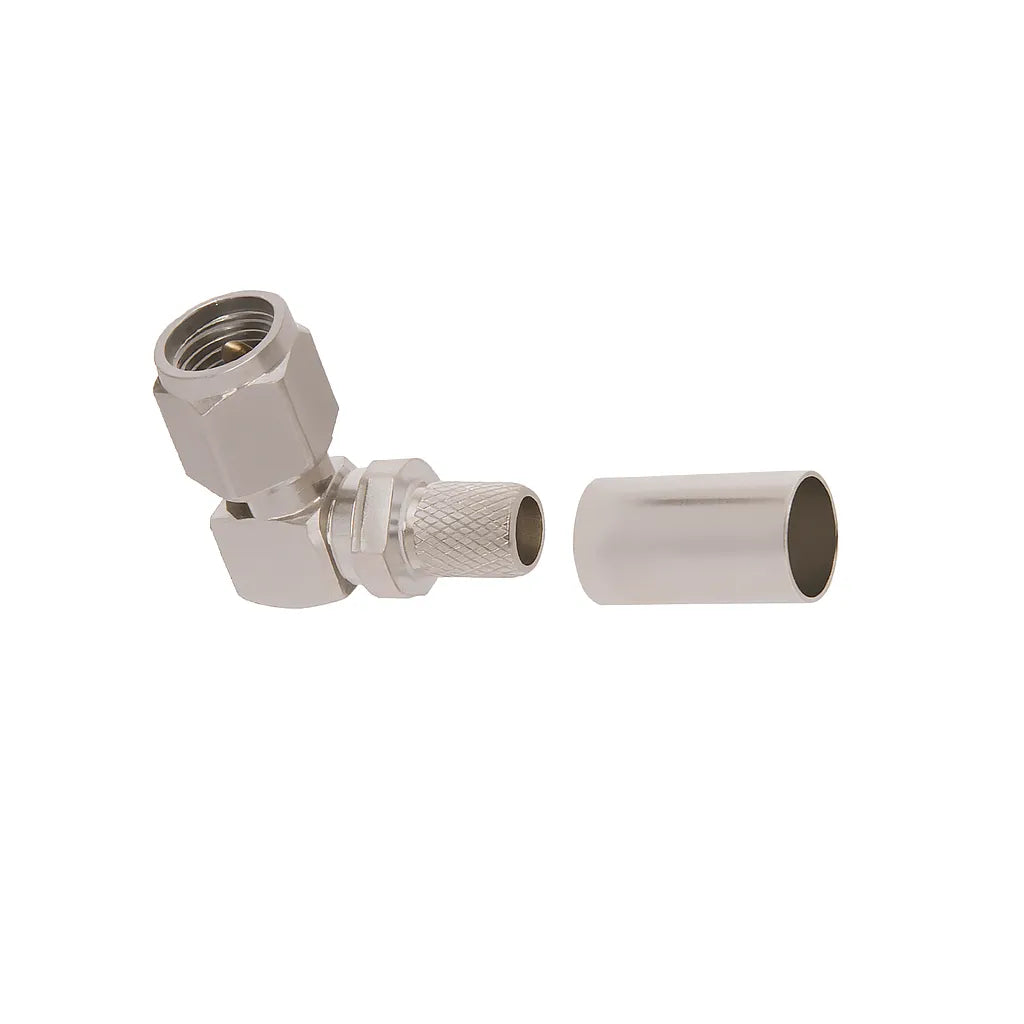

The Times Microwave EZ-240-SM-RA-X is a precision-engineered SMA male right-angle connector designed for secure crimp attachment to LMR-240 coaxial cable. Featuring a captivated gold-plated phosphor bronze pin and a robust brass body, this connector delivers low-loss, high-frequency performance up to 6 GHz. The PTFE dielectric insulation ensures stable electrical characteristics, while the right-angle design supports compact cable routing in space-constrained RF setups.
Ideal for RF communications, antennas, test setups, and custom cable assemblies, this connector is widely used in DAS, cellular, and wireless networking installations.
Key Specifications
✅ Connector Type: SMA Male (Right Angle)
✅ Cable Compatibility: LMR-240
✅ Frequency Range: DC to 6 GHz
✅ Contact Material: Gold-plated phosphor bronze
✅ Body Material: Brass (Albaloy plated)
✅ Insulator: PTFE
✅ Compliance: MIL-STD-348 Interface, RoHS
✅ Attachment Method: Crimp (captivated pin)
✅ Finish: Nickel, Albaloy, and Gold plating
✅ Application: DAS, RF test, antennas, wireless infrastructure
Compatible RF Cable Types
-
LMR-240 (Times Microwave)
-
CNT-240 (Commscope)
-
Belden 7808R
-
RF240 (Various OEM equivalents)
