Description

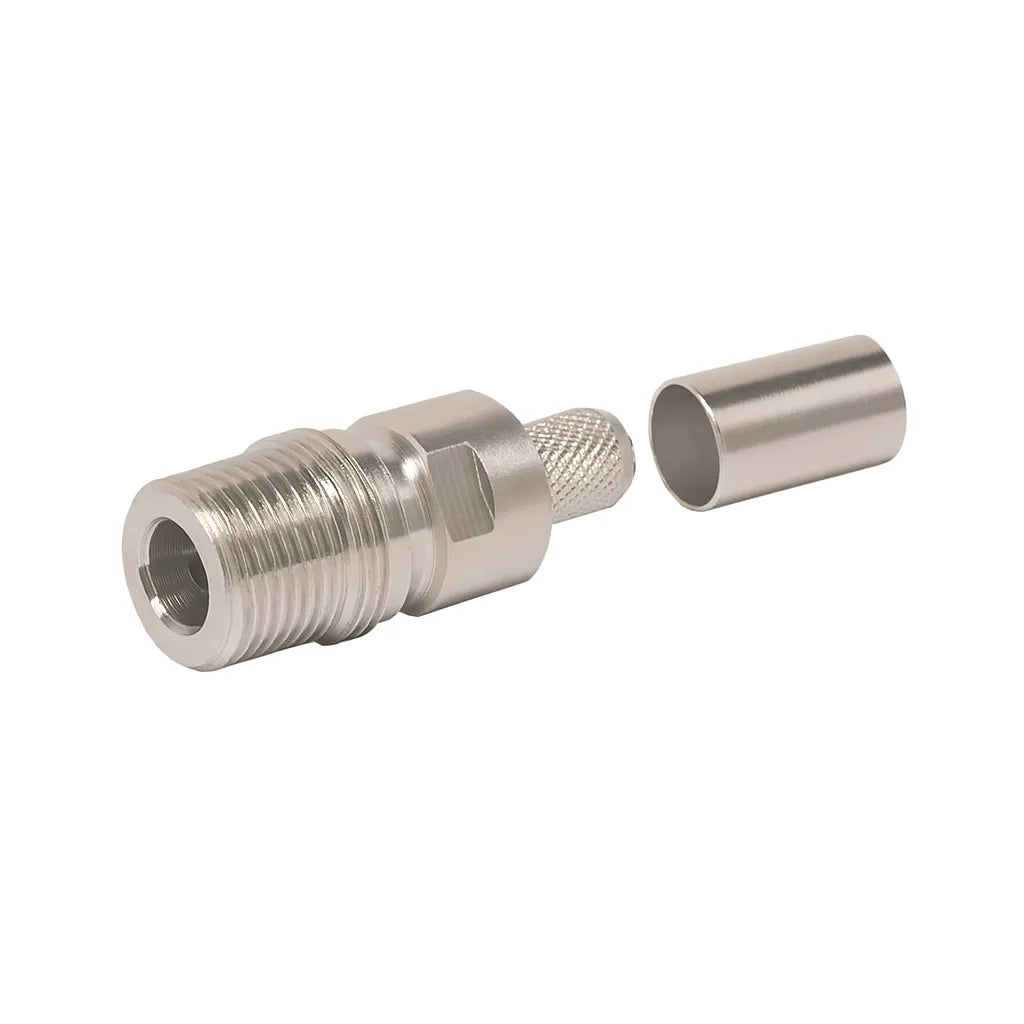

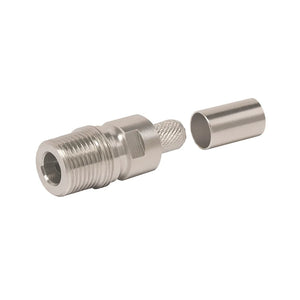

The Times Microwave EZ-240-QM-X is a QMA Male straight RF connector designed for LMR-240 coaxial cable. This compact quick-connect QMA connector is designed for RF cable assemblies where fast mating, dense connector spacing, and reliable coaxial termination are important.
The EZ-240-QM-X is a 50 Ohm connector operating from DC to 8 GHz. It uses a finger-style center contact, crimp outer contact, and Times Microwave non-solder, no-braid-trim termination design. It is suitable for DAS, cellular, wireless infrastructure, antenna systems, telecom equipment, RF test setups, and custom LMR-240 cable assemblies.
Key Specifications
- Manufacturer: Times Microwave Systems
- Part Number: EZ-240-QM-X
- Times Microwave Stock Code: 3190-6564
- Connector Type: QMA Male RF Connector
- Body Style: Straight
- Cable Compatibility: LMR-240 coaxial cable
- Impedance: 50 Ohm
- Frequency Range: DC to 8 GHz
- VSWR: ≤ 1.30
- Insertion Loss: ≤ 0.1 × √f
- Dielectric Withstanding Voltage: 1000 V
- Insulation Resistance: ≥ 5000 MOhm
- Center Contact: Finger Contact
- Outer Contact: Crimp
- Installation: Non-solder pin, no braid trim
- Cable Retention Force: 250 N
- Durability: 100 cycles
- Temperature Range: -40°C to +125°C
- Body Material / Finish: Brass with Albaloy finish
- Center Contact Material / Finish: Beryllium copper with gold finish
- Ferrule: Copper with Albaloy finish
- Insulator: PTFE
- Gasket: Silicone
- Stripping Tool: 3192-152 / CST-240A
- Crimping Tool: 3190-667 / CT-240/200/100
- RoHS: Compliant
- Condition: New in factory packaging / OEM surplus
Compatible RF Cable Types
- Times Microwave LMR-240 coaxial cable
Common Applications
- DAS and in-building wireless systems
- Cellular and wireless infrastructure
- Antenna systems
- Telecom installations
- RF test and measurement setups
- Custom LMR-240 RF cable assemblies
- High-density equipment using QMA quick-connect interfaces
Please Note: Please confirm compatibility with your exact cable type and installation requirements before purchase.
