Description

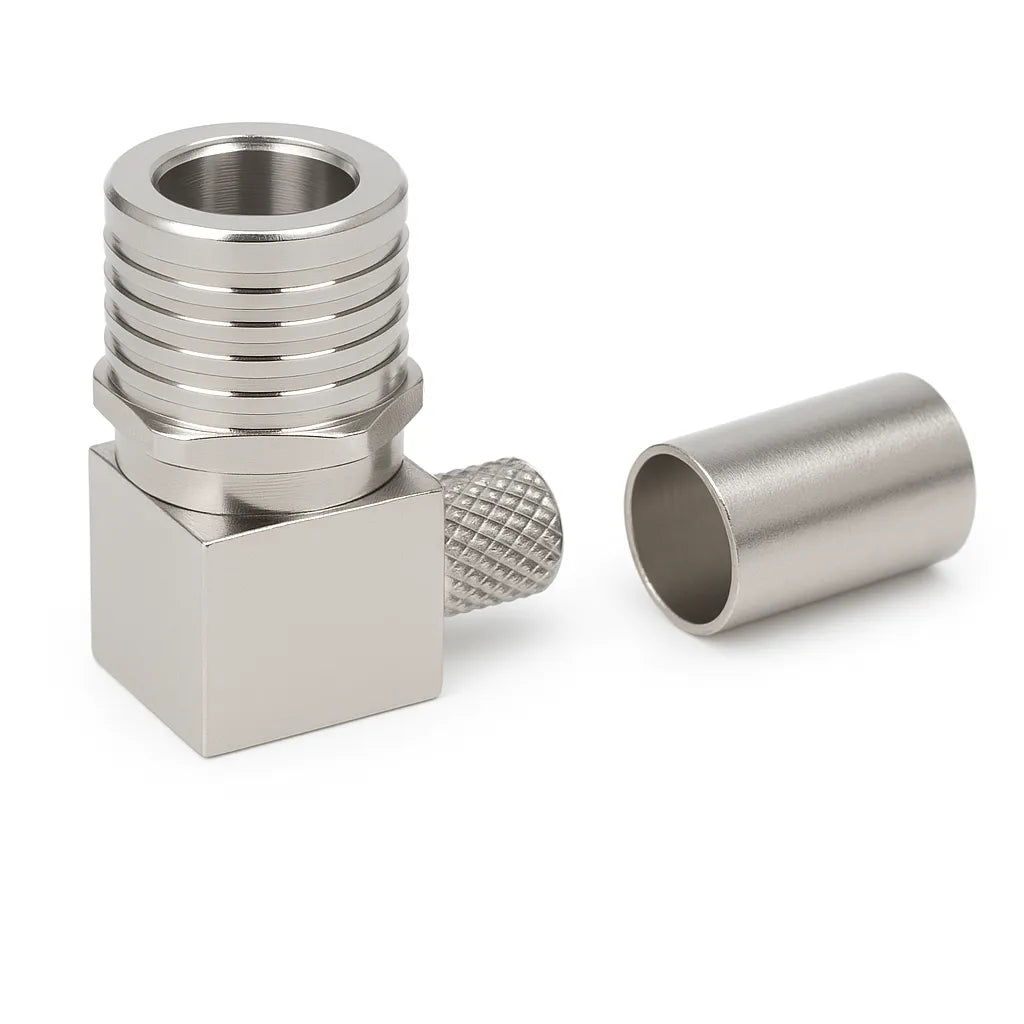

The Times Microwave EZ-240-QM-RA-X is a QMA Male right angle RF connector designed for LMR-240 and compatible 240-series coaxial cable. Its compact 90-degree configuration and quick-connect QMA interface make it well suited for RF cable assemblies where equipment clearance, dense connector spacing, or cable routing makes a threaded or straight connector less practical.
The EZ-240-QM-RA-X is a 50 Ohm connector rated to 6 GHz. It uses a spring-finger inner contact and crimp outer contact for solder-free cable termination. The QMA interface provides push-on mating for fast installation in DAS, cellular, antenna, telecom, RF test, and other wireless infrastructure applications.
Key Specifications
- Manufacturer: Times Microwave Systems
- Part Number: EZ-240-QM-RA-X
- Times Microwave Stock Code: 3190-2895
- Connector Type: QMA Male RF Connector
- Body Style: Right Angle / 90 Degree
- Cable Size: 240 Series
- Impedance: 50 Ohm
- Maximum Frequency: 6 GHz
- VSWR: Less than 1.3:1
- Inner Contact Attachment: Spring Finger
- Outer Contact Attachment: Crimp
- Coupling Style: QMA Push-On / Knurled Sleeve
- Body / Coupling Sleeve Material: Brass
- Insulator: PTFE
- Crimp Sleeve Material: DHP Copper
- Contact Material: Beryllium Copper
- Contact Finger Material: Phosphor Bronze
- Contact Finish: Gold Plated
- Body Finish: Albaloy
- Approx. Length: 0.91 in / 23.1 mm
- Approx. Width: 0.81 in / 20.6 mm
- Approx. Weight: 0.02 lb / 8.62 g
- Condition: New in factory packaging / OEM surplus
Compatible RF Cable Types
- Times Microwave LMR-240
- Times Microwave TCOM-240
Common Applications
- DAS and in-building wireless systems
- Cellular and wireless infrastructure
- Antenna systems
- Telecom installations
- RF test and measurement setups
- Custom LMR-240 RF cable assemblies
- High-density equipment installations using QMA quick-connect interfaces
- Right angle cable routing in space-constrained installations
Please Note: Please confirm compatibility with your exact cable type and installation requirements before purchase. This listing is for the EZ-240-QM-RA-X QMA Male right angle version.
