Description

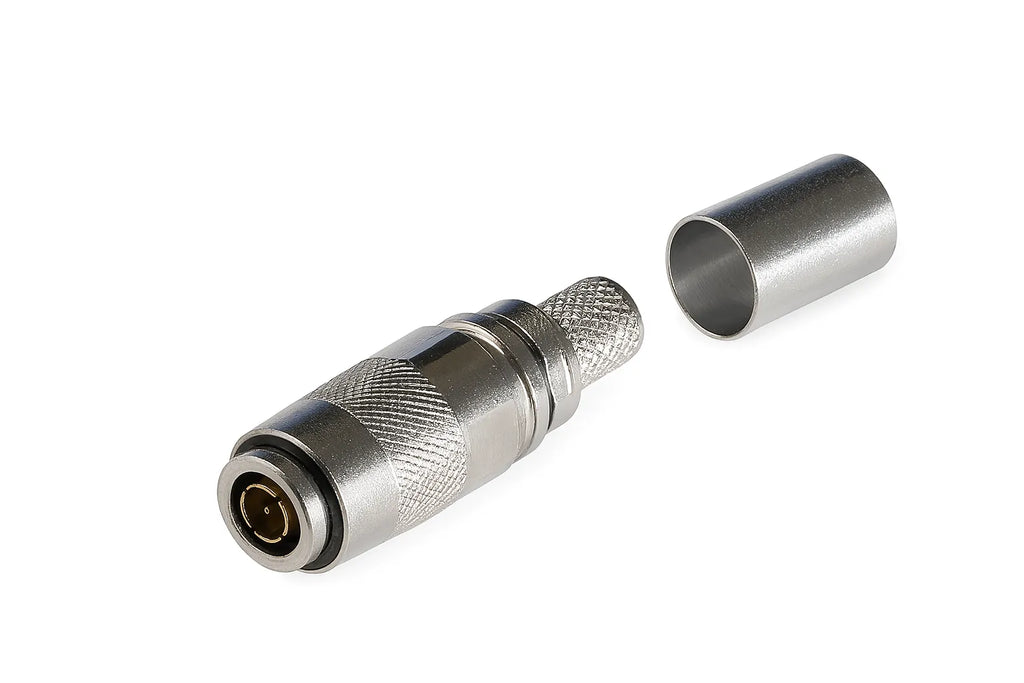

The Times Microwave EZ-240-1023M-X is a 1.0/2.3 Male straight RF connector designed for LMR-240 and TCOM-240 coaxial cable. Its compact 1.0/2.3 interface is well suited for RF cable assemblies where equipment space and connector density are important.
The EZ-240-1023M-X is a 50 Ohm connector operating from DC to 6 GHz. It uses a spring-finger inner contact and crimp outer contact, eliminating soldering and simplifying field termination. The connector also uses a no-braid-trim EZ design for consistent cable preparation and assembly.
Key Specifications
- Manufacturer: Times Microwave Systems
- Part Number: EZ-240-1023M-X
- Times Microwave Stock Code: 3190-6283
- Connector Type: 1.0/2.3 Male RF Connector
- Body Style: Straight
- Cable Size: 240 Series
- Impedance: 50 Ohm
- Operating Frequency: DC to 6 GHz
- VSWR: 1.30 typical
- Insertion Loss: 0.05 x √F(GHz)
- Inner Contact Attachment: Spring Finger
- Outer Contact Attachment: Crimp
- Coupling Style: Knurled
- Installation: Non-solder, no-braid-trim EZ termination
- Standard Crimp Die: 0.255 inch hex
- Pull Strength: 31.35 kgf
- IP Rating: IP67 when mated
- Body Material: Brass
- Body Finish: Albaloy
- Center Pin / Finger: Beryllium copper / phosphor bronze
- Contact Finish: Gold
- Insulator: PTFE
- Ferrule: Copper with nickel plating
- Gasket: Silicone rubber
- Compatible Standards: DIN 47297 / DIN 41626
- Approx. Length: 1.54 in / 39.2 mm
- Approx. Width: 0.37 in / 9.5 mm
- Approx. Weight: 0.01 lb / 6.7 g
- Condition: New in factory packaging / OEM surplus
Compatible RF Cable Types
- Times Microwave LMR-240
- Times Microwave TCOM-240
Common Applications
- DAS and in-building wireless systems
- Cellular and wireless infrastructure
- RF test and measurement systems
- SCADA and telemetry systems
- RFID systems
- Antenna systems
- Telecom equipment
- Compact and high-density RF cable assemblies
Please Note: Please confirm compatibility with your exact cable type and installation requirements before purchase. This listing is for the EZ-240-1023M-X 1.0/2.3 Male straight connector.
