Description

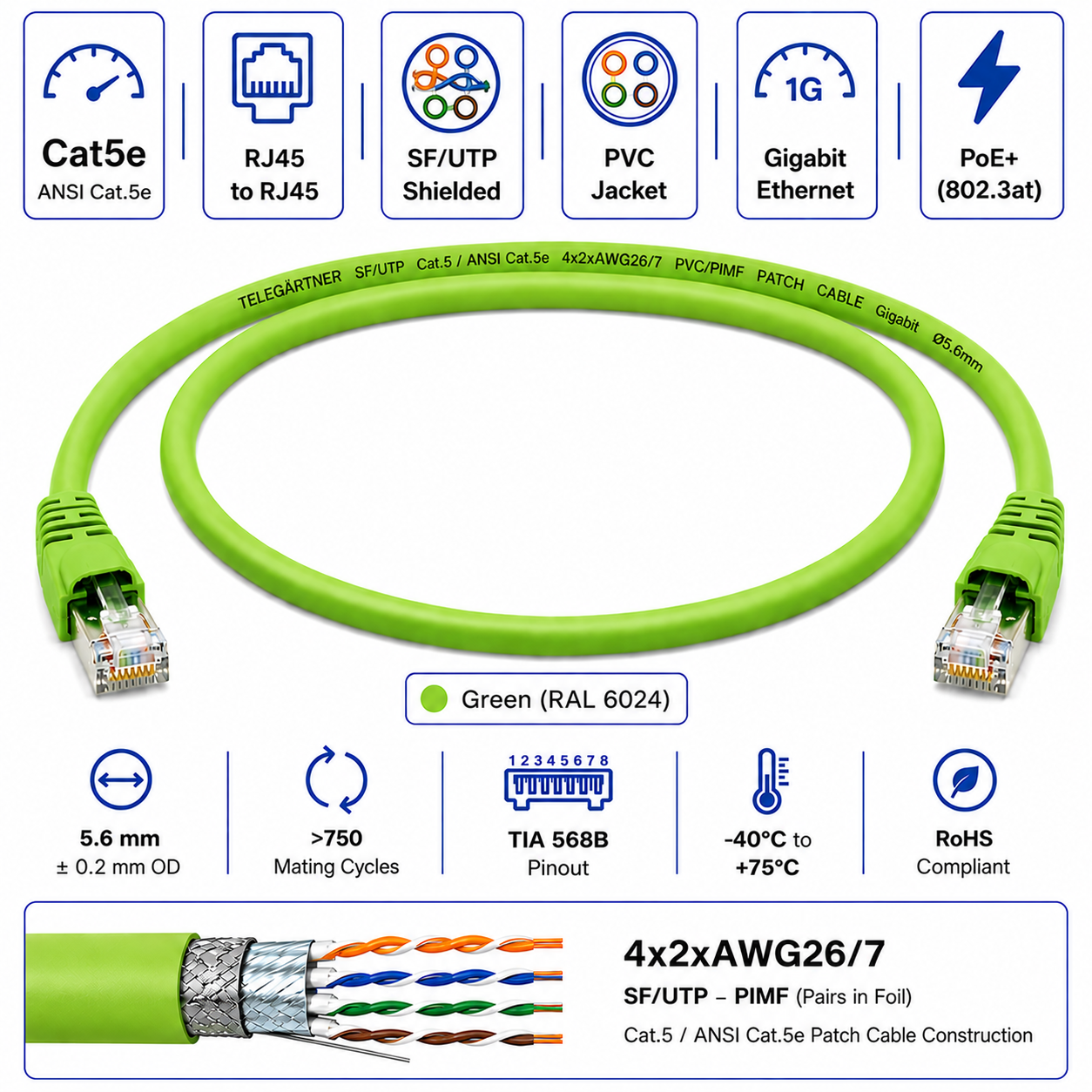

The Telegärtner Cat5 RJ45 SF/UTP Shielded PVC Ethernet Patch Cord is a high-performance RJ45-to-RJ45 network patch cord designed for reliable Ethernet and structured cabling connections. It features SF/UTP shielding, a PVC outer jacket, overmolded strain relief, 1:1 wiring, and TIA 568B pin assignment.
Designed for Cat5 / Class D transmission performance, this patch cord supports Gigabit Ethernet and PoE+ applications. The green cable is identified in the Telegärtner part-number table as RAL 6024 and uses a LI-2Y(ST)CY 4x2x0.48 PVC construction with 4x2xAWG26/7 conductors and a nominal outside diameter of 5.6 mm ± 0.2 mm. Available in select lengths from 1 m to 15 m, with each length carrying its corresponding Telegärtner manufacturer part number.
Key Specifications
- Manufacturer: Telegärtner
- Product Type: Ethernet Patch Cord
- Connector Type: RJ45 to RJ45
- Wiring: 1:1
- Category: Cat5 per ISO/IEC 11801-1; Cat5e per ANSI/TIA-568.2-D
- Transmission Class: Class D
- Pin Assignment: TIA 568B
- Shielding: SF/UTP
- Cable Construction: LI-2Y(ST)CY 4x2x0.48 PVC
- Conductor Size: 4x2xAWG26/7
- Outer Jacket: PVC
- Cable Diameter: 5.6 mm ± 0.2 mm
- Strain Relief: Overmolded
- Color: Green
- RAL Color: RAL 6024
- Available Lengths: Select lengths from 1 m to 15 m
- Ethernet Performance: Gigabit Ethernet per IEEE 802.3
- Power over Ethernet: PoE+ per IEEE 802.3at
- Current Carrying Capacity: 1 A at 50°C
- Durability: More than 750 mating cycles
- Insertion Force: Less than 30 N
- Operating Temperature: -40°C to +75°C
- Particulate Ingress Protection: IP2X
- Water / Immersion Protection: IPX0
- Connector Standard: IEC 60603-7-51
- Cable Standard: IEC 61156-6 / DIN EN 50288-2-2
- Flame Test: IEC 60332-1
- RoHS: RoHS Compliant
- Quantity: 1 Patch Cord
Typical Applications
- Cat5 and Cat5e Ethernet network connections
- Gigabit Ethernet networks
- Industrial Ethernet installations
- Factory and automation networks
- Industrial control systems
- Structured cabling systems
- Network switches, routers, and patch panels
- PoE+ powered network devices
Please Note: Cable length is selected from the available product variants. Each length has its own corresponding Telegärtner manufacturer part number. Please verify the required length before ordering.
