Description

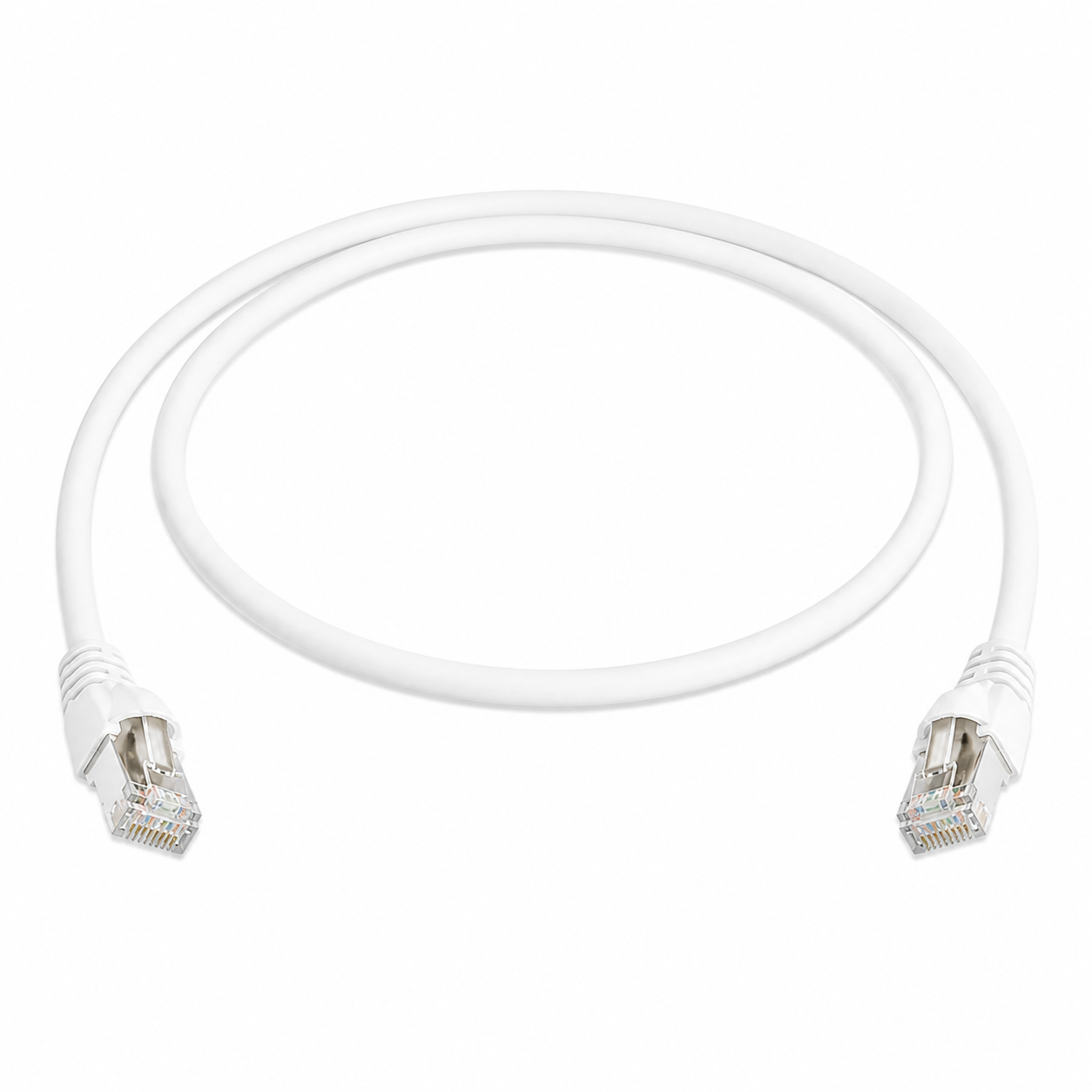

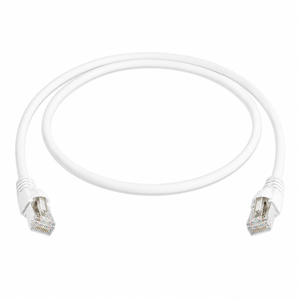

The Telegärtner Cat6A RJ45 S/FTP Shielded LSZH Ethernet Patch Cord is a high-performance RJ45-to-RJ45 network patch cord designed for reliable data transmission in Ethernet and structured cabling installations. It features S/FTP shielding, an LSZH outer jacket, overmolded strain relief, 1:1 wiring, and TIA 568B pin assignment.
Designed for Cat6A / Class EA transmission performance, this patch cord supports 10 Gigabit Ethernet and is suitable for PoE+ and 4 Pair Power over Ethernet (4PPoE) applications. The white cable is RAL 9003 Signal White and uses a 4x2xAWG27/7 cable construction with a nominal outside diameter of 5.8 mm ± 0.3 mm. Available in select lengths from 0.25 m to 10 m, with each length carrying its corresponding Telegärtner manufacturer part number.

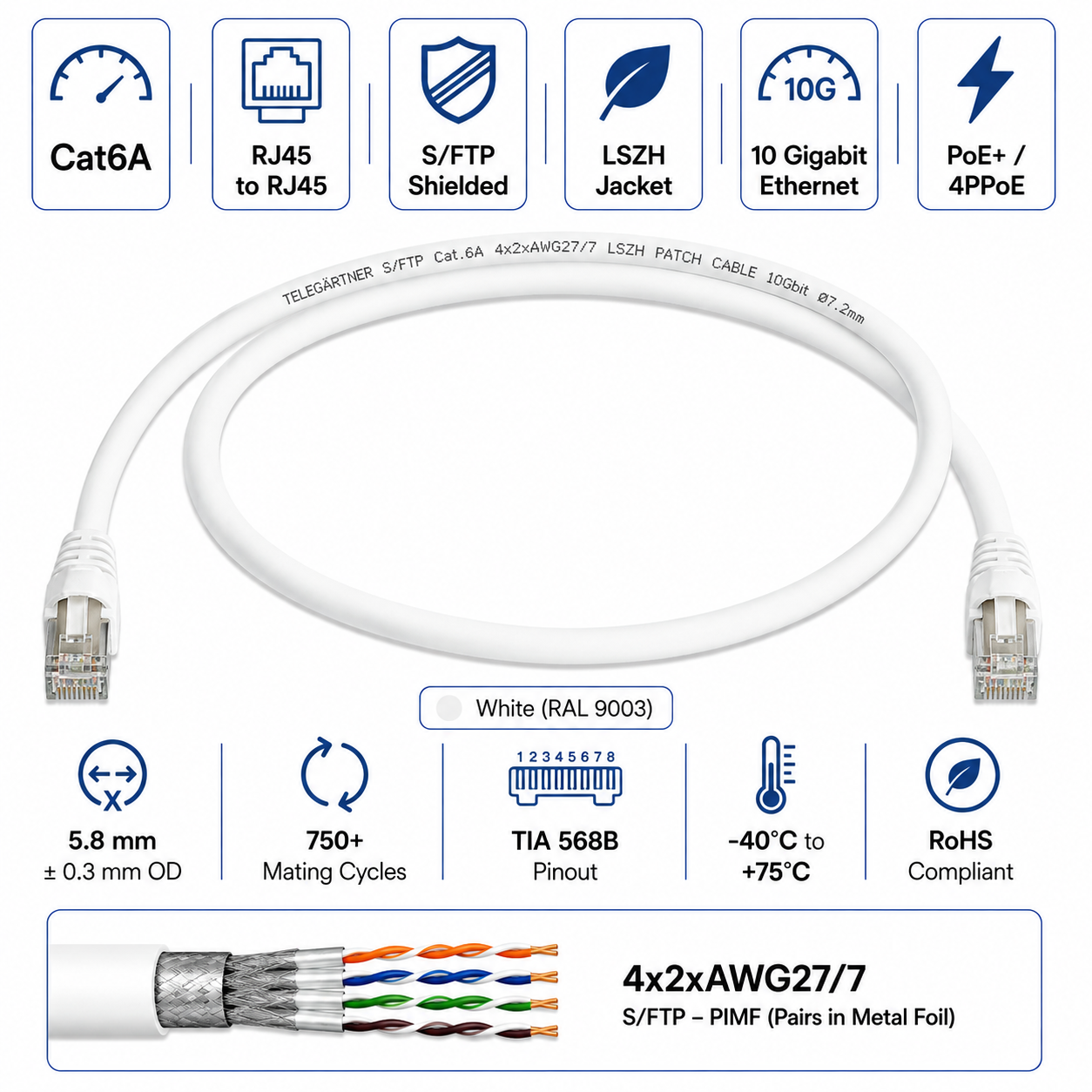

Key Specifications
- Manufacturer: Telegärtner
- Product Type: Ethernet Patch Cord
- Connector Type: RJ45 to RJ45
- Wiring: 1:1
- Category: Cat6A
- Transmission Class: Class EA
- Pin Assignment: TIA 568B
- Shielding: S/FTP
- Cable Construction: 4x2xAWG27/7
- Outer Jacket: LSZH
- Cable Diameter: 5.8 mm ± 0.3 mm
- Strain Relief: Overmolded
- Color: White
- RAL Color: RAL 9003 Signal White
- Available Lengths: Select lengths from 0.25 m to 10 m
- Ethernet Performance: 10 Gigabit Ethernet per IEEE 802.3an
- Power over Ethernet: PoE+ per IEEE 802.3at and 4PPoE per IEEE 802.3bt
- Current Carrying Capacity: 1 A at 50°C
- Durability: More than 750 mating cycles
- Insertion Force: Less than 30 N
- Operating Temperature: -40°C to +75°C
- Particulate Ingress Protection: IP2X
- Water / Immersion Protection: IPX0
- Connector Standard: IEC 60603-7-51
- RoHS: RoHS Compliant
- GHMT: Premium Verification Program (PVP)
- UL Listed: E244889
- Quantity: 1 Patch Cord
Typical Applications
- Cat6A Ethernet network connections
- 10 Gigabit Ethernet networks
- Data center patching
- Office and enterprise networks
- Structured cabling systems
- Network switches, routers, and patch panels
- PoE+ and 4PPoE powered network devices
Please Note: Cable length is selected from the available product variants. Each length has its own corresponding Telegärtner manufacturer part number. Please verify the required length before ordering.
