Description

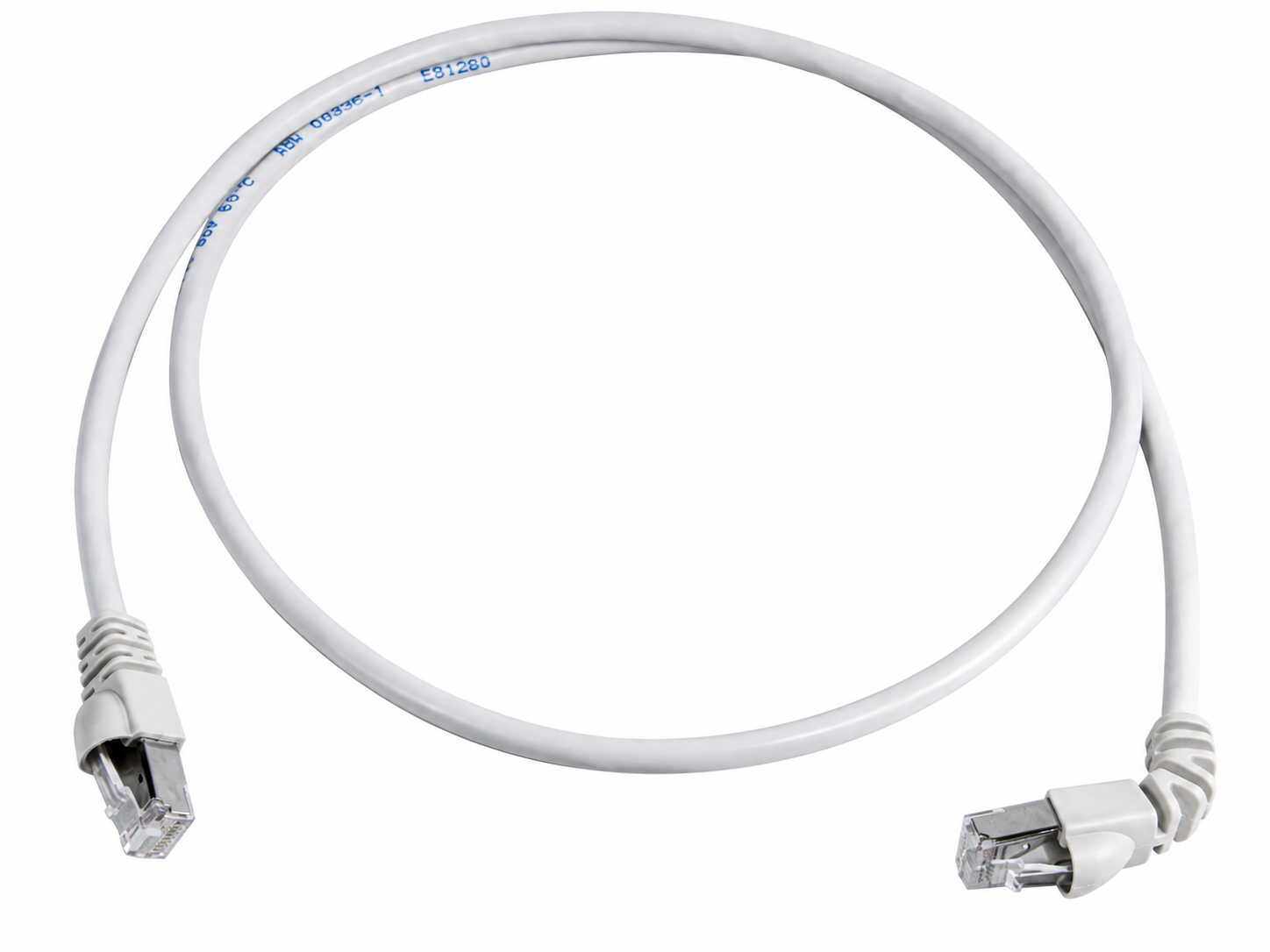

The Telegärtner Cat6A RJ45 S/FTP Shielded LSZH 90° to Straight Ethernet Patch Cord is a high-performance RJ45-to-RJ45 network patch cord featuring one 90° angled RJ45 connector and one straight 180° RJ45 connector. This connector configuration is useful for installations where cable routing space is limited or a conventional straight connector would create excessive cable bend.

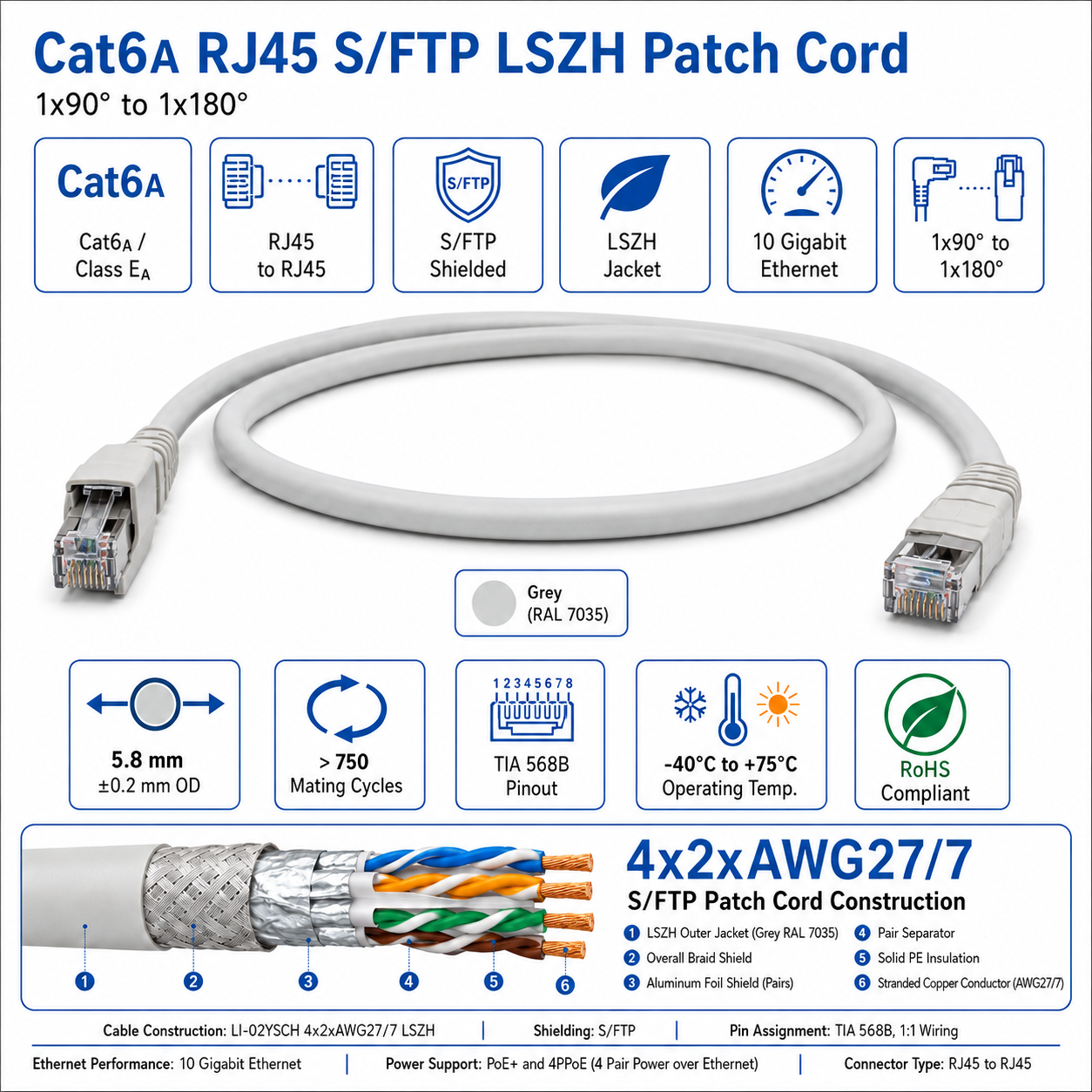

Designed for Cat6A / Class EA transmission performance, the patch cord supports 10 Gigabit Ethernet, PoE+, and 4 Pair Power over Ethernet (4PPoE). It features S/FTP shielding, an LSZH outer jacket, overmolded strain relief, 1:1 wiring, and TIA 568B pin assignment. The grey cable is RAL 7035 and uses a 4x2xAWG27/7 construction with a nominal outside diameter of 5.8 mm ± 0.2 mm. Available in select lengths from 0.25 m to 15 m, with each length carrying its corresponding Telegärtner manufacturer part number.
Key Specifications
- Manufacturer: Telegärtner
- Product Type: Ethernet Patch Cord
- Connector Type: RJ45 to RJ45
- Connector Configuration: 1x 90° RJ45 to 1x Straight 180° RJ45
- Wiring: 1:1
- Category: Cat6A
- Transmission Class: Class EA
- Pin Assignment: TIA 568B
- Shielding: S/FTP
- Cable Construction: LI-02YSCH 4x2xAWG27/7 LSZH
- Outer Jacket: LSZH
- Cable Diameter: 5.8 mm ± 0.2 mm
- Strain Relief: Overmolded
- Color: Grey
- RAL Color: RAL 7035
- Available Lengths: Select lengths from 0.25 m to 15 m
- Ethernet Performance: 10 Gigabit Ethernet per IEEE 802.3an
- Power over Ethernet: PoE+ per IEEE 802.3at and 4PPoE per IEEE 802.3bt
- Current Carrying Capacity: 1 A at 50°C
- Durability: More than 750 mating cycles
- Insertion Force: Less than 30 N
- Operating Temperature: -40°C to +75°C
- Particulate Ingress Protection: IP2X
- Water / Immersion Protection: IPX0
- Connector Standard: IEC 60603-7-51
- RoHS: RoHS Compliant
- GHMT: Premium Verification Program (PVP)
- UL Listed: E244889
- Quantity: 1 Patch Cord
Typical Applications
- Cat6A Ethernet network connections
- 10 Gigabit Ethernet networks
- Space-constrained network installations
- Equipment racks and cabinets
- Data center patching
- Office and enterprise networks
- Structured cabling systems
- Network switches, routers, and patch panels
- PoE+ and 4PPoE powered network devices
Please Note: This patch cord has one 90° angled RJ45 connector and one straight RJ45 connector. Cable length is selected from the available product variants, and each length has its own corresponding Telegärtner manufacturer part number. Please verify the required length and connector orientation before ordering.
