Description

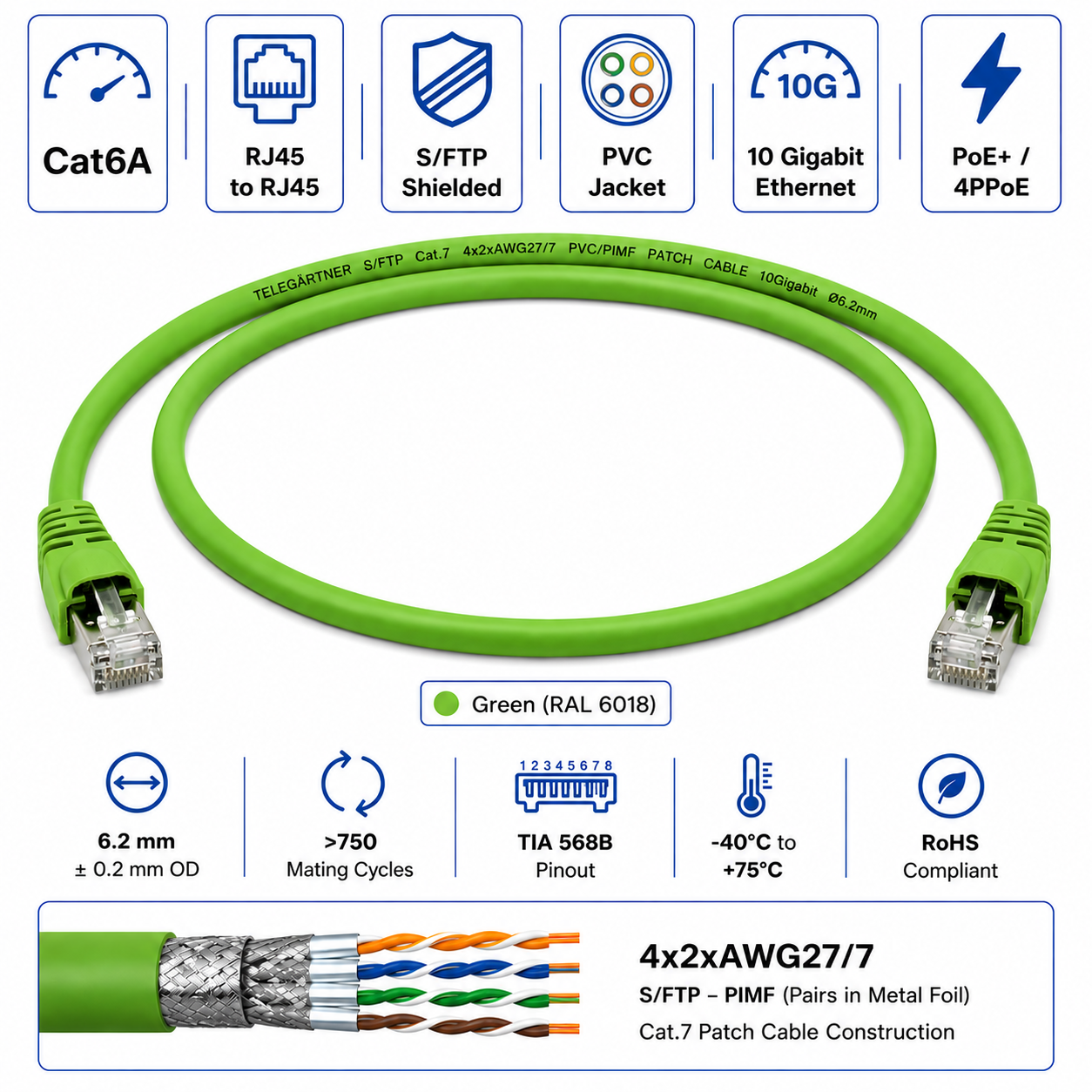

The Telegärtner Cat6A RJ45 S/FTP Shielded PVC Ethernet Patch Cord is a high-performance RJ45-to-RJ45 industrial network patch cord designed for reliable data transmission in Ethernet and structured cabling installations. It features S/FTP shielding, a durable PVC outer jacket, overmolded strain relief, 1:1 wiring, and EIA/TIA 568B pin assignment.
Designed for Cat6A / Class EA transmission performance, this patch cord supports 10 Gigabit Ethernet and is suitable for PoE+ and 4 Pair Power over Ethernet (4PPoE) applications. The green cable is RAL 6018 Yellow Green and uses a LI02YSCY PVC 4x2xAWG27/7 PiMF cable construction with a nominal outside diameter of 6.2 mm ± 0.2 mm. Available in select lengths from 1 m to 15 m, with each length carrying its corresponding Telegärtner manufacturer part number.
Key Specifications
- Manufacturer: Telegärtner
- Product Type: Industrial Ethernet Patch Cord
- Connector Type: RJ45 to RJ45
- Connector Configuration: Straight to Straight
- Wiring: 1:1
- Category: Cat6A
- Transmission Class: Class EA
- Pin Assignment: EIA/TIA 568B
- Shielding: S/FTP
- Cable Construction: LI02YSCY PVC 4x2xAWG27/7 PiMF
- Outer Jacket: PVC
- Cable Diameter: 6.2 mm ± 0.2 mm
- Strain Relief: Overmolded
- Color: Green
- RAL Color: RAL 6018 Yellow Green
- Available Lengths: Select lengths from 1 m to 15 m
- Ethernet Performance: 10 Gigabit Ethernet per IEEE 802.3an
- Power over Ethernet: PoE+ per IEEE 802.3at and 4PPoE per IEEE 802.3bt
- Current Carrying Capacity: 1 A at 50°C
- Durability: At least 750 mating cycles
- Insertion Force: 30 N maximum
- Operating Temperature: -40°C to +75°C
- Particulate Ingress Protection: IP2X
- Water / Immersion Protection: IPX0
- Connector Standard: IEC 60603-7-51
- Flame Test: IEC 60332-1
- Quantity: 1 Patch Cord
Typical Applications
- Industrial Ethernet network connections
- Cat6A Ethernet installations
- 10 Gigabit Ethernet networks
- Factory and automation networks
- Equipment racks and control cabinets
- Data center patching
- Structured cabling systems
- Network switches, routers, and patch panels
- PoE+ and 4PPoE powered network devices
Please Note: Cable length is selected from the available product variants. Each length has its own corresponding Telegärtner manufacturer part number. Please verify the required length before ordering.
