Description

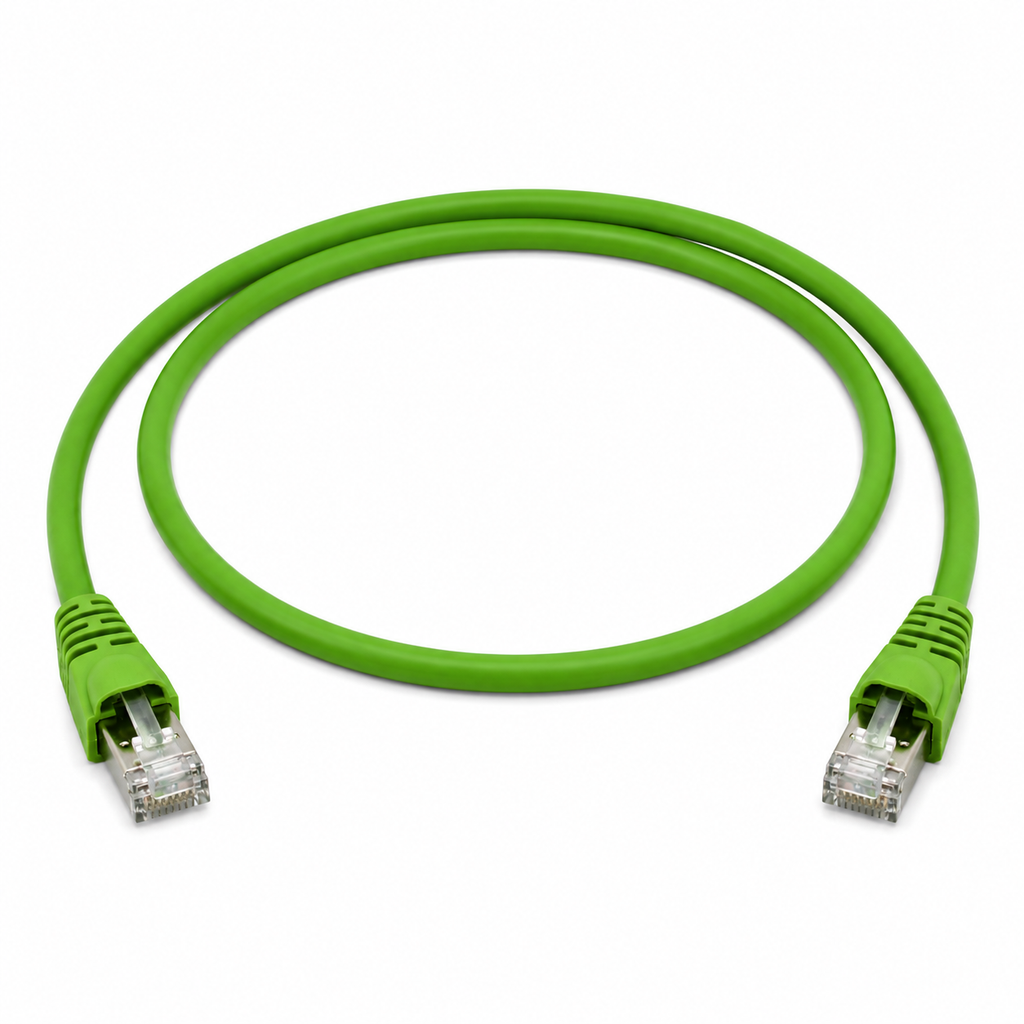

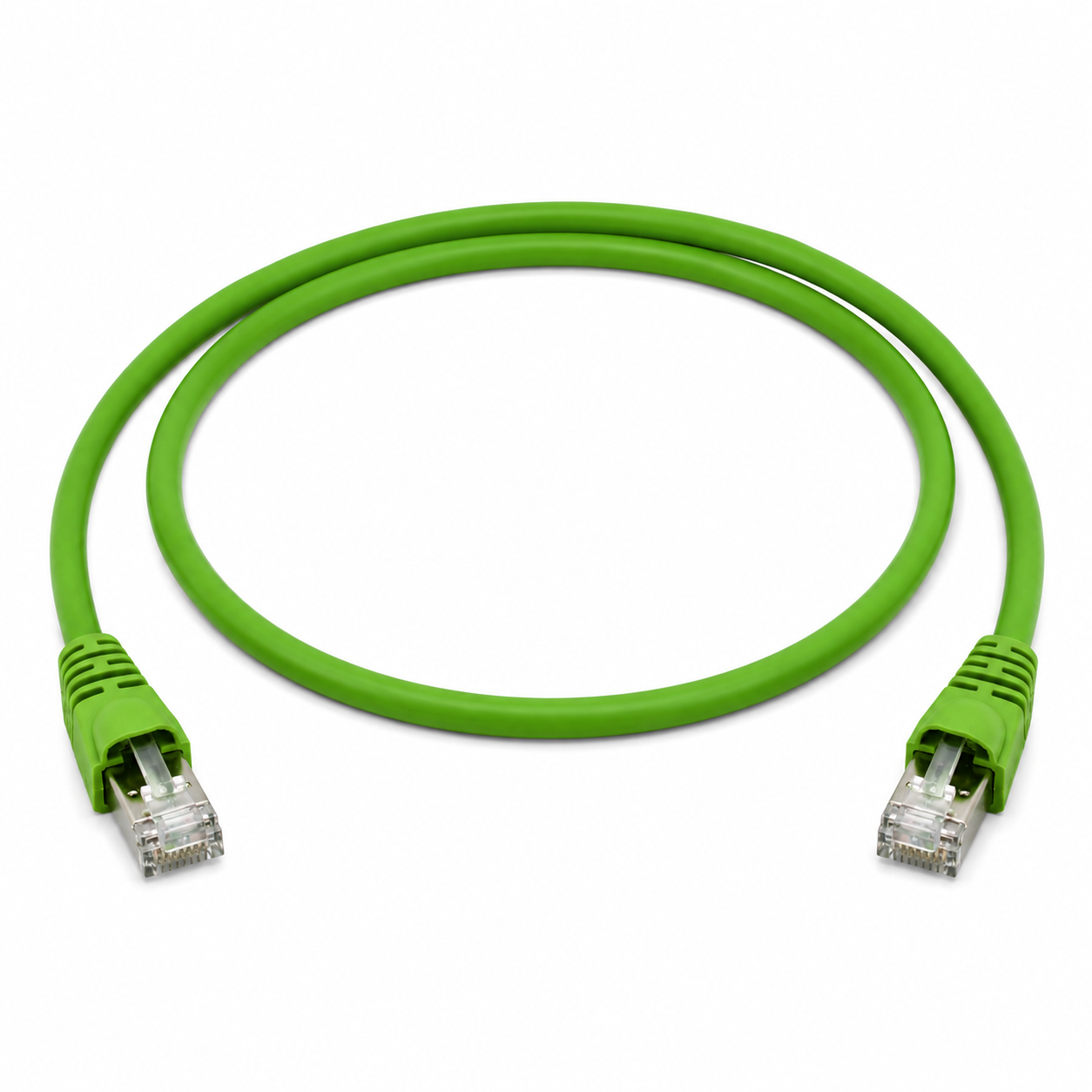

The Telegärtner Cat5 RJ45 SF/UTP Shielded PUR Ethernet Patch Cord is a high-performance RJ45-to-RJ45 industrial network patch cord designed for reliable Ethernet and structured cabling connections. It features SF/UTP shielding, a durable PUR outer jacket, overmolded strain relief, 1:1 wiring, and EIA/TIA 568B pin assignment.
Designed for Cat5 Ethernet transmission, this patch cord supports Gigabit Ethernet and PoE+ applications. The green cable is RAL 6018 Yellow Green and uses a LI-2Y(ST)C11Y 4x2x0.48 PUR construction with 4x2xAWG26/7 conductors and a nominal outside diameter of 5.8 mm ± 0.2 mm. Available in select lengths from 0.25 m to 15 m, with each length carrying its corresponding Telegärtner manufacturer part number.

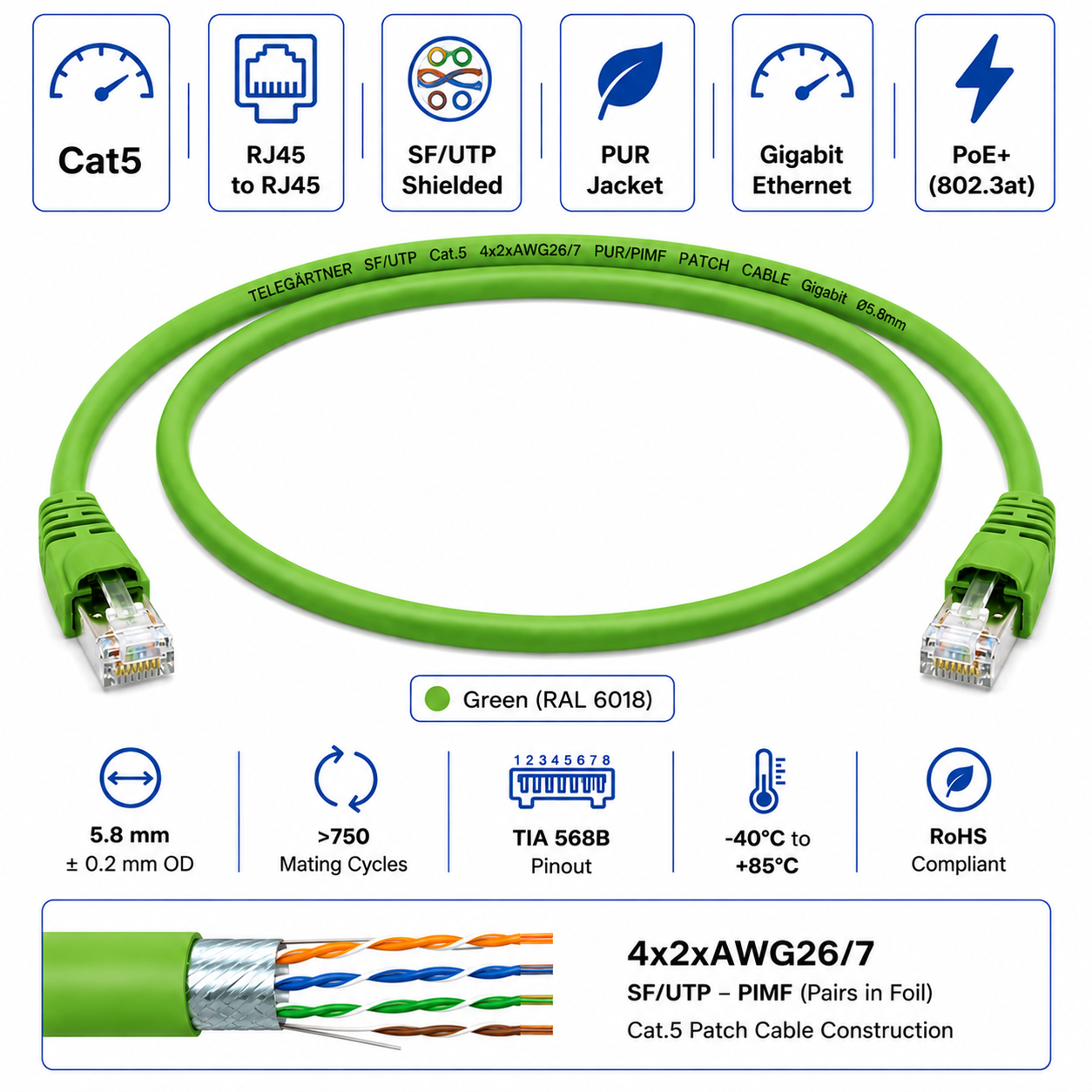

Key Specifications
- Manufacturer: Telegärtner
- Product Type: Industrial Ethernet Patch Cord
- Connector Type: RJ45 to RJ45
- Wiring: 1:1
- Category: Cat5
- Pin Assignment: EIA/TIA 568B
- Shielding: SF/UTP
- Cable Construction: LI-2Y(ST)C11Y 4x2x0.48 PUR
- Conductor Size: 4x2xAWG26/7
- Outer Jacket: PUR
- Cable Diameter: 5.8 mm ± 0.2 mm
- Strain Relief: Overmolded PUR
- Color: Green
- RAL Color: RAL 6018 Yellow Green
- Available Lengths: Select lengths from 0.25 m to 15 m
- Ethernet Performance: Gigabit Ethernet per IEEE 802.3
- Power over Ethernet: PoE+ per IEEE 802.3at
- Current Carrying Capacity: 1 A at 50°C
- Durability: More than 750 mating cycles
- Insertion Force: Less than 30 N
- Operating Temperature: -40°C to +85°C
- Particulate Ingress Protection: IP2X
- Water / Immersion Protection: IPX0
- Connector Standard: IEC 60603-7-51
- Flame Test: IEC 60332-1
- RoHS: RoHS Compliant
- UL Listed: E244889
- Quantity: 1 Patch Cord
Typical Applications
- Cat5 Ethernet network connections
- Gigabit Ethernet networks
- Industrial Ethernet installations
- Factory and automation networks
- Control cabinets and industrial equipment
- Structured cabling systems
- Network switches, routers, and patch panels
- PoE+ powered network devices
- Industrial control and communication equipment
Please Note: Cable length is selected from the available product variants. Each length has its own corresponding Telegärtner manufacturer part number. Please verify the required length before ordering.
