Description

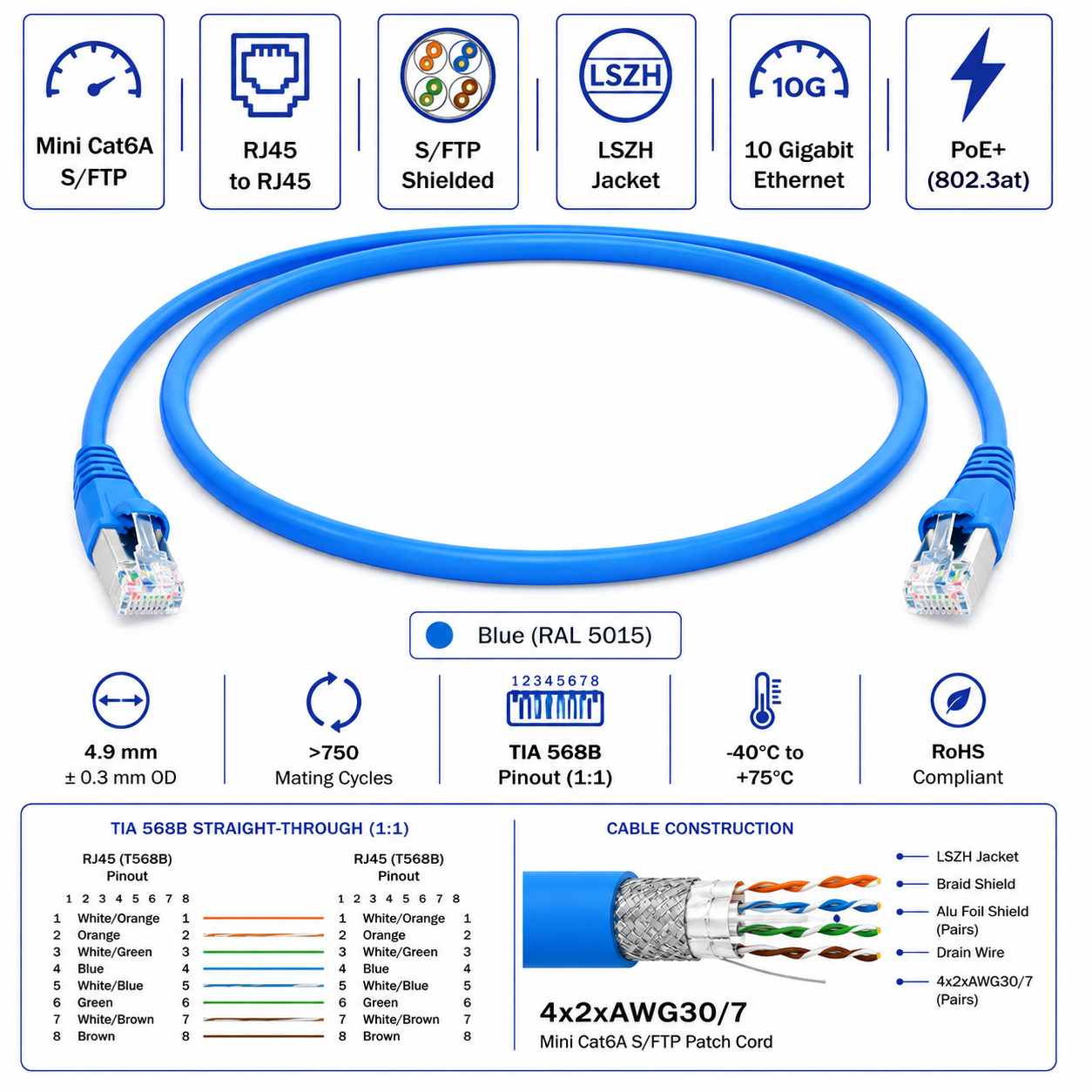

The Telegärtner Cat6A Mini RJ45 S/FTP Shielded LSZH Ethernet Patch Cord is a compact, high-performance RJ45-to-RJ45 network patch cord designed for reliable data transmission where reduced cable diameter and flexible routing are beneficial. It features S/FTP shielding, an LSZH outer jacket, overmolded strain relief, 1:1 wiring, and TIA 568B pin assignment.
Designed for Cat6A / Class EA transmission performance, this mini patch cord supports 10 Gigabit Ethernet and PoE+ applications. The blue cable is RAL 5015 and uses a LI-02YSCH 4x2xAWG30/7 LSZH construction with a compact nominal outside diameter of 4.9 mm ± 0.3 mm. Available in select lengths from 0.5 m to 10 m, with each length carrying its corresponding Telegärtner manufacturer part number.
Key Specifications
- Manufacturer: Telegärtner
- Product Type: Mini Ethernet Patch Cord
- Connector Type: RJ45 to RJ45
- Wiring: Straight-Through 1:1
- Category: Cat6A
- Transmission Class: Class EA
- Pin Assignment: TIA 568B
- Shielding: S/FTP
- Cable Construction: LI-02YSCH 4x2xAWG30/7 LSZH
- Outer Jacket: LSZH
- Cable Diameter: 4.9 mm ± 0.3 mm
- Strain Relief: Overmolded PVC UL94 V0
- Color: Blue
- RAL Color: RAL 5015
- Available Lengths: Select lengths from 0.5 m to 10 m
- Ethernet Performance: 10 Gigabit Ethernet per IEEE 802.3an
- Power over Ethernet: PoE+ per IEEE 802.3at
- Current Carrying Capacity: 1 A at 50°C
- Durability: More than 750 mating cycles
- Insertion Force: Less than 30 N
- Operating Temperature: -40°C to +75°C
- Particulate Ingress Protection: IP2X
- Water / Immersion Protection: IPX0
- Connector Standard: IEC 60603-7-51
- Cable Standards: IEC 61156-6 / DIN EN 50288-4-2
- Cable Rating: c(UL)us CM
- RoHS: RoHS Compliant
- UL Listed: E244889
- Quantity: 1 Patch Cord
Typical Applications
- Cat6A Ethernet network connections
- 10 Gigabit Ethernet networks
- High-density network installations
- Data center patching
- Server racks and network cabinets
- Space-constrained structured cabling
- Network switches, routers, and patch panels
- PoE+ powered network devices
Please Note: Cable length is selected from the available product variants. Each length has its own corresponding Telegärtner manufacturer part number. Please verify the required length before ordering.
