Description

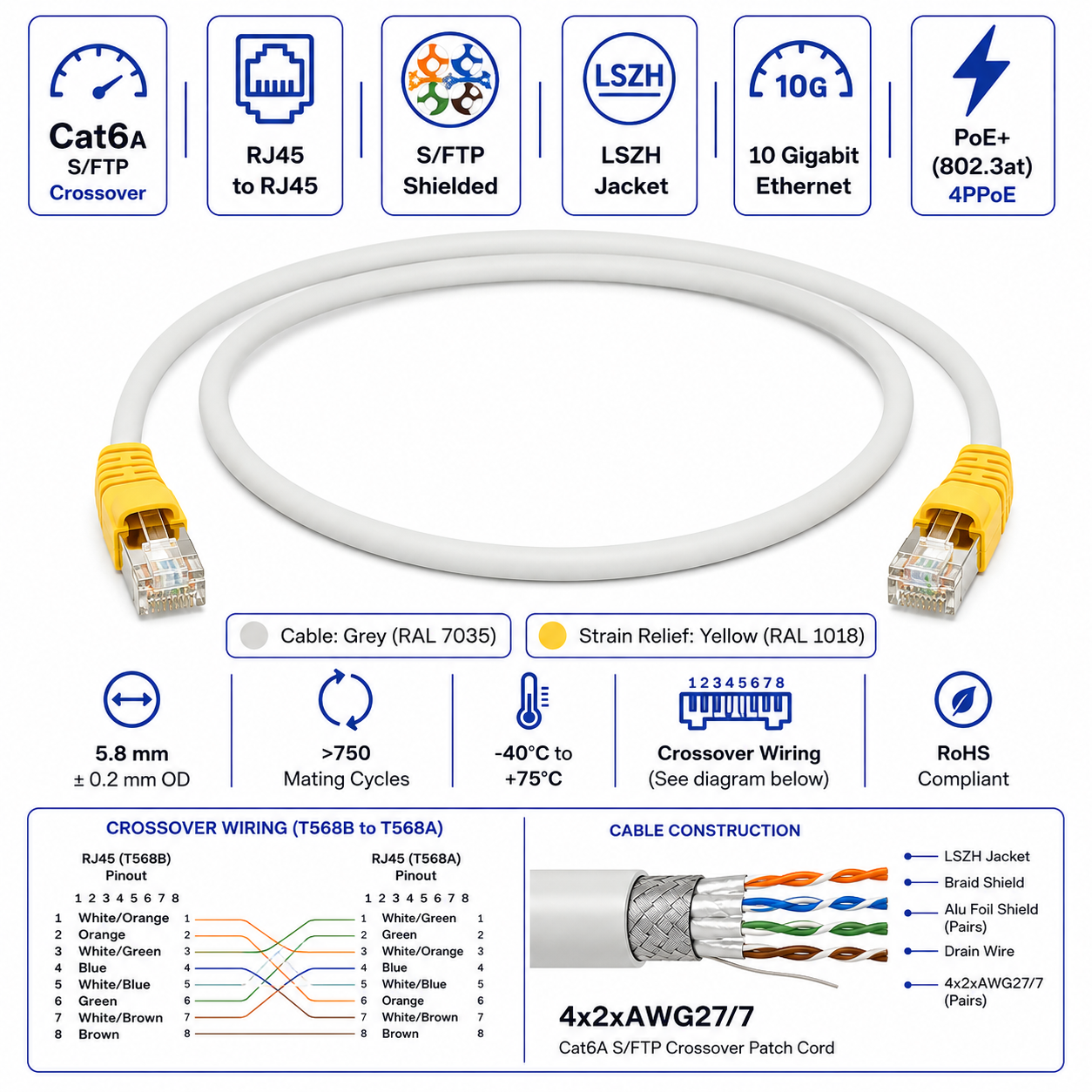

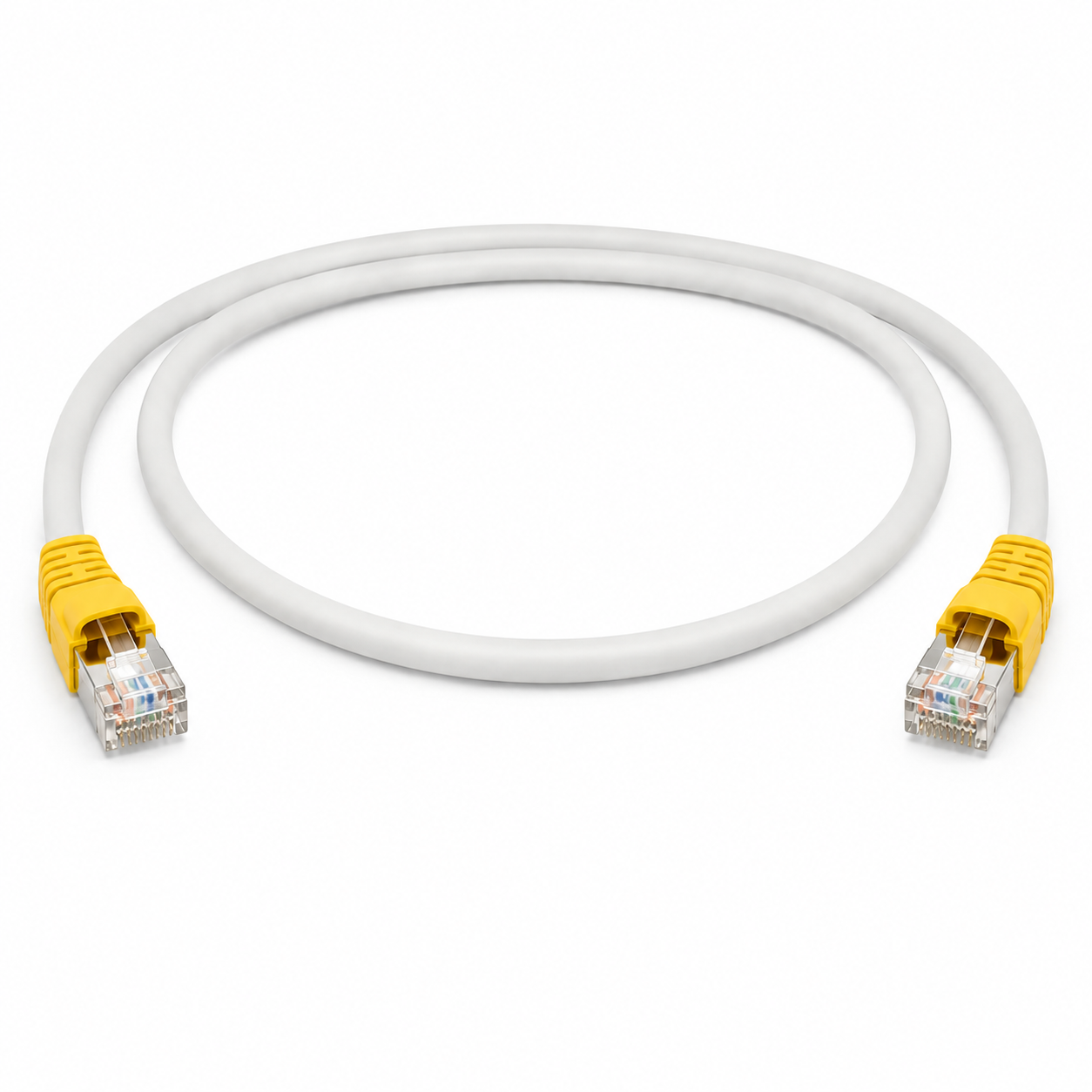

The Telegärtner Cat6A RJ45 S/FTP Shielded LSZH Crossover Ethernet Patch Cord is a high-performance RJ45-to-RJ45 crossover patch cord designed for Ethernet connections requiring a crossover wiring configuration. It features S/FTP shielding, an LSZH outer jacket, overmolded strain relief, and a dedicated crossover connection scheme.
Designed for Cat6A / Class EA transmission performance, this crossover patch cord supports 10 Gigabit Ethernet, PoE+, and 4 Pair Power over Ethernet (4PPoE). The cable jacket is Grey RAL 7035 with Yellow RAL 1018 strain relief and uses a LI-02YSCH 4x2xAWG27/7 LSZH construction with a nominal outside diameter of 5.8 mm ± 0.2 mm. Available in select lengths from 0.5 m to 10 m, with each length carrying its corresponding Telegärtner manufacturer part number.
Key Specifications
- Manufacturer: Telegärtner
- Product Type: Ethernet Crossover Patch Cord
- Connector Type: RJ45 to RJ45
- Wiring: Crossover
- Category: Cat6A
- Transmission Class: Class EA
- Shielding: S/FTP
- Cable Construction: LI-02YSCH 4x2xAWG27/7 LSZH
- Outer Jacket: LSZH
- Cable Diameter: 5.8 mm ± 0.2 mm
- Strain Relief: Overmolded PVC UL94 V0
- Cable Color: Grey
- Cable RAL Color: RAL 7035
- Strain Relief Color: Yellow
- Strain Relief RAL Color: RAL 1018
- Available Lengths: Select lengths from 0.5 m to 10 m
- Ethernet Performance: 10 Gigabit Ethernet per IEEE 802.3an
- Power over Ethernet: PoE+ per IEEE 802.3at and 4PPoE per IEEE 802.3bt
- Current Carrying Capacity: 1 A at 50°C
- Durability: More than 750 mating cycles
- Insertion Force: Less than 30 N
- Operating Temperature: -40°C to +75°C
- Particulate Ingress Protection: IP2X
- Water / Immersion Protection: IPX0
- Connector Standard: IEC 60603-7-51
- Cable Standards: IEC 61156-6 / DIN EN 50288-4-2
- Flame Test: IEC 60332-1
- RoHS: RoHS Compliant
- GHMT: Premium Verification Program (PVP)
- UL Listed: E244889
- Quantity: 1 Patch Cord
Typical Applications
- Cat6A crossover Ethernet connections
- 10 Gigabit Ethernet networks
- Network equipment interconnections requiring crossover wiring
- Data center and equipment rack connections
- Industrial and enterprise Ethernet networks
- PoE+ and 4PPoE powered network applications
Please Note: This is a crossover-wired Ethernet patch cord, not a standard 1:1 patch cord. Cable length is selected from the available product variants, and each length has its own corresponding Telegärtner manufacturer part number. Please verify that crossover wiring is required for your application before ordering.
