Description

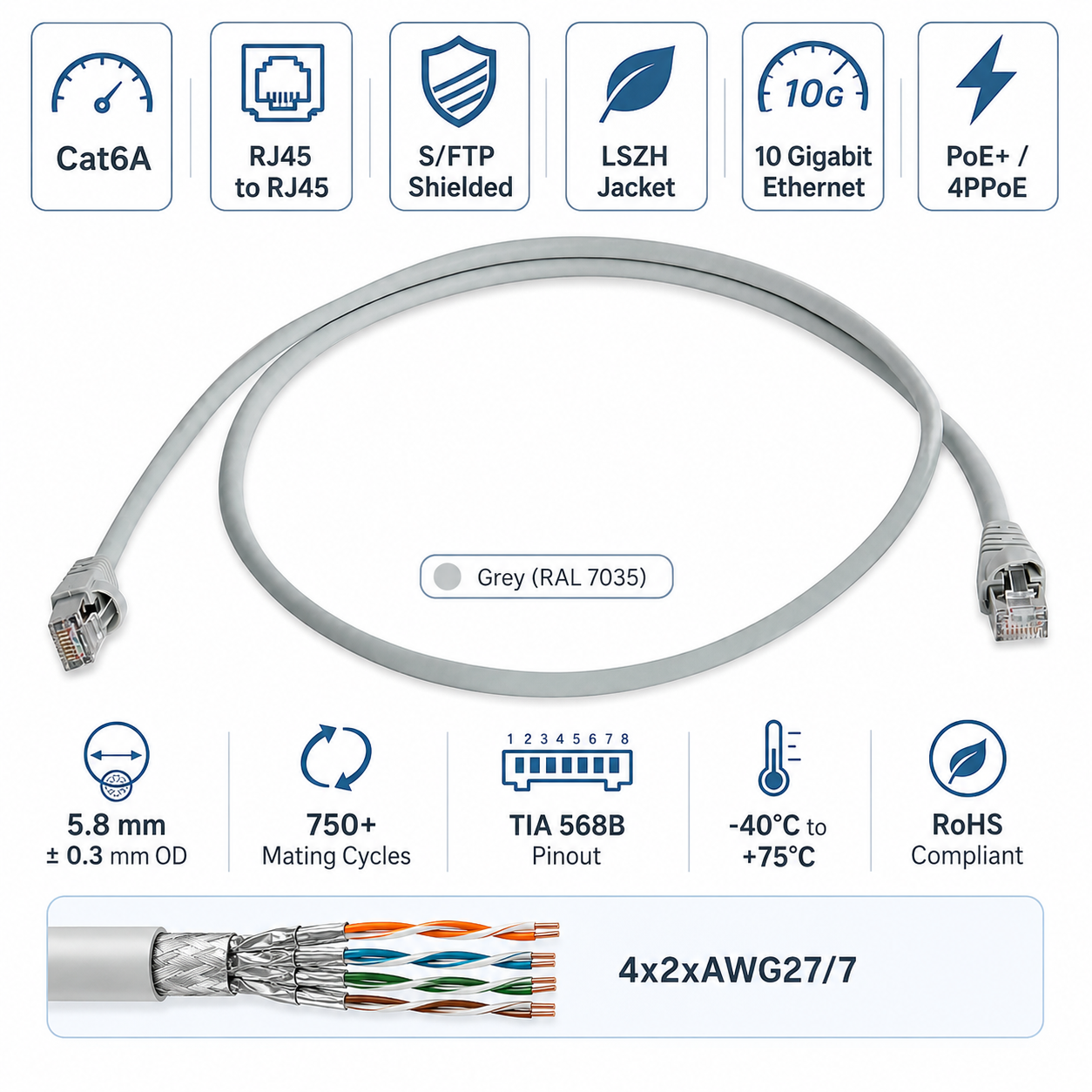

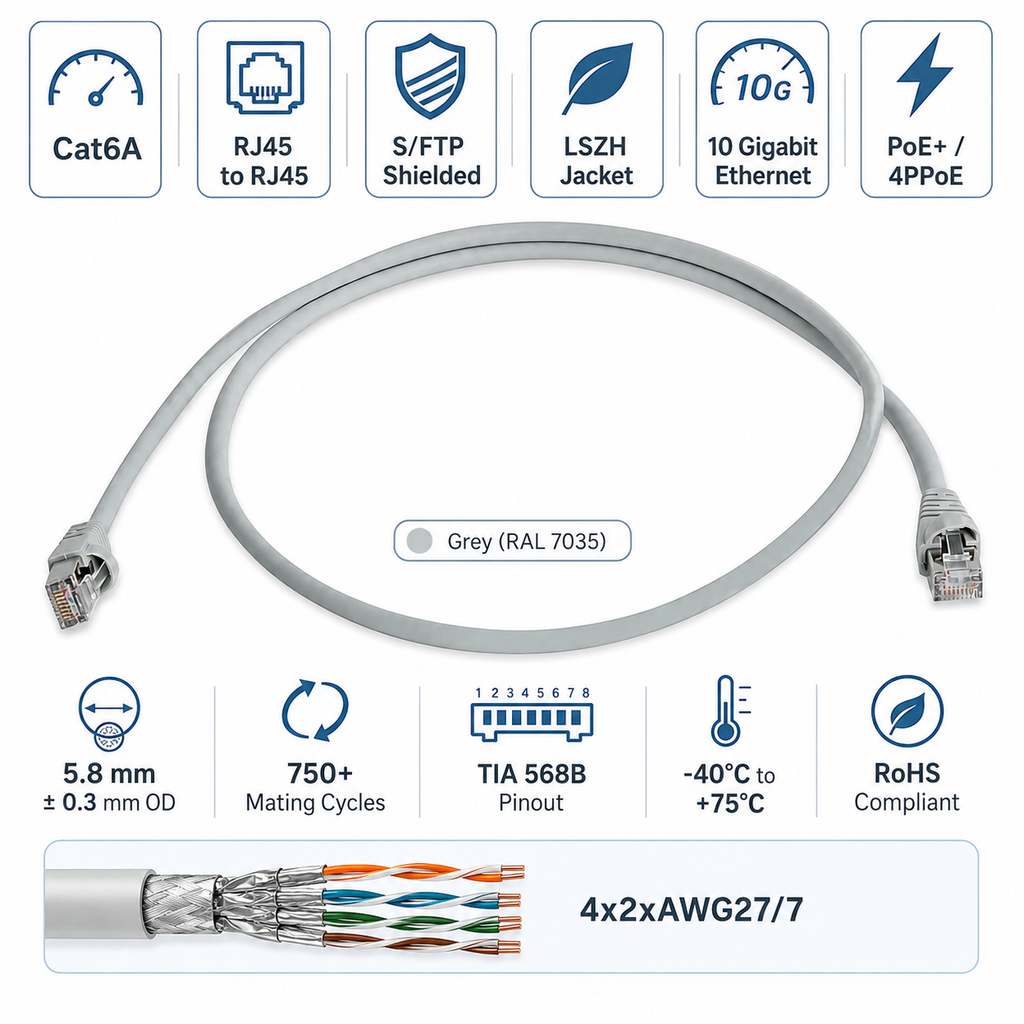

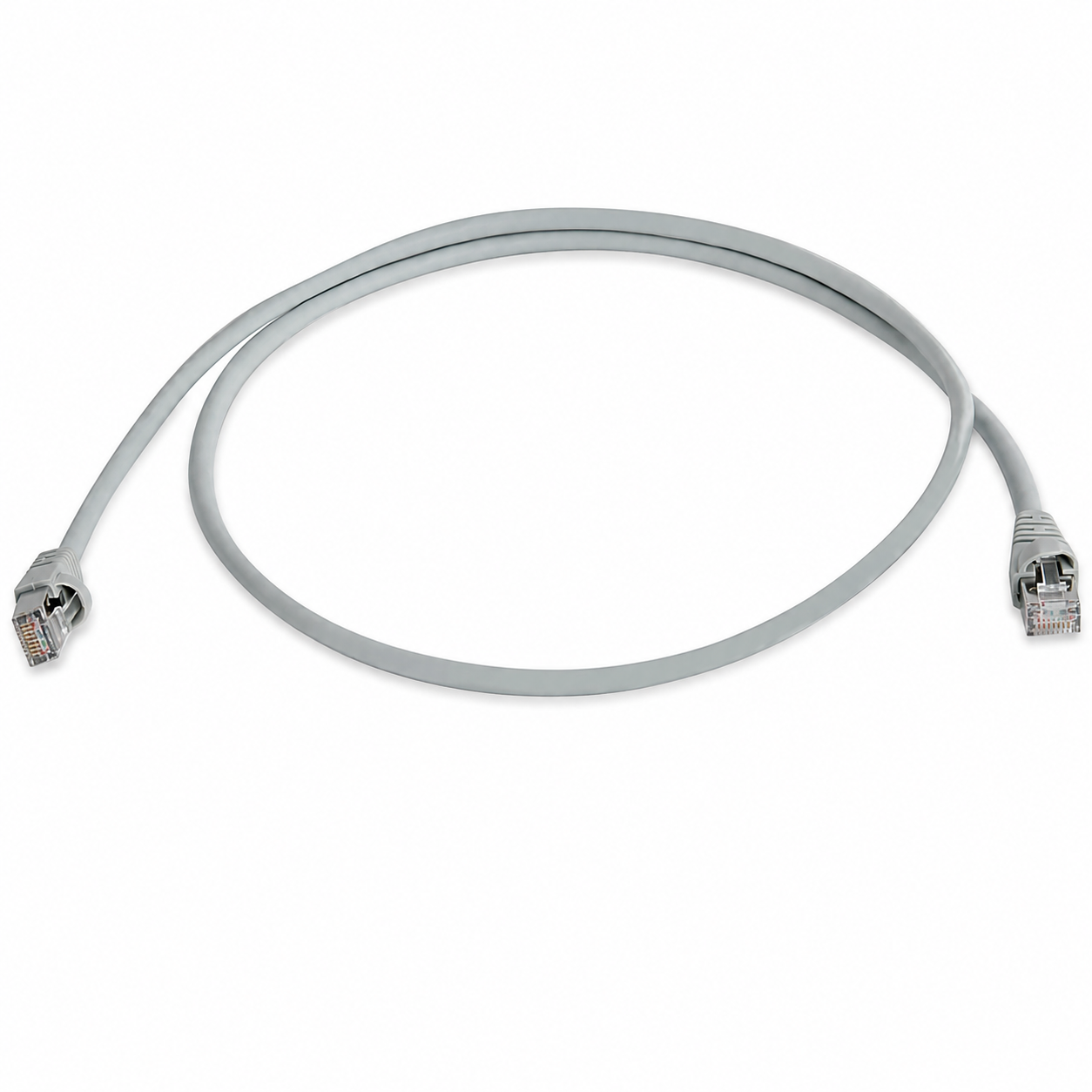

The Telegärtner Cat6A RJ45 S/FTP Shielded LSZH Ethernet Patch Cable is a high-performance RJ45-to-RJ45 network patch cord designed for reliable data transmission in Ethernet and structured cabling installations. The cable features S/FTP shielding, an LSZH outer jacket, overmoulded strain relief, and TIA 568B pin assignment.
Designed for Cat6A/Class EA transmission performance, this patch cable supports 10 Gigabit Ethernet and is suitable for PoE+ and 4 Pair Power over Ethernet applications. The grey RAL 7035 cable uses a 4x2xAWG27/7 construction with a nominal outside diameter of 5.8 mm. Available in select lengths from 0.25 m to 50 m, with each length carrying its corresponding Telegärtner manufacturer part number.
Key Specifications
- Manufacturer: Telegärtner
- Product Type: Ethernet Patch Cable
- Connector Type: RJ45 to RJ45
- Category: Cat6A
- Transmission Class: Class EA
- Wiring Standard: TIA 568B
- Shielding: S/FTP Shielded
- Cable Construction: 4x2xAWG27/7
- Outer Jacket: LSZH
- Cable Diameter: 5.8 mm ± 0.3 mm
- Color: Grey
- Color Code: RAL 7035
- Available Lengths: Select lengths from 0.25 m to 50 m
- Ethernet Performance: Up to 10 Gigabit Ethernet per IEEE 802.3an
- Power over Ethernet: Supports PoE+ per IEEE 802.3at and 4PPoE per IEEE 802.3bt
- Current Carrying Capacity: 1 A at 50°C
- Durability: More than 750 mating cycles
- Insertion Force: Less than 30 N
- Operating Temperature: -40°C to +75°C
- Particulate Ingress Protection: IP2X
- Water Ingress Protection: IPX0
- Connector Standard: IEC 60603-7-51
- Compliance: RoHS Compliant
- Certification: UL Listed
- Quantity: 1 Cable
Typical Applications
- Cat6A Ethernet network connections
- Data center patching
- Office and enterprise networks
- Structured cabling systems
- Network switches, routers, and patch panels
- Wi-Fi access point connections
- PoE and PoE+ powered network devices
- IP cameras and security systems
- Telecom and DAS network equipment
Please Note: Cable length is selected from the available product variants. Each length has its own corresponding Telegärtner manufacturer part number.
