Description

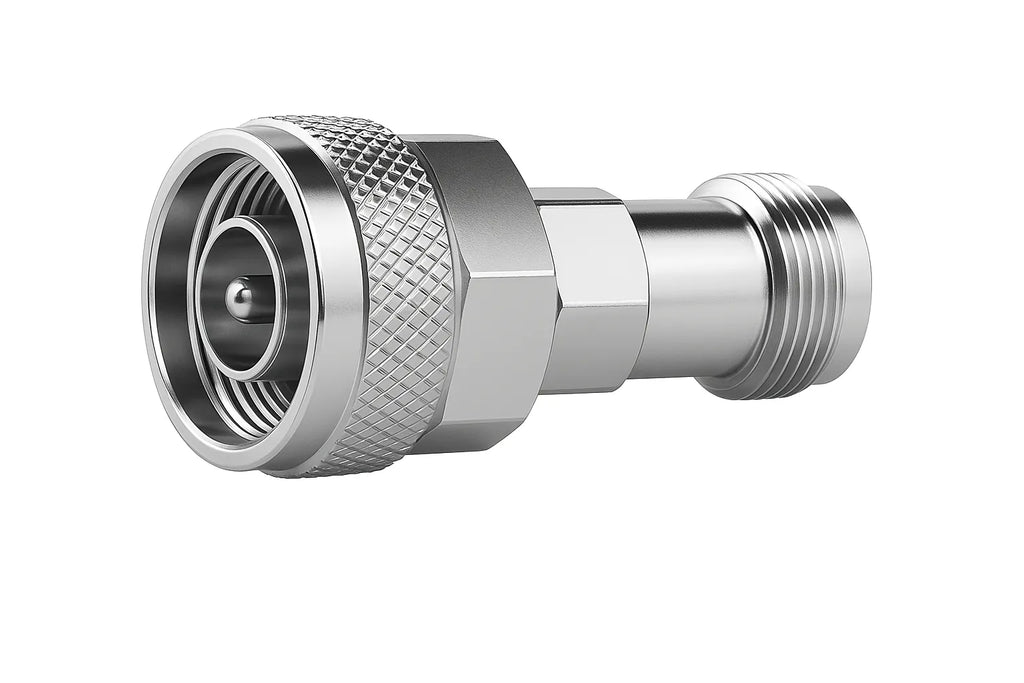

The Telegärtner 100046227 is a high-performance straight N male clamp connector designed for 1/4" Superflex RF cables such as FSJ1-50 (CommScope), SCF14-50 (RFS), and equivalent Eupen and Draka models. With robust mechanical integrity and electrical performance up to 11 GHz, this connector ensures minimal return loss and low intermodulation distortion. Featuring PTFE insulation, a copper-beryllium center contact, and IP67 ingress protection, it’s ideal for DAS, RF infrastructure, and outdoor cabinet installations where reliable sealing and signal integrity are critical.
This connector terminates directly onto a coaxial cable using a clamp mechanism and is engineered for environments demanding weather resistance and excellent RF performance.
Key Specifications
✅ Impedance: 50 Ohm
✅ Frequency Range: DC–11 GHz
✅ Return Loss: >36 dB @ 1 GHz; >32 dB @ 3 GHz; >21 dB @ 6 GHz
✅ PIM: < –155 dBc (2x20W)
✅ Protection: IP67
✅ Voltage Rating: 1.5 kVeff
✅ Material: CuBe2Pb (center), CuZn39Pb3 (body), PTFE (insulation)
✅ Plating: CuSnZn3 / Cu2Ag5
✅ Compliance: RoHS, IEC 61169-16
✅ Mating Cycles: >500
✅ Temperature Range: –55°C to +90°C
✅ Connector Type: Clamp-style termination
🔗 Download Full Telegärtner Catalog (PDF)
Compatible RF Cable Types
-
FSJ1-50 (CommScope)
-
SCF14-50 (RFS)
-
Eupen 5042 1/4" Hilflex
-
Draka RFF 1/4"-50
