Description

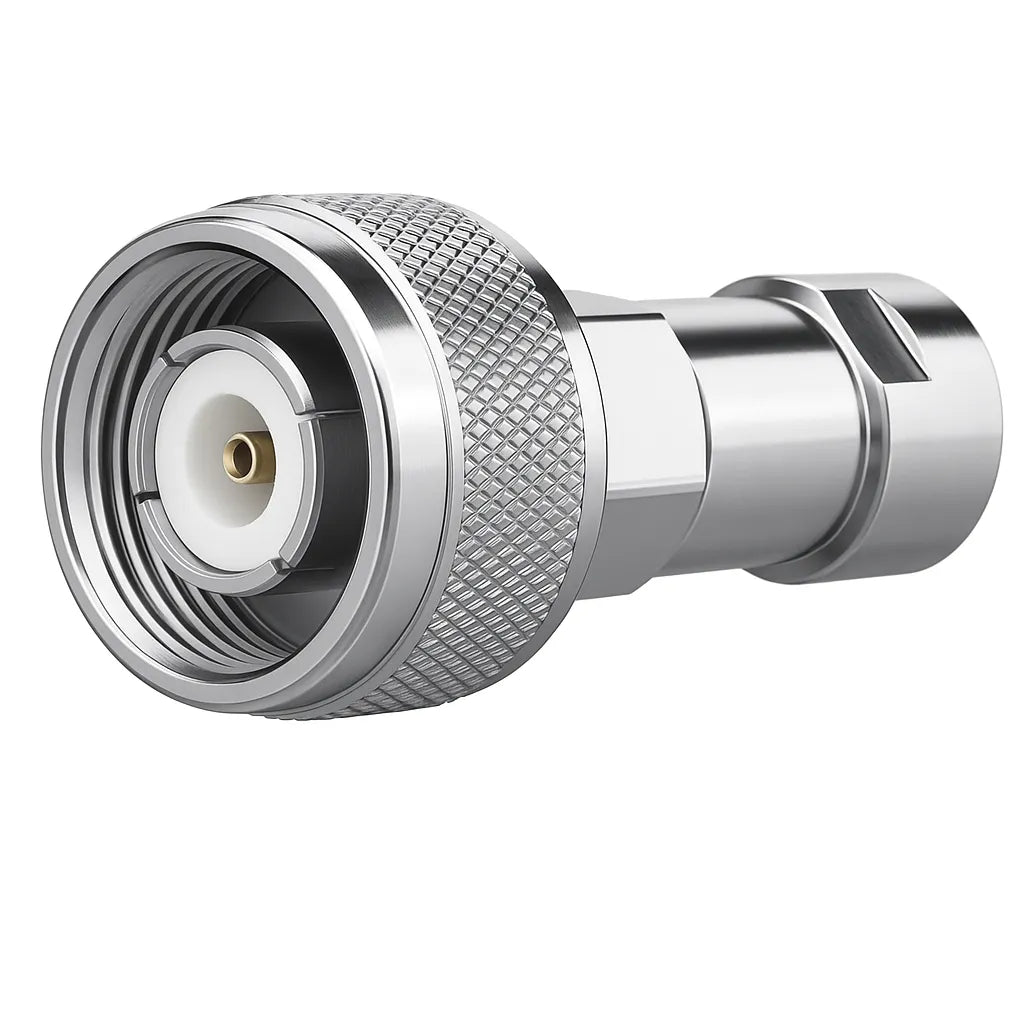

The Telegärtner 100033390 is a precision-engineered 4.3-10 male straight plug designed for high-performance RF applications including DAS, small cells, and indoor wireless infrastructure. Featuring the SIMFix 2:1 clamp assembly and constructed from nickel-plated brass and PTFE insulation, this connector supports frequencies up to 6 GHz and ensures low intermodulation (< –160 dBc) and excellent return loss values.
This connector offers IP67 environmental protection when mated, RoHS compliance, and reliable performance under demanding conditions. It is compatible with standard 1/4" corrugated cables and is supplied with detailed assembly guidance.
Key Specifications
✅ Interface: 4.3-10 Male Straight (SIMFix 2:1)
✅ Impedance: 50 Ohm
✅ Frequency Range: DC–6 GHz
✅ Return Loss: >36 dB @ 1 GHz; >35 dB @ 2 GHz; >32 dB @ 3 GHz; >27 dB @ 4 GHz; >21 dB @ 6 GHz
✅ Ingress Protection: IP67 (mated)
✅ PIM: < –160 dBc (2x20W)
✅ Contact Resistance: < 0.5 mΩ (center), < 1.0 mΩ (outer)
✅ Insulation Resistance: >1 GΩ
✅ Compliance: RoHS, IEC 61169-54
✅ Materials: CuZn39Pb3, CuSnZn3, CuBe2Pb, PTFE
✅ Mating Cycles: >500
✅ Coupling Torque: 5 Nm
Compatible RF Cable Types
-
FSJ1-50 (CommScope)
-
SCF14-50 (RFS)
-
Eupen 5042 1/4" Hilflex
-
Draka RFF 1/4"-50
