Description

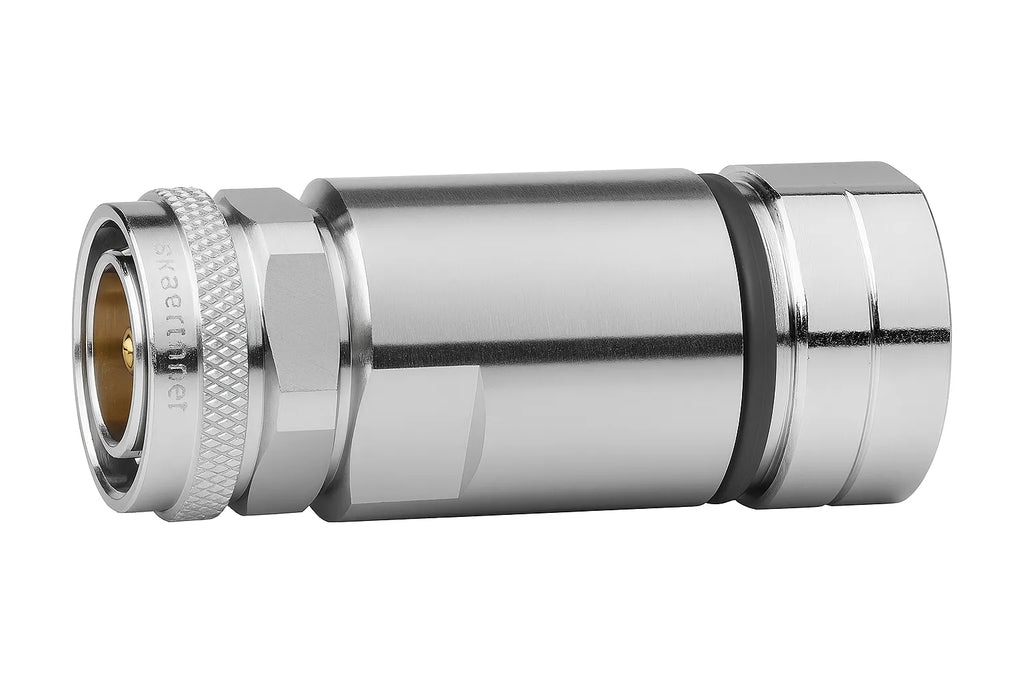

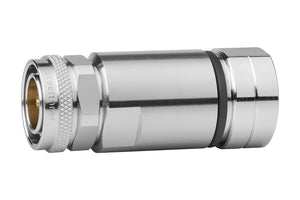

The Telegärtner 100025183 is a precision-engineered 4.3-10 male straight plug (screw type), designed to support high-performance RF signal transmission in cellular base stations, DAS, and antenna feed line installations. This connector features a low-PIM design (< –155 dBc), IP68 ingress protection, and a rugged brass and copper alloy body with PTFE insulation. Optimized for field or factory cable assembly using 1/2" RF coaxial cables, it ensures low return loss and reliable long-term mechanical stability even in harsh environments.
This connector is RoHS-compliant and conforms to IEC 61169-54 interface standards, making it ideal for demanding telecom, in-building wireless, and infrastructure applications requiring consistent performance across 0–6 GHz.
Key Specifications
✅ Interface: 4.3-10 Male (Screw)
✅ Impedance: 50 Ohm
✅ Frequency Range: DC–6 GHz
✅ Return Loss: –36 dB @ 2 GHz, –30 dB @ 4 GHz, –22 dB @ 6 GHz
✅ PIM (3rd Order): < –155 dBc (2x20W)
✅ Insertion Loss: < 0.1 dB @ 2 GHz, < 0.15 dB @ 4 GHz, < 0.25 dB @ 6 GHz
✅ Environmental Protection: IP68 (IEC 60529)
✅ Compliance: RoHS, IEC 61169-54
✅ Material: Brass, Copper Alloy, PTFE
✅ Mating Cycles: >100
✅ Operating Temp: –40°C to +85°C
✅ Center Contact Plating: Silver (Cu2Ag5)
✅ Outer Contact Plating: Nickel-Tin-Zinc (CuSnZn3)
Compatible RF Cable Types
FSJ4-50B (Commscope)
SCF12-50 J (RFS)
5092 1/2" Hilflex (Eupen)
HFSC 12D (LS Cable)
HPL 50-1/2 SF (Acome)
RFF 1/2"-50 (Draka)
Flexline 1/2" S (Leoni)
Sucofeed 1/2 HF (Huber&Suhner)
