Description

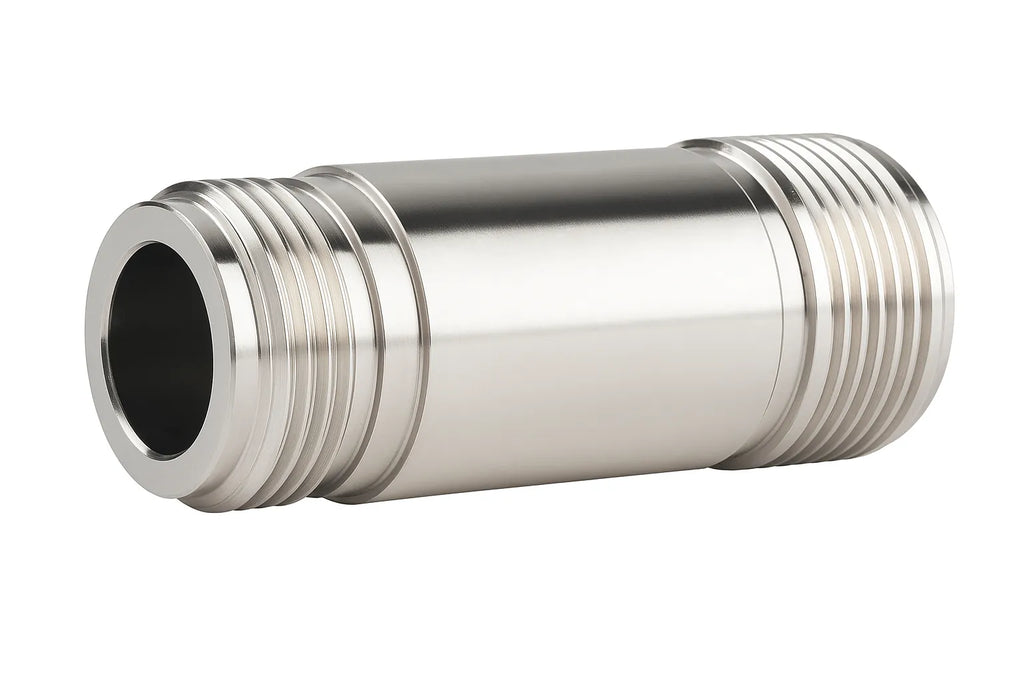

The Telegärtner 100024109 is a premium straight-through N(f) to N(f) coaxial adapter engineered for high-performance RF connectivity in wireless infrastructure, DAS, and test environments. Built to meet IEC 61169-16 standards, it offers excellent electrical characteristics including VSWR <1.05, return loss up to 40 dB, and ultra-low insertion loss below 0.1 dB up to 4 GHz.
Its robust construction ensures high reliability with over 500 mating cycles, and the design includes IP68 environmental sealing, plated brass body, and a PTFE insulator for consistent signal integrity across frequencies ranging from DC to 11 GHz.
Key Specifications
✅ Interface: N Female to N Female
✅ Impedance: 50 Ohm
✅ Frequency Range: DC–11 GHz
✅ Return Loss: Up to 40 dB
✅ Insertion Loss: < 0.1 dB up to 4 GHz
✅ Compliance: RoHS, IEC 61169-16
✅ Environmental Protection: IP68
✅ Plating: CuSnZn3 / Cu2Ag5
✅ Mating Cycles: >500
