Description

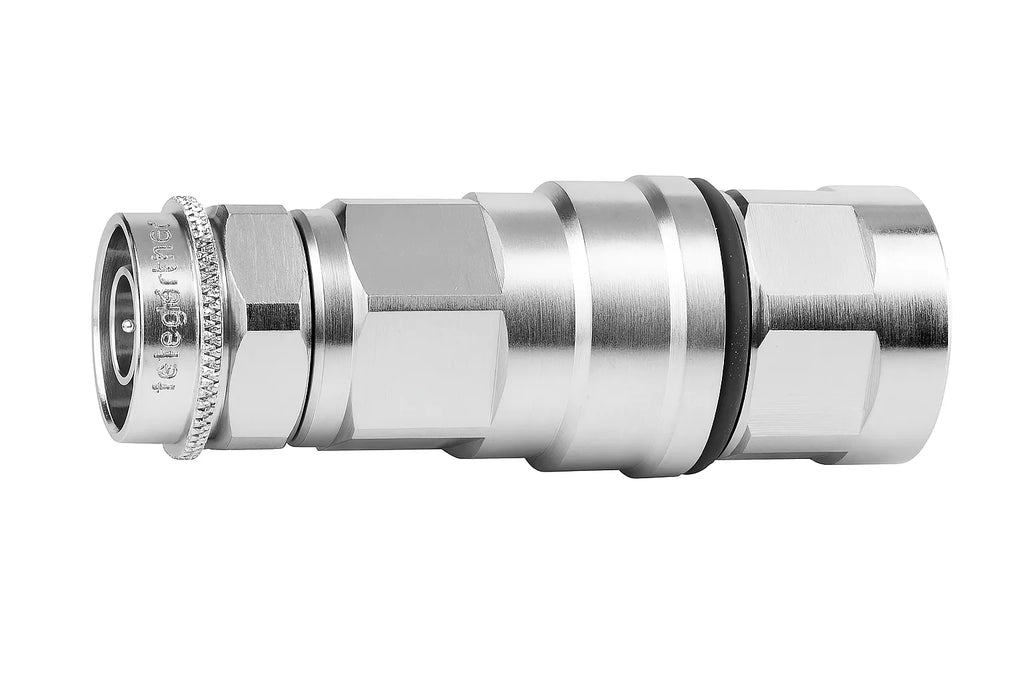

The Telegärtner 100023973 is a precision 4.3-10(f) coaxial crimp connector designed for low-PIM RF installations using 1/2" corrugated coaxial cable (G21). Engineered for indoor and outdoor use, this high-performance connector features PTFE insulation, brass body with white bronze plating, and copper alloy inner conductors. With a maximum frequency rating of 6 GHz and typical PIM performance better than –160 dBc, it ensures excellent signal integrity in critical DAS, telecom, and wireless infrastructure applications.
This connector is compatible with multiple industry-standard 1/2" corrugated cable types, offering reliable performance in harsh environments with IP68 protection when mated. Designed to support quick and secure crimp assembly, it is ideal for network installers and integrators seeking performance, durability, and ease of use.
Key Specifications
✅ Interface: 4.3-10 Female
✅ Impedance: 50 Ohm
✅ Frequency Range: DC–6 GHz
✅ Return Loss: >30 dB @ 2 GHz, >26 dB @ 3 GHz, >20 dB @ 6 GHz
✅ Typical PIM: < –160 dBc (2x20W)
✅ Ingress Protection: IP68 (when mated)
✅ Body Material: Brass, White Bronze Plated
✅ Inner Contact: Copper Alloy, Silver Plated
✅ Compliance: RoHS
✅ Cable Group: G21 (1/2")
🔗 Download Full Telegärtner Catalog (PDF)
Compatible RF Cable Types
- RFA 1/2"-50 (Draka)
- RFX 1/2"-50 (Draka)
- LCF 12-50 J (RFS)
- LDF4-50A (Commscope)
- 5128 1/2"-LD (Eupen)
- HPL 50-1/2 (HUBER+SUHNER)
- HFC 12D (Hansen)
- Flexline 1/2" R (Commscope)
- Sucofeed_1/2 (HUBER+SUHNER)
