Description
Sold as a Pack of 10. The Telegärtner 100023086 MFP8 IE is a shielded RJ45 industrial field termination plug designed specifically for PROFINET industrial Ethernet cabling. Its nickel-plated zinc die-cast housing, screening shield, integrated strain relief, and protection cap provide a durable field-terminable connection for industrial automation and network installations.

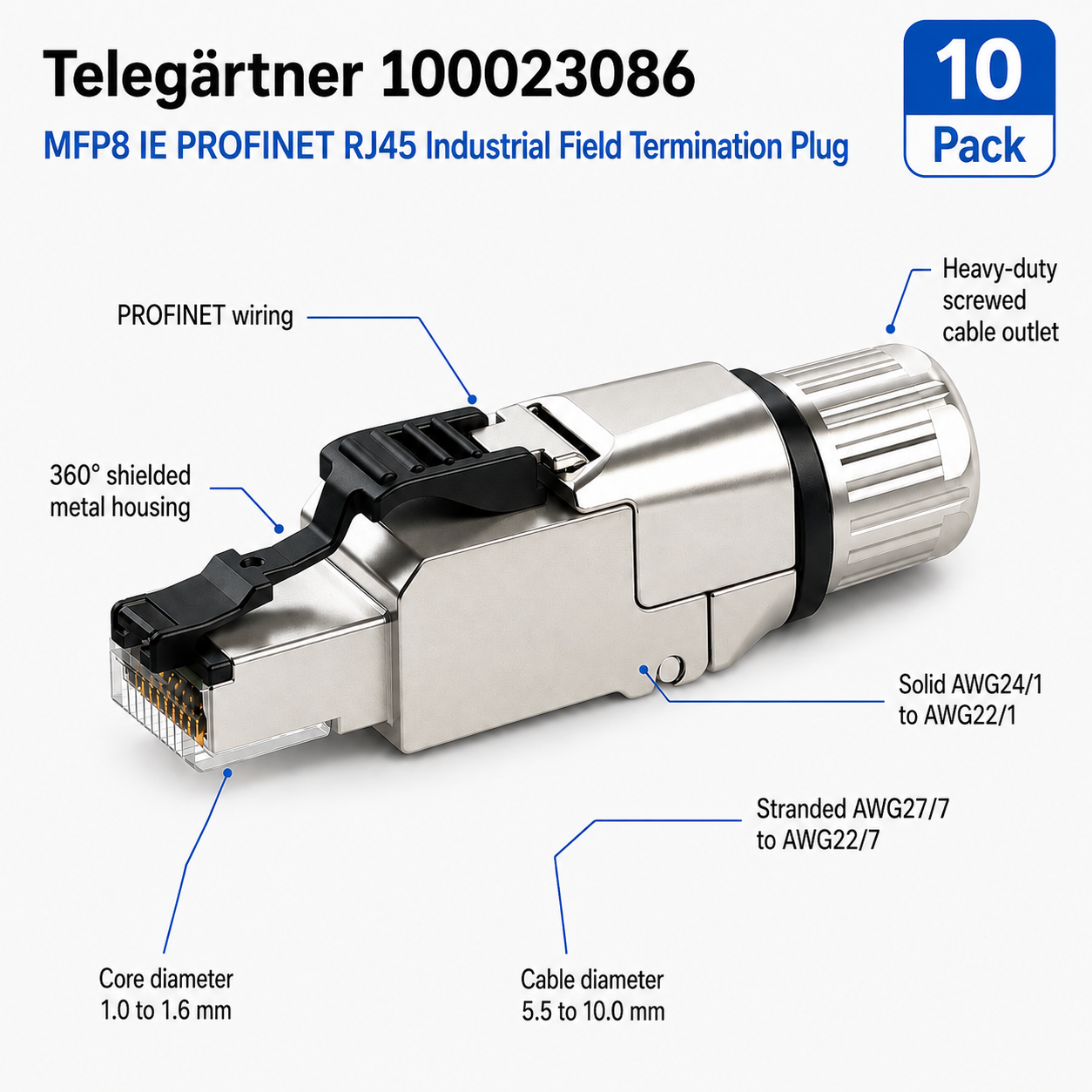

This version is designed for solid AWG24 to AWG22 and stranded AWG27 to AWG22 conductors, with insulated core diameters from 1.0 to 1.6 mm and overall cable diameters from 5.5 to 10.0 mm. The connector uses the PROFINET pin assignment and supports PoE, PoE+, and 4 Pair Power over Ethernet for compatible industrial network equipment.
Key Specifications
- Manufacturer: Telegärtner
- Part Number: 100023086
- Alternate Part Number: J00026A5002
- EAN: 4018359479848
- Product Family: MFP8 IE
- Manufacturer Description: MFP8 IE PROFINET AWG24-22/1, AWG27-22/7
- Connector Type: Industrial RJ45 Field Termination Plug
- Network Type: PROFINET Industrial Ethernet
- Pin Assignment: PROFINET
- Connector Standard: IEC 60603-7-51
- Housing Material: Nickel-plated zinc die-cast
- Shielding: Shielded metal housing with screening shield
- Solid Conductor Range: AWG24 to AWG22
- Stranded Conductor Range: AWG27 to AWG22
- Solid Conductor Diameter: 0.51 to 0.64 mm
- Stranded Conductor Diameter: 0.46 to 0.76 mm
- Core Diameter: 1.0 to 1.6 mm
- Cable Diameter: 5.5 to 10.0 mm
- Power over Ethernet: Supports PoE, PoE+, and 4PPoE
- Durability: More than 750 mating cycles
- Reusable IPC: Up to 4 reconnections
- Insertion Force: Less than 30 N
- Current Rating: 1 A at 50°C
- Contact Resistance: ≤20 mΩ
- Insulation Resistance: ≥500 MΩ
- Operating Temperature: -40°C to +85°C
- Ingress Protection: IP20
- Compliance: RoHS Compliant
- Certification: UL Listed E244889
- Included: Protection cap
- Quantity: Pack of 10 connectors

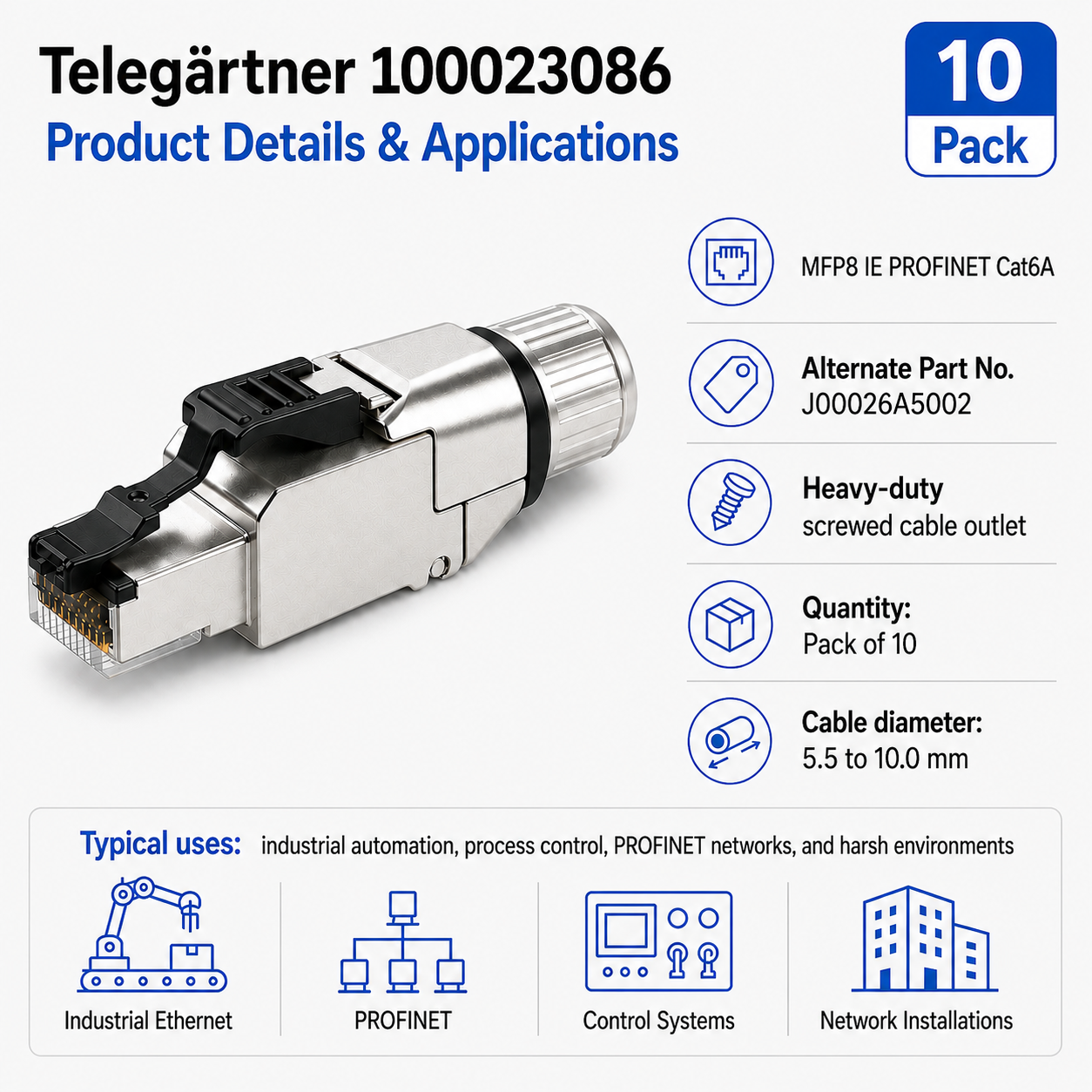

Typical Applications
- PROFINET industrial Ethernet networks
- Factory automation systems
- Industrial control systems
- PLC and automation equipment connections
- Industrial machinery networks
- Industrial Ethernet field termination
- PoE-powered industrial network devices
Installation Video
Watch the manufacturer installation video for additional guidance on assembling the MFP8 IE industrial field termination connector.
