Description

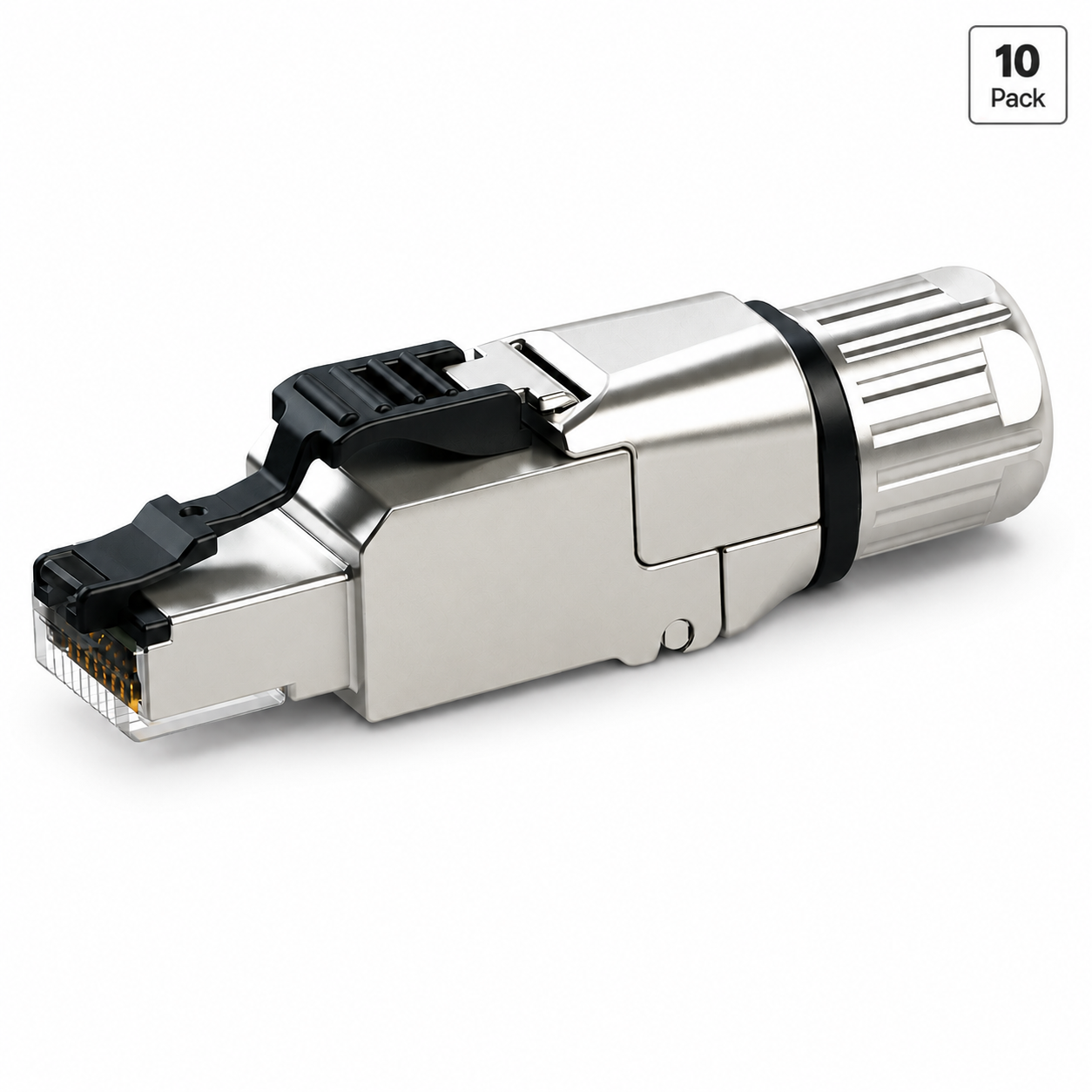

Sold as a Pack of 10. The Telegärtner 100023085 MFP8 IE is a shielded Cat6A RJ45 industrial field termination plug with T568B wiring, designed for professional Ethernet and network cabling installations. Its nickel-plated zinc die-cast housing, screening shield, integrated strain relief, and protection cap provide a durable field-terminable connection for demanding network environments.

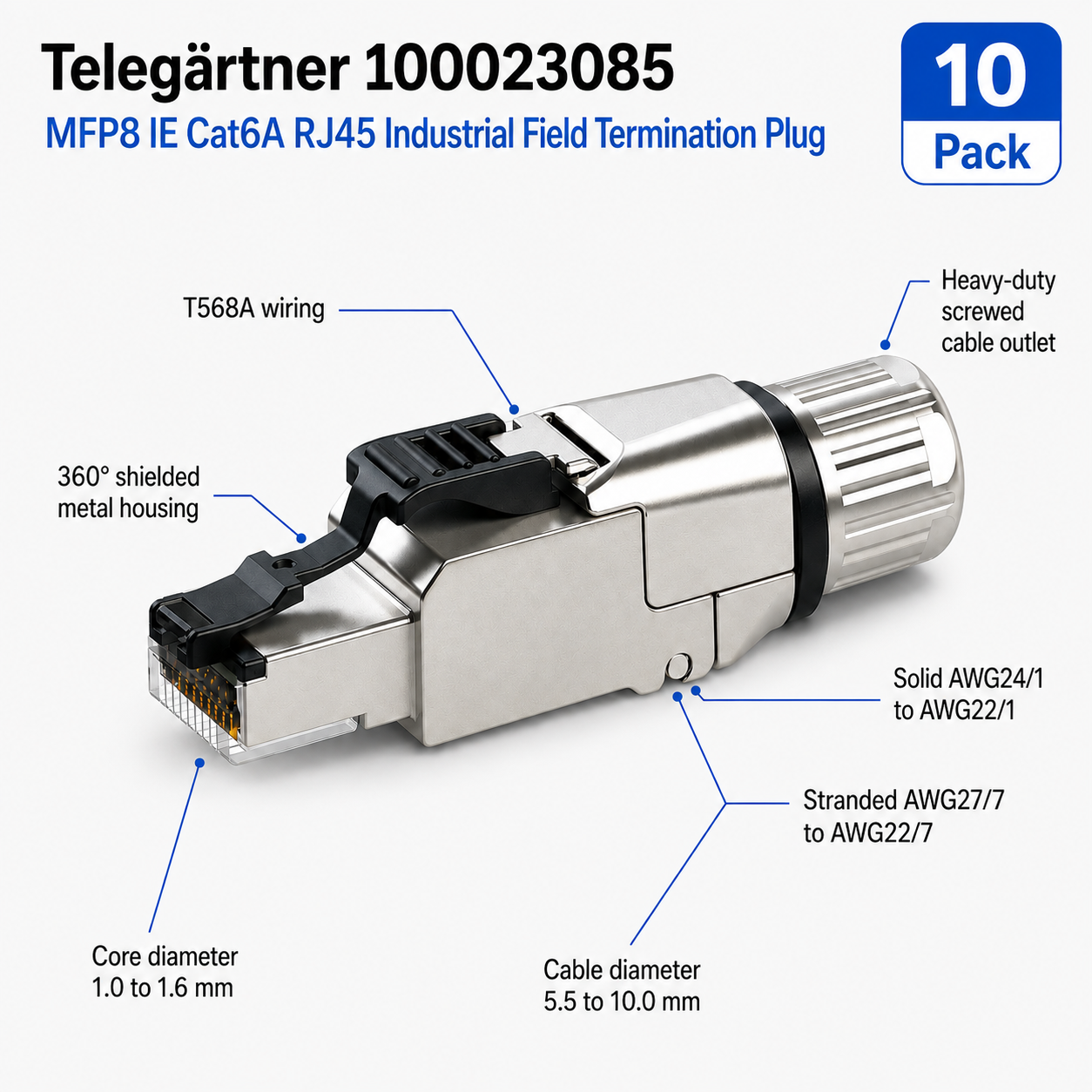

This version is designed for solid AWG24 to AWG22 and stranded AWG27 to AWG22 conductors, with insulated core diameters from 1.0 to 1.6 mm and overall cable diameters from 5.5 to 10.0 mm. The connector supports Cat6A/Class EA transmission performance, 10 Gigabit Ethernet, PoE, PoE+, and 4 Pair Power over Ethernet.

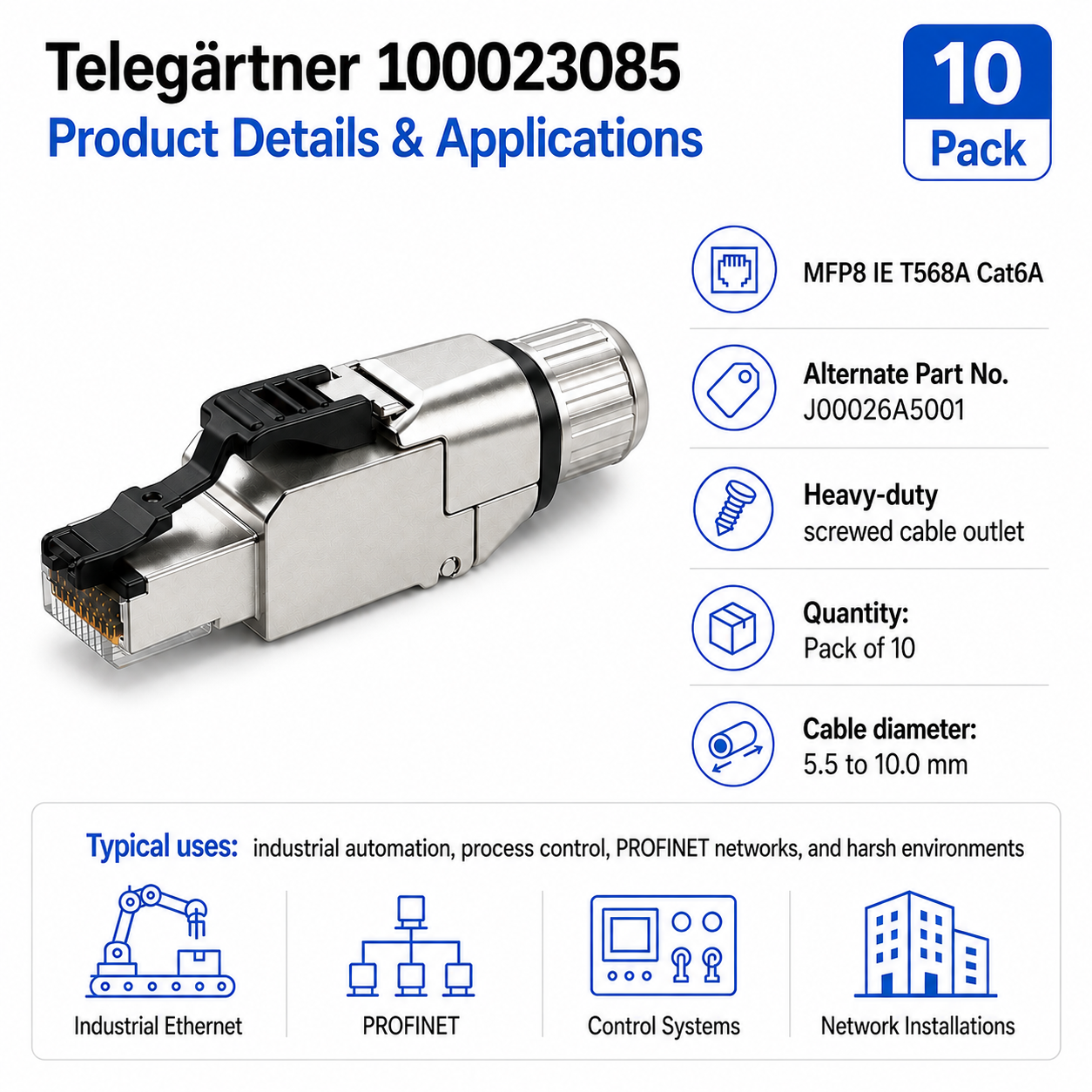

Key Specifications
- Manufacturer: Telegärtner
- Part Number: 100023085
- Alternate Part Number: J00026A5001
- EAN: 4018359479831
- Product Family: MFP8 IE
- Manufacturer Description: CU-CN MFP8 IE T568B C6A D1-1.6
- Connector Type: Industrial RJ45 Field Termination Plug
- Category: Cat6A
- Transmission Class: Class EA
- Wiring Standard: T568B
- Connector Standard: IEC 60603-7-51
- Housing Material: Nickel-plated zinc die-cast
- Shielding: Shielded metal housing with screening shield
- Solid Conductor Range: AWG24 to AWG22
- Stranded Conductor Range: AWG27 to AWG22
- Solid Conductor Diameter: 0.51 to 0.64 mm
- Stranded Conductor Diameter: 0.46 to 0.76 mm
- Core Diameter: 1.0 to 1.6 mm
- Cable Diameter: 5.5 to 10.0 mm
- Ethernet Performance: Up to 10 Gigabit Ethernet per IEEE 802.3an
- Power over Ethernet: Supports PoE, PoE+, and 4PPoE
- Durability: More than 750 mating cycles
- Reusable IPC: Up to 4 reconnections
- Insertion Force: Less than 30 N
- Current Rating: 1 A at 50°C
- Contact Resistance: ≤20 mΩ
- Insulation Resistance: ≥500 MΩ
- Operating Temperature: -40°C to +85°C
- Ingress Protection: IP20
- Compliance: RoHS Compliant
- Certification: UL Listed E244889
- Included: Protection cap
- Quantity: Pack of 10 connectors
Typical Applications
- Industrial Ethernet network connections
- Cat6A Ethernet field termination
- Industrial equipment and control systems
- Network cabinets and equipment installations
- Structured cabling systems
- 10 Gigabit Ethernet networks
- PoE, PoE+, and 4PPoE network devices
Installation Video
Watch the manufacturer installation video for additional guidance on assembling the MFP8 IE industrial field termination connector.
