Description

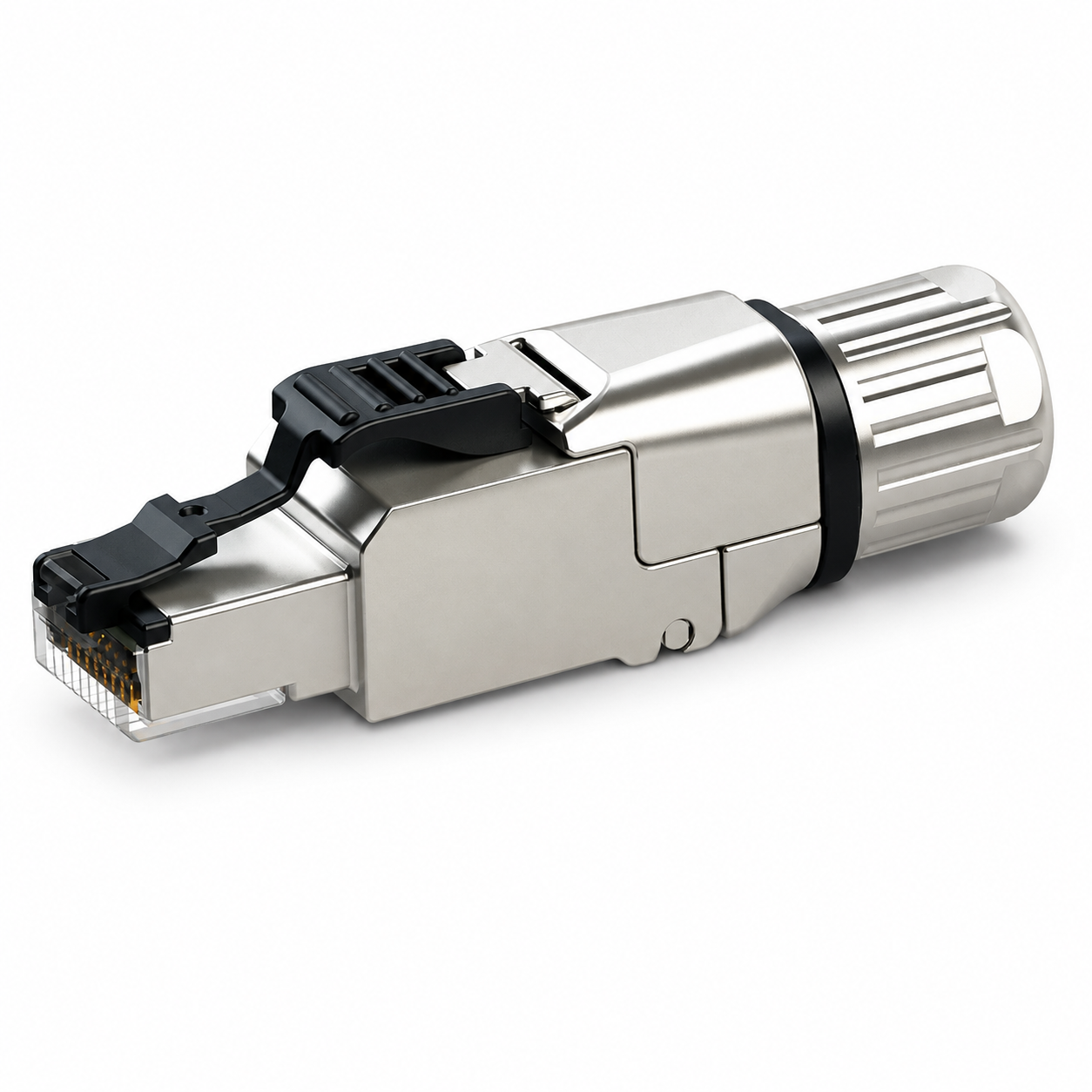

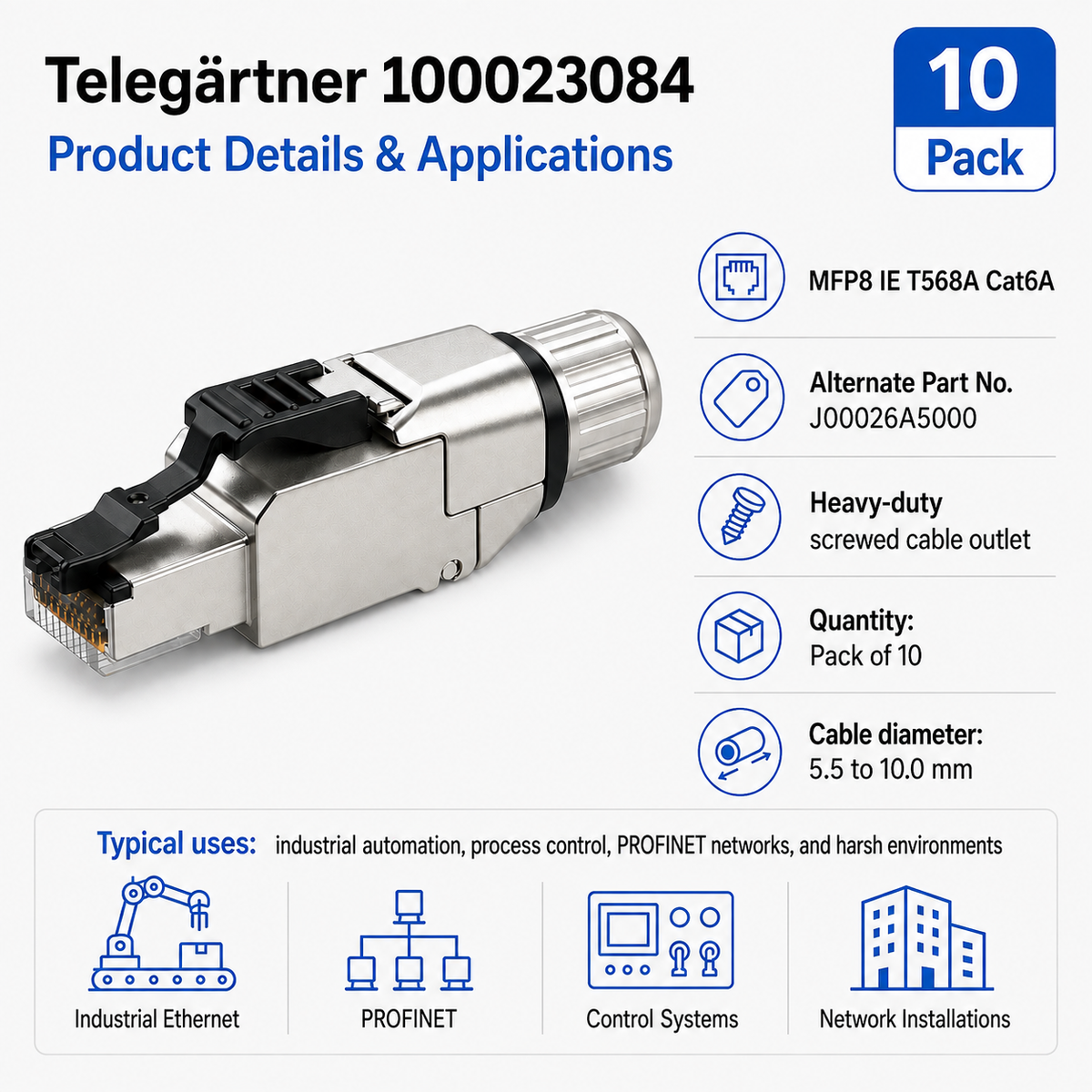

Sold as a Pack of 10. The Telegärtner 100023084 MFP8 IE is a shielded Cat6A RJ45 industrial field termination plug with T568A wiring, designed for demanding industrial Ethernet and network cabling applications. Its full metal housing provides 360-degree shielding, while the heavy-duty screwed cable outlet provides secure strain relief for thicker and more rigid cables.
This version is designed for solid AWG24 to AWG22 and stranded AWG27 to AWG22 conductors. It accepts overall cable diameters from 5.5 to 10.0 mm and is suitable for industrial network applications including PROFINET, Ethernet, EtherCAT, EtherNet/IP, and CC-Link.

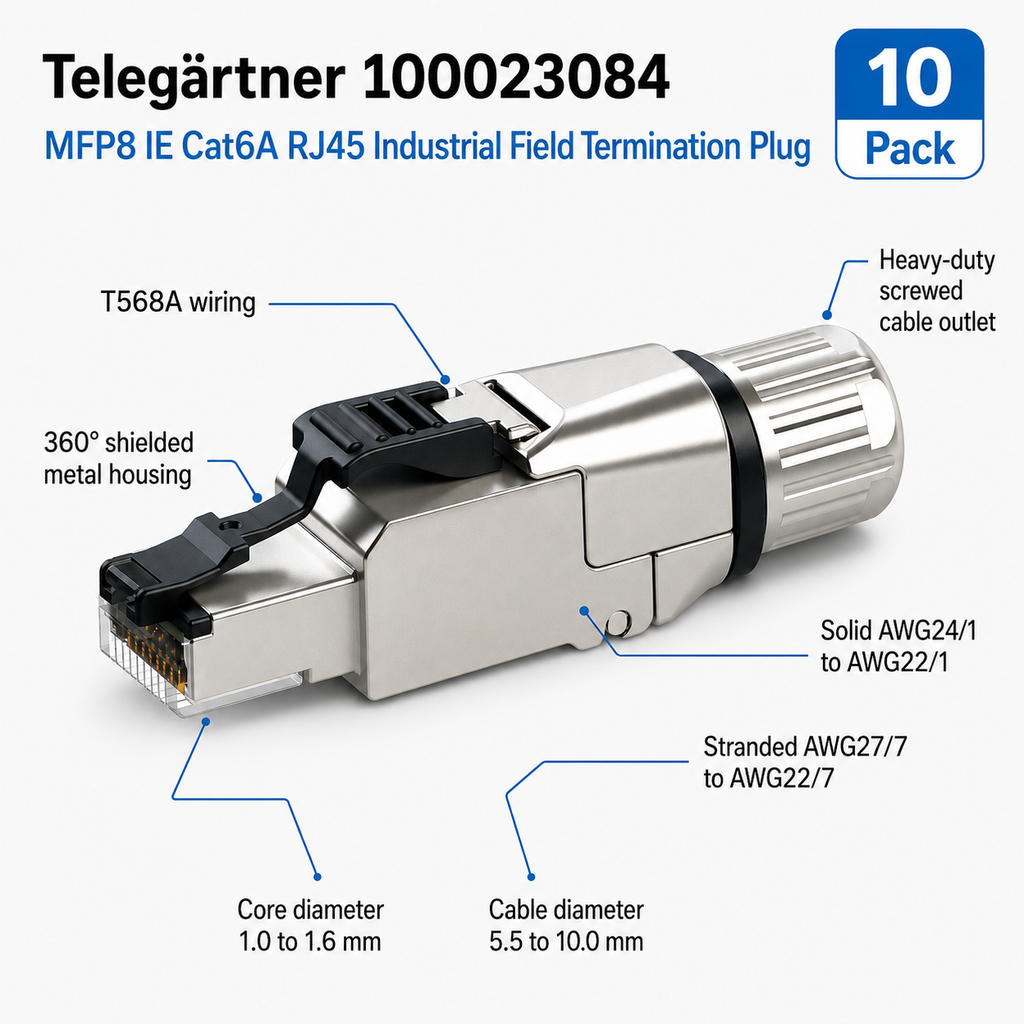

Key Specifications
- Manufacturer: Telegärtner
- Part Number: 100023084
- Product Family: MFP8 IE
- Connector Type: Industrial RJ45 Field Termination Plug
- Category: Cat6A
- Wiring Standard: T568A
- Solid Conductor Range: AWG24 to AWG22
- Stranded Conductor Range: AWG27 to AWG22
- Core Diameter: 1.0 to 1.6 mm
- Cable Diameter: 5.5 to 10.0 mm
- Shielding: Full metal housing with 360-degree shielding
- Strain Relief: Heavy-duty screwed cable outlet
- Cable Strain Relief Size: SW13
- Ingress Protection: IP20
- Compatible Conductors: Solid and stranded
- Quantity: Pack of 10 connectors
Typical Applications
- Industrial Ethernet networks
- PROFINET installations
- EtherCAT networks
- EtherNet/IP networks
- CC-Link applications
- Industrial equipment and control systems
- Industrial installation and patch cables
Installation Video
Watch the manufacturer installation video for additional guidance on assembling the MFP8 IE industrial field termination connector.
