Description

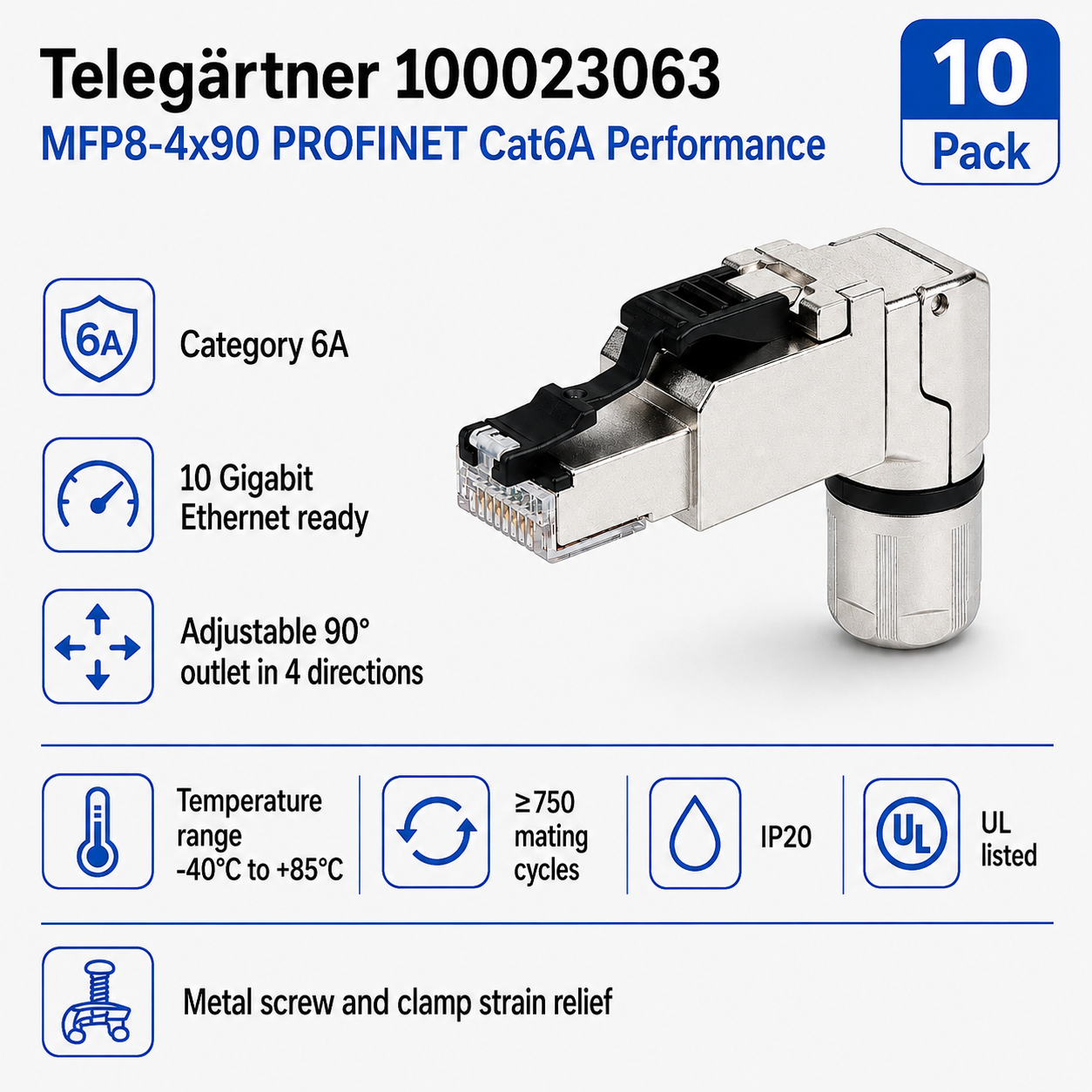

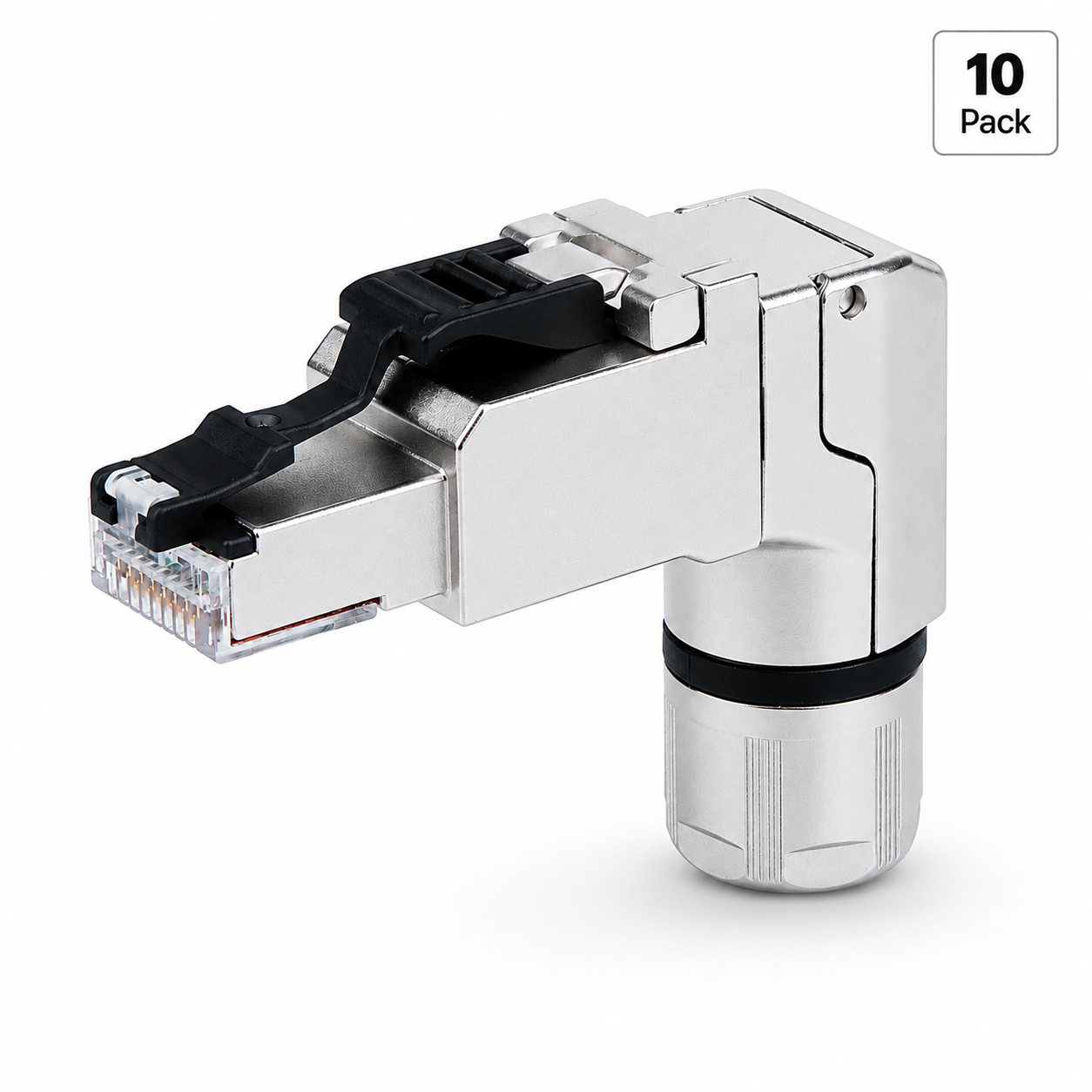

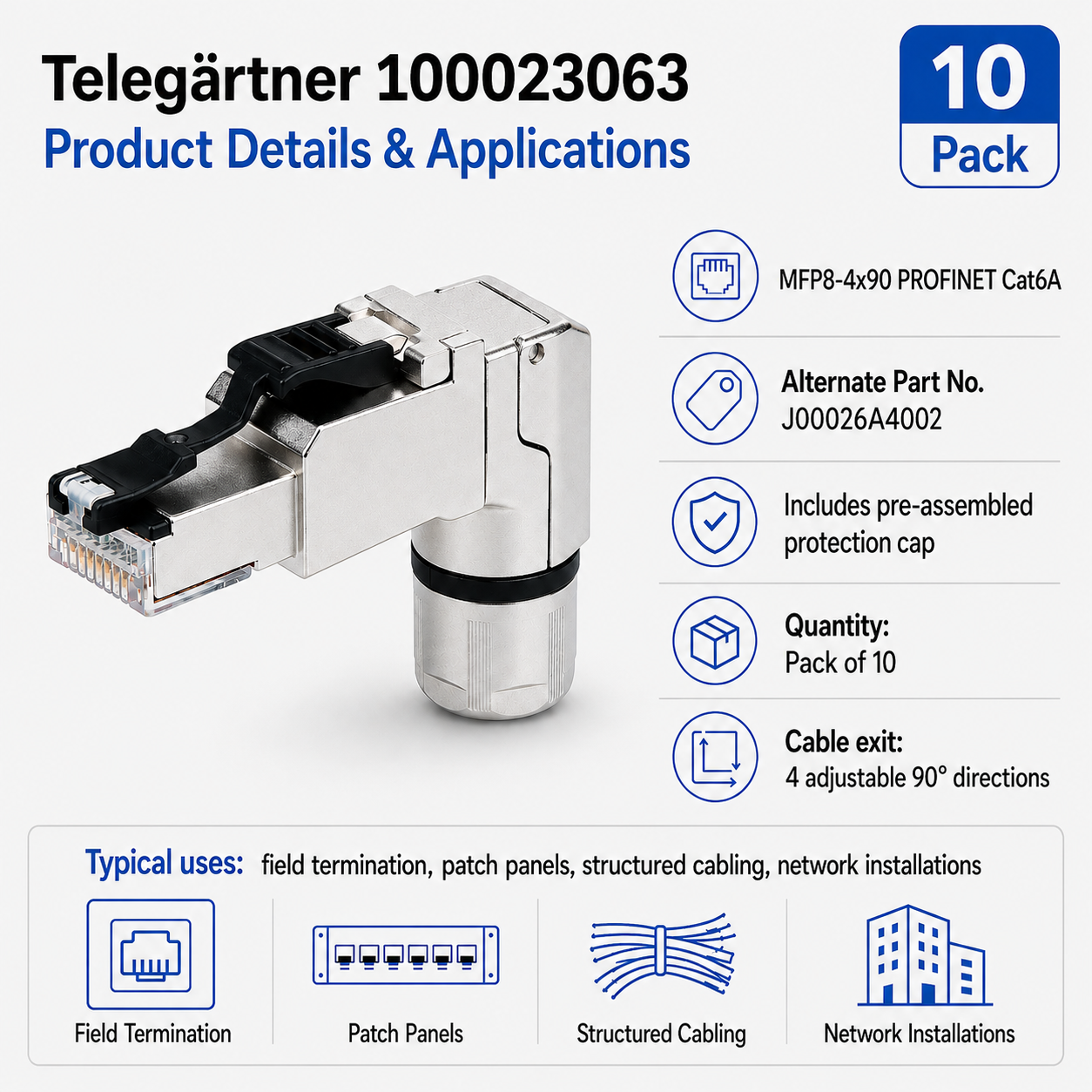

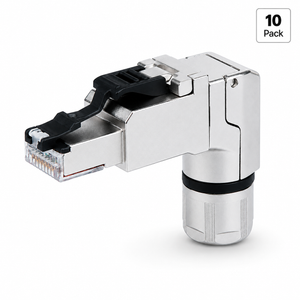

Sold as a Pack of 10. The Telegärtner 100023063 MFP8-4x90 is a shielded RJ45 right-angle field termination plug designed for PROFINET industrial Ethernet installations where cable-routing space is limited. Its 90-degree cable outlet can be configured in four orientations, allowing the cable to exit in the direction best suited to the installation.

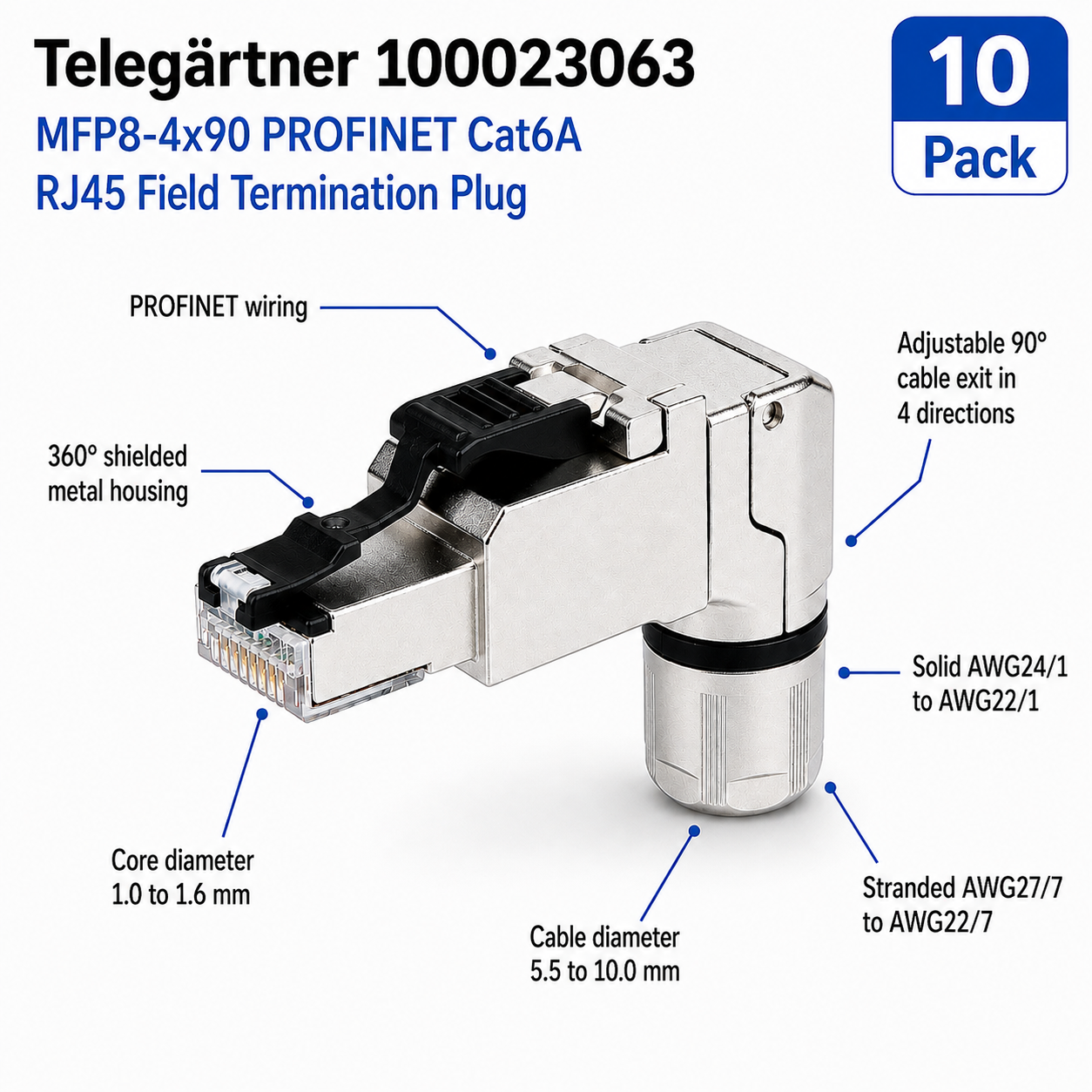

The connector features a nickel-plated zinc die-cast housing, screening shield, integrated strain relief, and protection cap for secure termination of solid and stranded Ethernet conductors. It is designed for solid AWG24 to AWG22 and stranded AWG27 to AWG22 conductors, with insulated core diameters from 1.0 to 1.6 mm and overall cable diameters from 5.5 to 10.0 mm. The connector also supports PoE, PoE+, and 4 Pair Power over Ethernet for compatible PROFINET equipment.
Key Specifications
- Manufacturer: Telegärtner
- Part Number: 100023063
- Alternate Part Number: J00026A4002
- EAN: 4018359448936
- Product Family: MFP8-4x90
- Manufacturer Description: CU-CN MFP8-4x90 PNO D1-1.6
- Connector Type: RJ45 Right Angle Field Termination Plug
- Network Type: PROFINET Industrial Ethernet
- Pin Assignment: PROFINET
- Cable Exit: 90-degree outlet configurable in four orientations
- Connector Standard: IEC 60603-7-51
- Housing Material: Nickel-plated zinc die-cast
- Shielding: Shielded metal housing with screening shield
- Solid Conductor Range: AWG24 to AWG22
- Stranded Conductor Range: AWG27 to AWG22
- Solid Conductor Diameter: 0.51 to 0.64 mm
- Stranded Conductor Diameter: 0.46 to 0.76 mm
- Core Diameter: 1.0 to 1.6 mm
- Cable Diameter: 5.5 to 10.0 mm
- Power over Ethernet: Supports PoE, PoE+, and 4PPoE
- Durability: More than 750 mating cycles
- Reusable IPC: Up to 4 reconnections
- Cable Tensile Strength: Minimum 50 N
- Insertion Force: Less than 30 N
- Current Rating: 1 A at 50°C
- Contact Resistance: ≤20 mΩ
- Insulation Resistance: ≥500 MΩ
- Operating Temperature: -40°C to +85°C
- Ingress Protection: IP20
- Compliance: RoHS Compliant
- Certification: UL Listed E244889
- Included: Protection cap
- Quantity: Pack of 10 connectors
Typical Applications
- PROFINET industrial Ethernet field termination
- Industrial control cabinets
- PLC and automation equipment connections
- Machinery and manufacturing networks
- Space-constrained industrial Ethernet connections
- PROFINET installations requiring controlled cable routing
- PoE-powered industrial network devices
Installation Video
Watch the manufacturer installation video for additional guidance on assembling the right-angle MFP8 field termination connector.
