Description

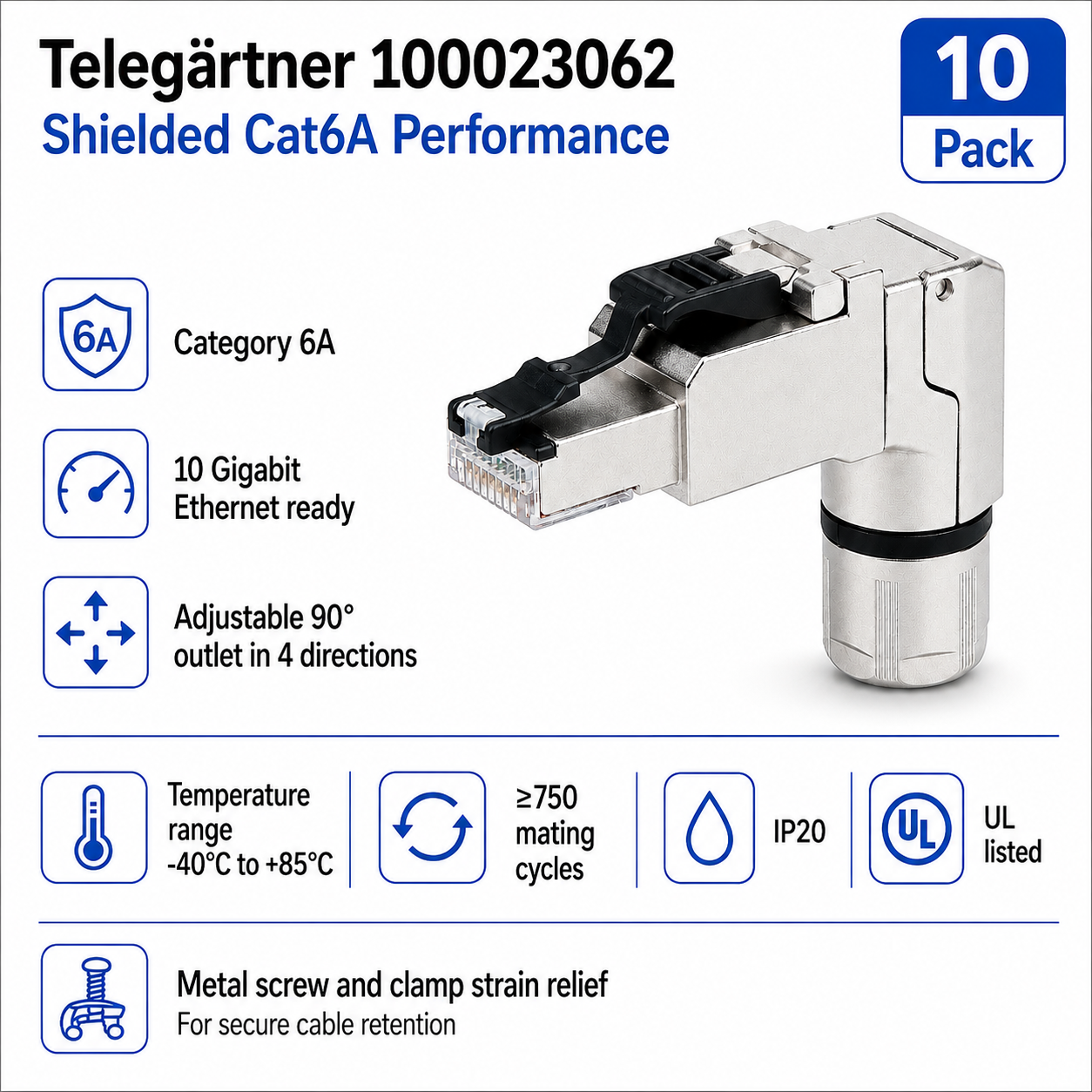

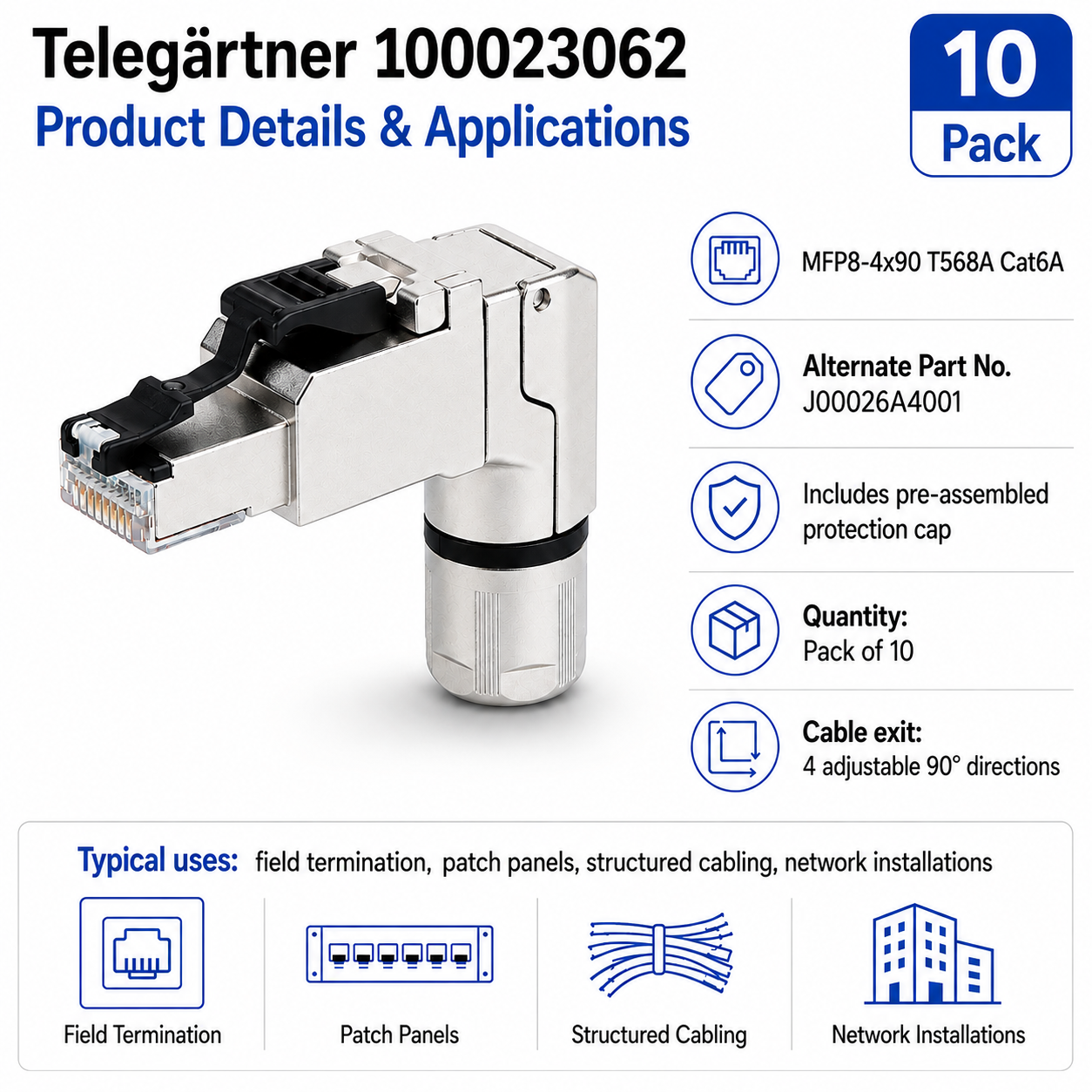

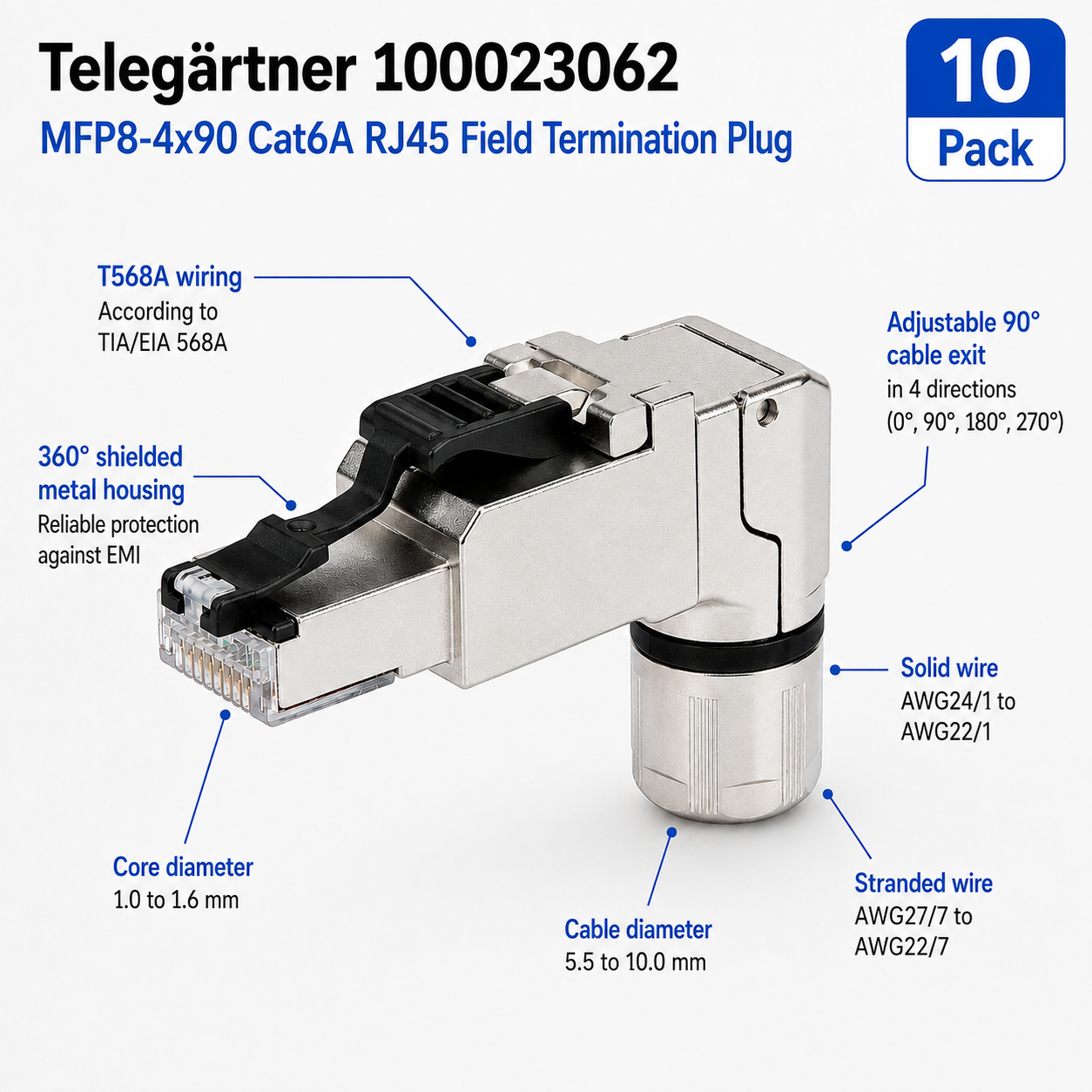

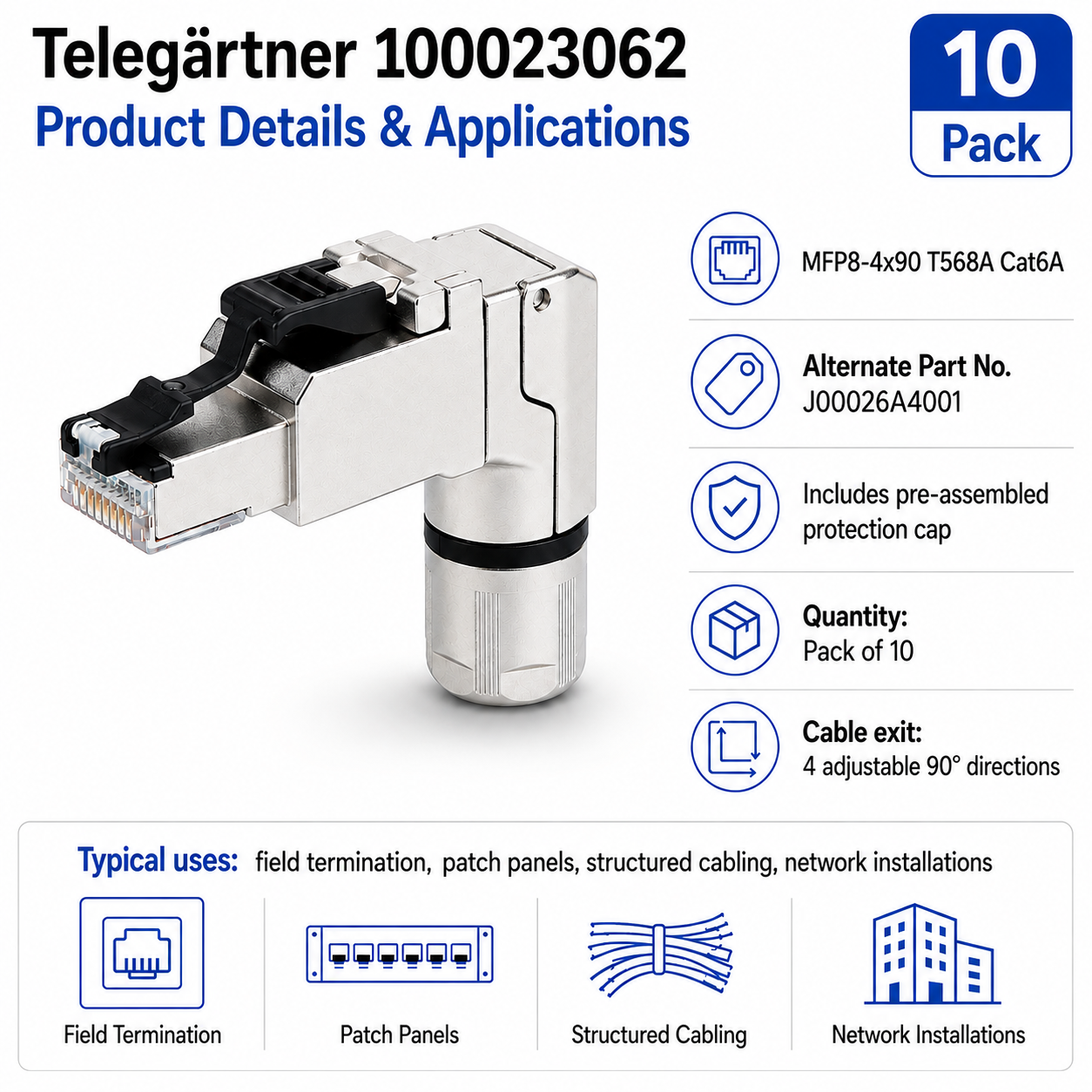

Sold as a Pack of 10. The Telegärtner 100023062 MFP8-4x90 is a shielded Cat6A RJ45 right-angle field termination plug with T568B wiring, designed for installations where cable-routing space is limited. Its 90-degree cable outlet can be configured in four orientations, allowing the cable to exit in the direction best suited to the installation.
The connector features a nickel-plated zinc die-cast housing, shielded construction, integrated strain relief, and protection cap. It is designed for solid AWG24 to AWG22 and stranded AWG27 to AWG22 conductors, with insulated core diameters from 1.0 to 1.6 mm and overall cable diameters from 5.5 to 10.0 mm. The connector supports Cat6A/Class EA performance, 10 Gigabit Ethernet, PoE, PoE+, and 4 Pair Power over Ethernet.
Key Specifications
- Manufacturer: Telegärtner
- Part Number: 100023062
- Alternate Part Number: J00026A4001
- EAN: 4018359448929
- Product Family: MFP8-4x90
- Manufacturer Description: CU-CN MFP8-4x90 T568B C6A D1-1.6
- Connector Type: RJ45 Right Angle Field Termination Plug
- Category: Cat6A
- Transmission Class: Class EA
- Wiring Standard: T568B
- Cable Exit: 90-degree outlet configurable in four orientations
- Connector Standard: IEC 60603-7-51
- Housing Material: Nickel-plated zinc die-cast
- Shielding: Shielded metal housing
- Solid Conductor Range: AWG24 to AWG22
- Stranded Conductor Range: AWG27 to AWG22
- Solid Conductor Diameter: 0.51 to 0.64 mm
- Stranded Conductor Diameter: 0.46 to 0.76 mm
- Core Diameter: 1.0 to 1.6 mm
- Cable Diameter: 5.5 to 10.0 mm
- Ethernet Performance: Up to 10 Gigabit Ethernet per IEEE 802.3an
- Power over Ethernet: Supports PoE, PoE+, and 4PPoE
- Durability: At least 750 mating cycles
- Reusable IPC: Up to 4 reconnections
- Cable Tensile Strength: Minimum 50 N
- Insertion Force: Maximum 30 N
- Current Rating: 1 A at 50°C
- Contact Resistance: ≤20 mΩ
- Insulation Resistance: ≥500 MΩ
- Operating Temperature: -40°C to +85°C
- Ingress Protection: IP20
- Compliance: RoHS Compliant
- Certification: UL Listed E244889
- Quantity: Pack of 10 connectors
Typical Applications
- Cat6A Ethernet field termination
- 19-inch patch panels
- Network cabinets and equipment racks
- Space-constrained equipment connections
- Office and data center network cabling
- Structured cabling installations
- 10 Gigabit Ethernet networks
- PoE, PoE+, and 4PPoE network devices
Installation Video
Watch the manufacturer installation video for additional guidance on assembling the right-angle MFP8 field termination connector.
