Description

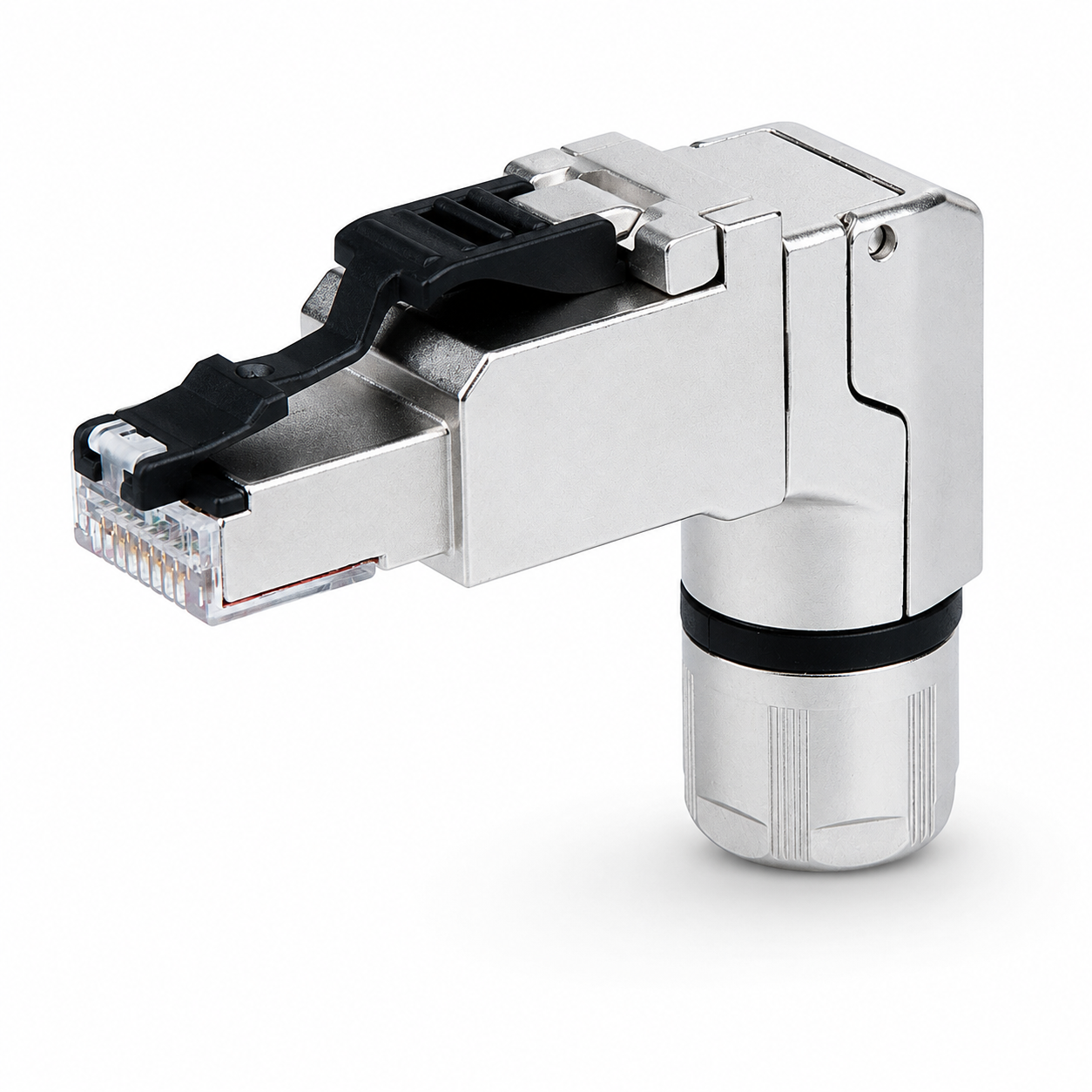

Sold as a Pack of 10. The Telegärtner 100023061 is a shielded Cat6A RJ45 right angle field termination plug with T568A wiring, designed for installations where cable routing space is limited. Its adjustable 90-degree cable outlet can be positioned in four directions, allowing the cable to exit from the top, bottom, left, or right depending on the installation.

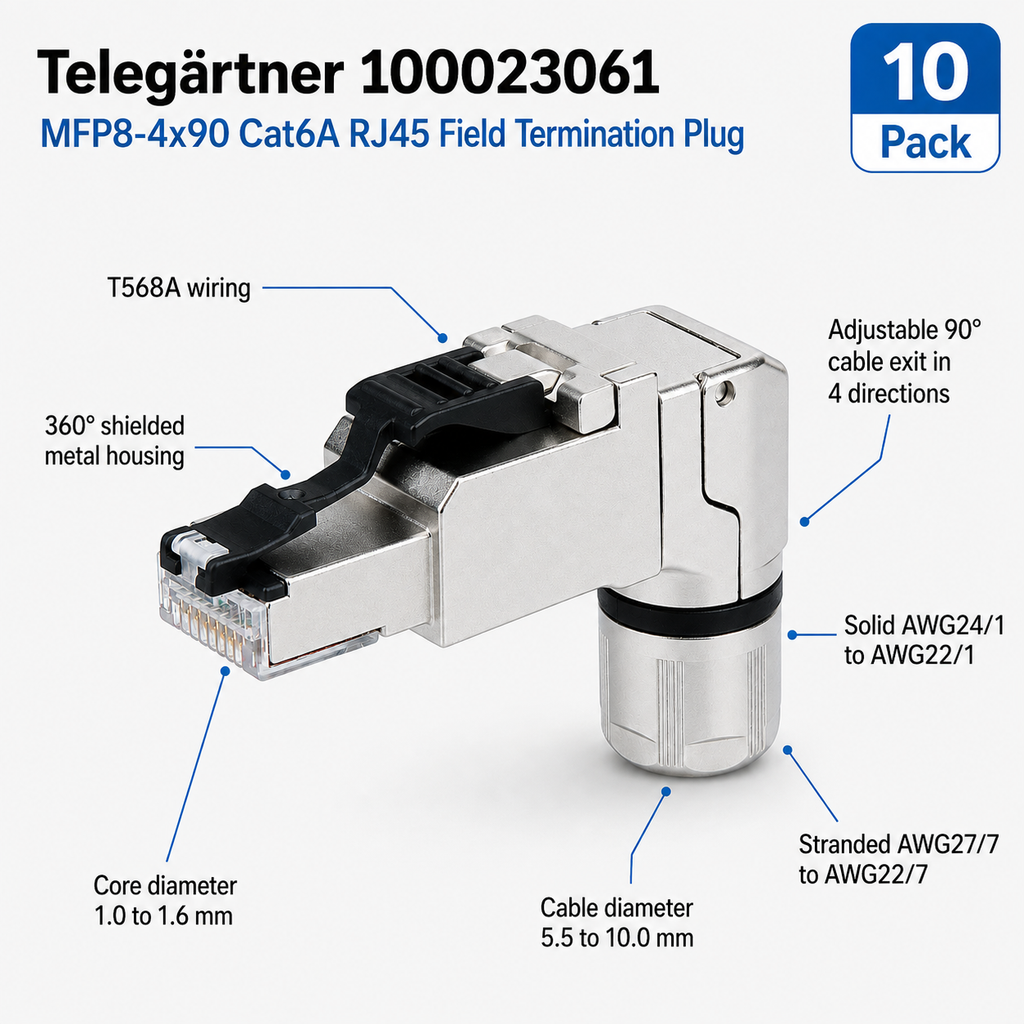

The connector features a full metal shielded housing and heavy-duty metal screw and clamp strain relief for secure termination of solid and stranded Ethernet conductors. It is designed for solid AWG24 to AWG22 and stranded AWG27 to AWG22 conductors, with insulated core diameters from 1.0 to 1.6 mm and overall cable diameters from 5.5 to 10.0 mm. The right angle design is well suited for patch panels, equipment connections, cabinets, and other installations where maintaining proper cable bend radius is important.
Key Specifications
- Manufacturer: Telegärtner
- Part Number: 100023061
- Connector Type: RJ45 Right Angle Field Termination Plug
- Category: Cat6A
- Wiring Standard: T568A
- Cable Exit: Adjustable 90-degree exit in four directions
- Solid Conductor Range: AWG24 to AWG22
- Stranded Conductor Range: AWG27 to AWG22
- Core Diameter: 1.0 to 1.6 mm
- Cable Diameter: 5.5 to 10.0 mm

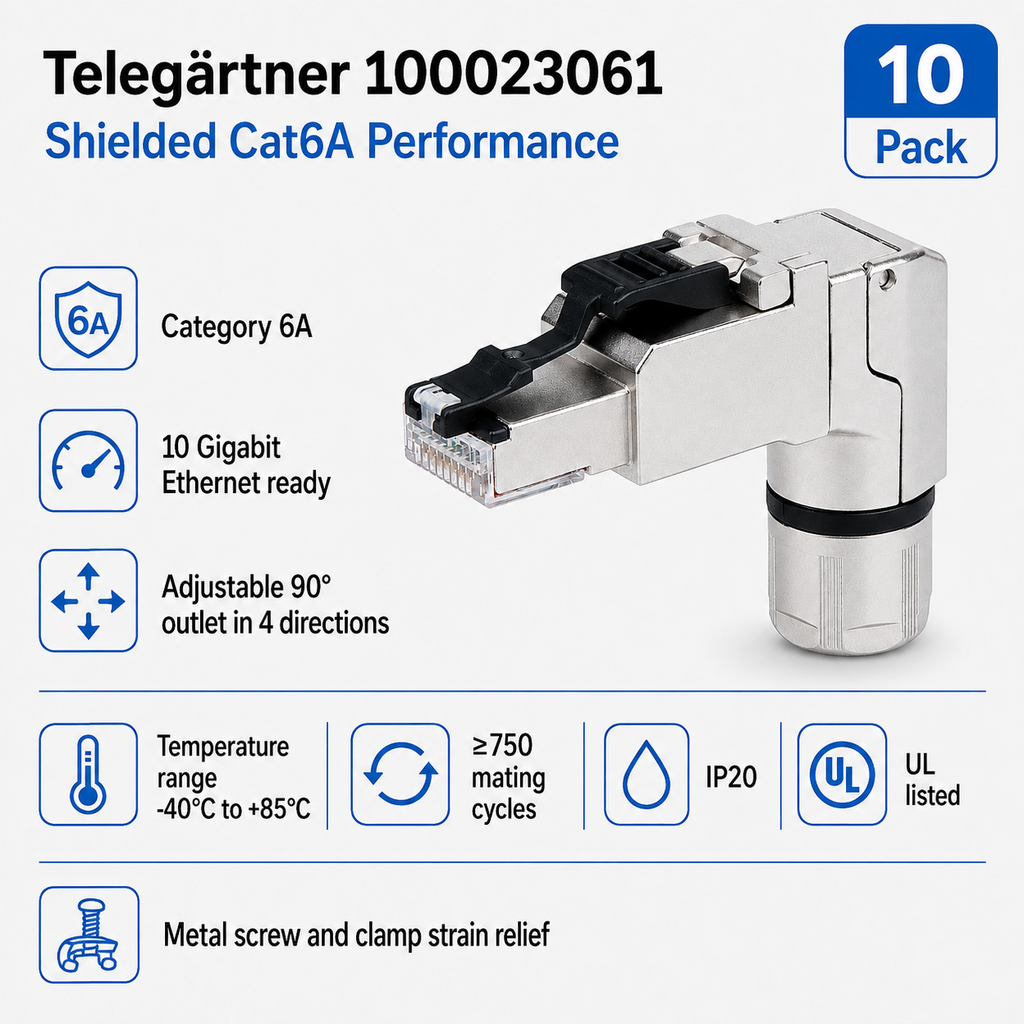

- Shielding: Full metal housing with 360-degree shielding
- Strain Relief: Metal screw and clamp connection
- Durability: At least 750 mating cycles
- Operating Temperature: -40 C to +85 C
- Ingress Protection: IP20
- Certification: UL Listed
- Included: Pre-assembled protection cap
- Quantity: Pack of 10 connectors

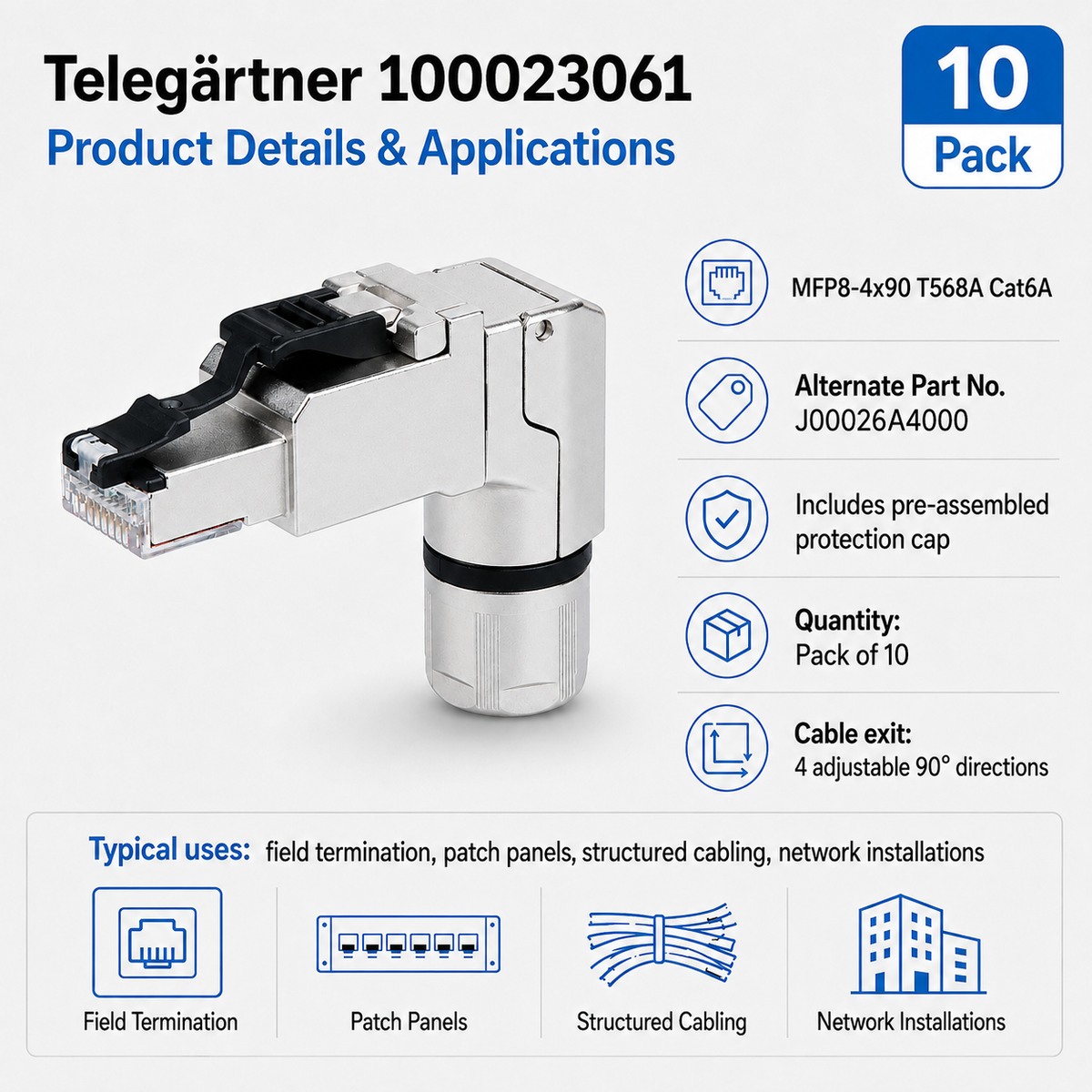

Typical Applications
- Cat6A Ethernet field termination
- 19-inch patch panels
- Network cabinets and equipment racks
- Space-constrained equipment connections
- Office and data center network cabling
- Structured cabling installations requiring controlled cable bend radius
Installation Video
Watch the manufacturer installation video for additional guidance on assembling the right angle MFP8 field termination connector.
