Description

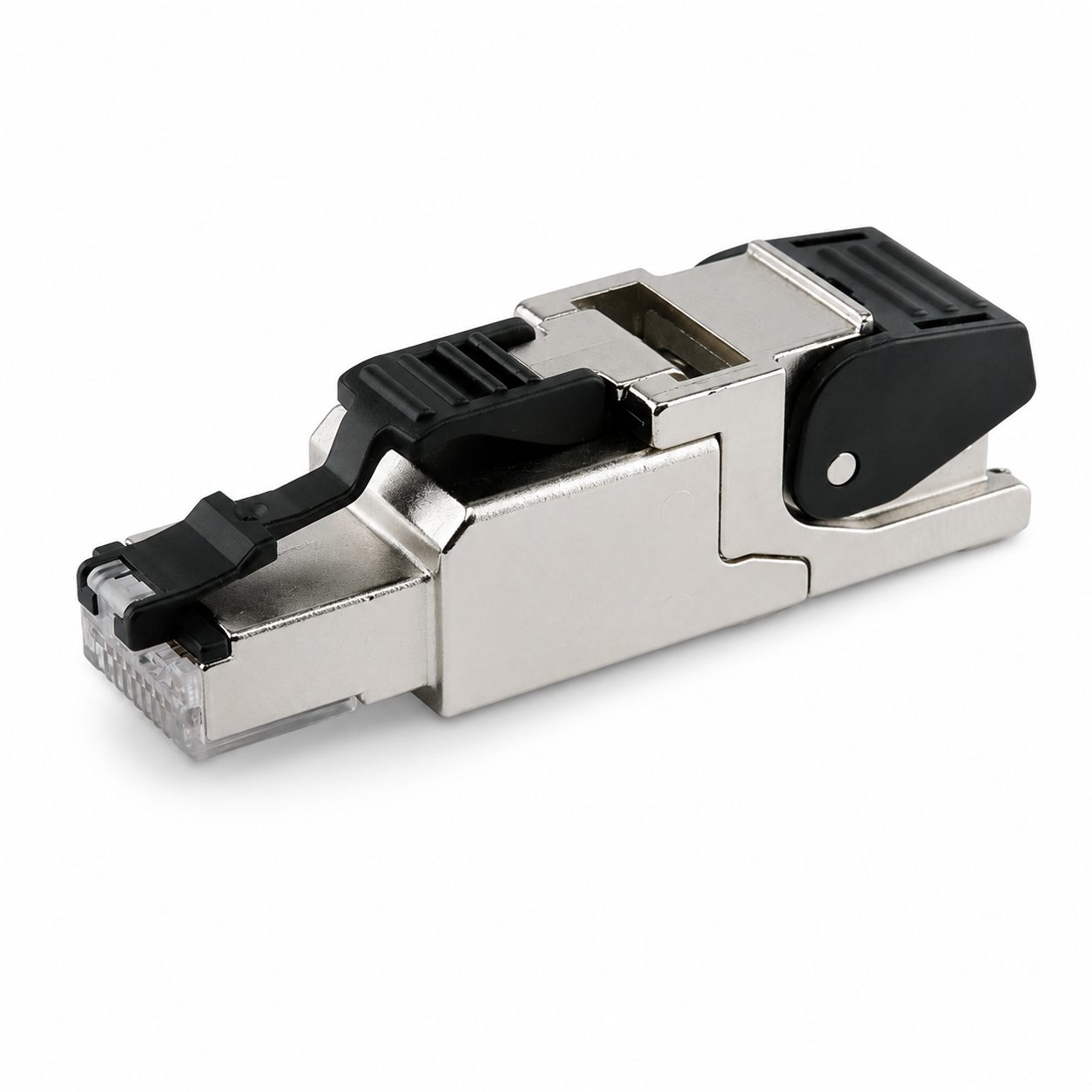

Sold as a Pack of 10. The Telegärtner 100023037 MFP8 is a shielded Cat6A RJ45 field termination plug with T568A wiring, designed for fast on-site termination of Ethernet installation and patch cables without special tools. Its compact full-metal housing, 360° shielding, and adjustable cable strain relief provide a reliable connection for office, data center, building network, Wi-Fi, security, and DAS applications.

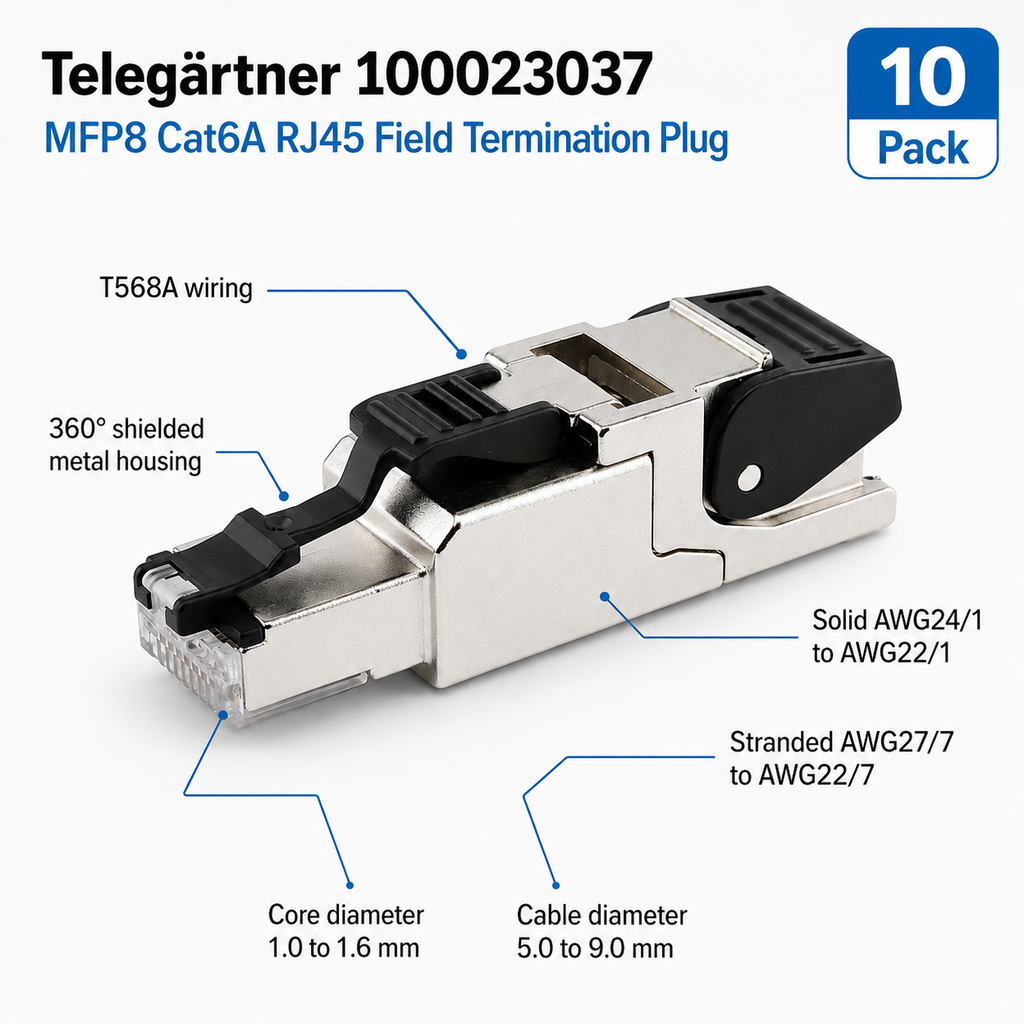

This version is designed for solid AWG24 to AWG22 and stranded AWG27 to AWG22 conductors, with insulated core diameters from 1.0 to 1.6 mm and overall cable diameters from 5.0 to 9.0 mm. The connector supports Cat6A performance and 10 Gigabit Ethernet, along with PoE, PoE+, and 4 Pair Power over Ethernet.

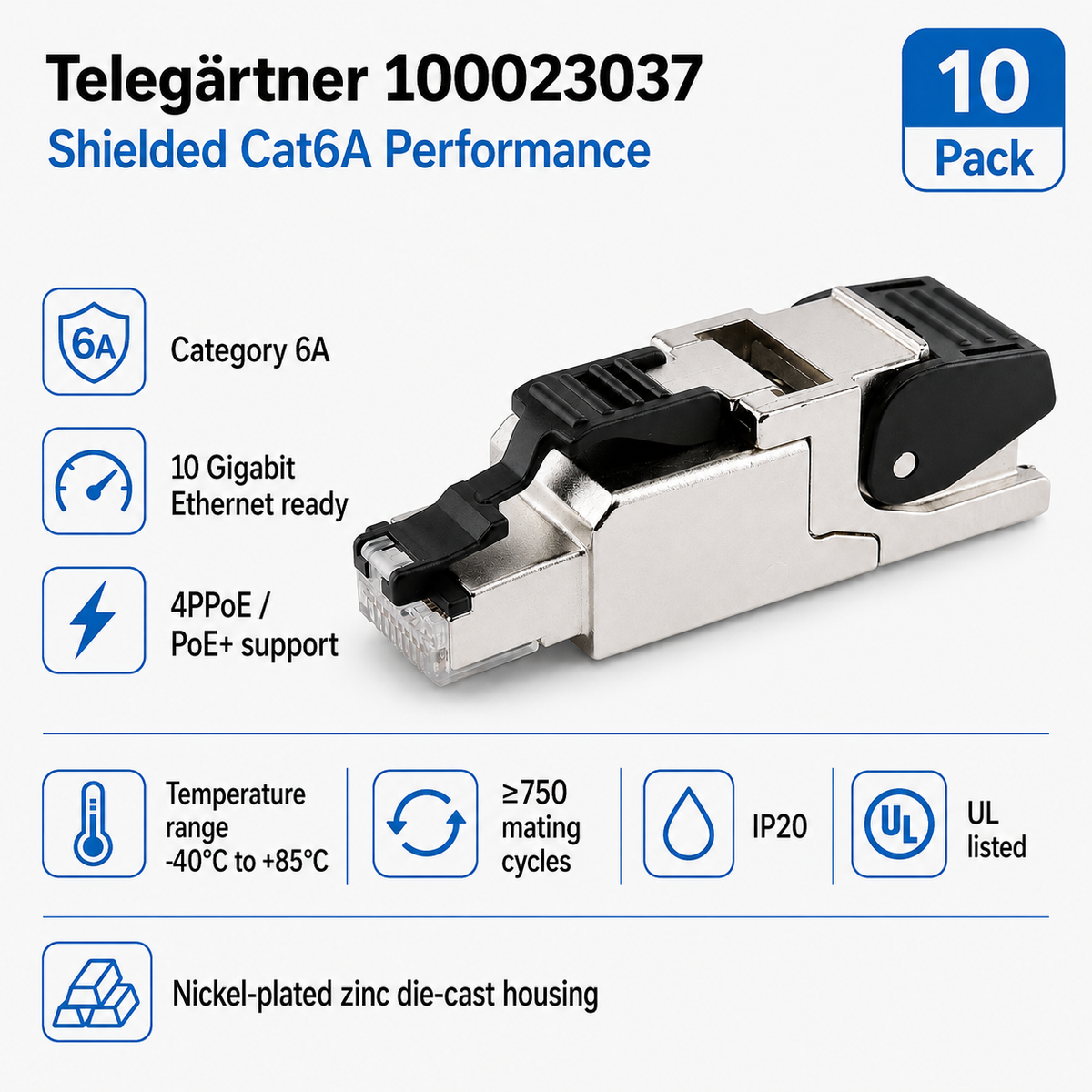

Key Specifications
- Manufacturer: Telegärtner
- Part Number: 100023037
- Alternate Part Number: J00026A2000
- Product Family: MFP8
- Connector Type: RJ45 Field Termination Plug
- Category: Cat6A
- Wiring Standard: T568A
- Shielding: Full metal housing with 360° shielding
- Solid Conductor Range: AWG24 to AWG22
- Stranded Conductor Range: AWG27 to AWG22
- Core Diameter: 1.0 to 1.6 mm
- Cable Diameter: 5.0 to 9.0 mm
- Ethernet Performance: Up to 10 Gigabit Ethernet
- Power over Ethernet: Supports PoE, PoE+, and 4PPoE
- Durability: More than 750 mating cycles
- Operating Temperature: -40 C to +85 C
- Ingress Protection: IP20
- Certification: UL Listed
- Included: Pre-assembled protection cap
- Quantity: Pack of 10 connectors

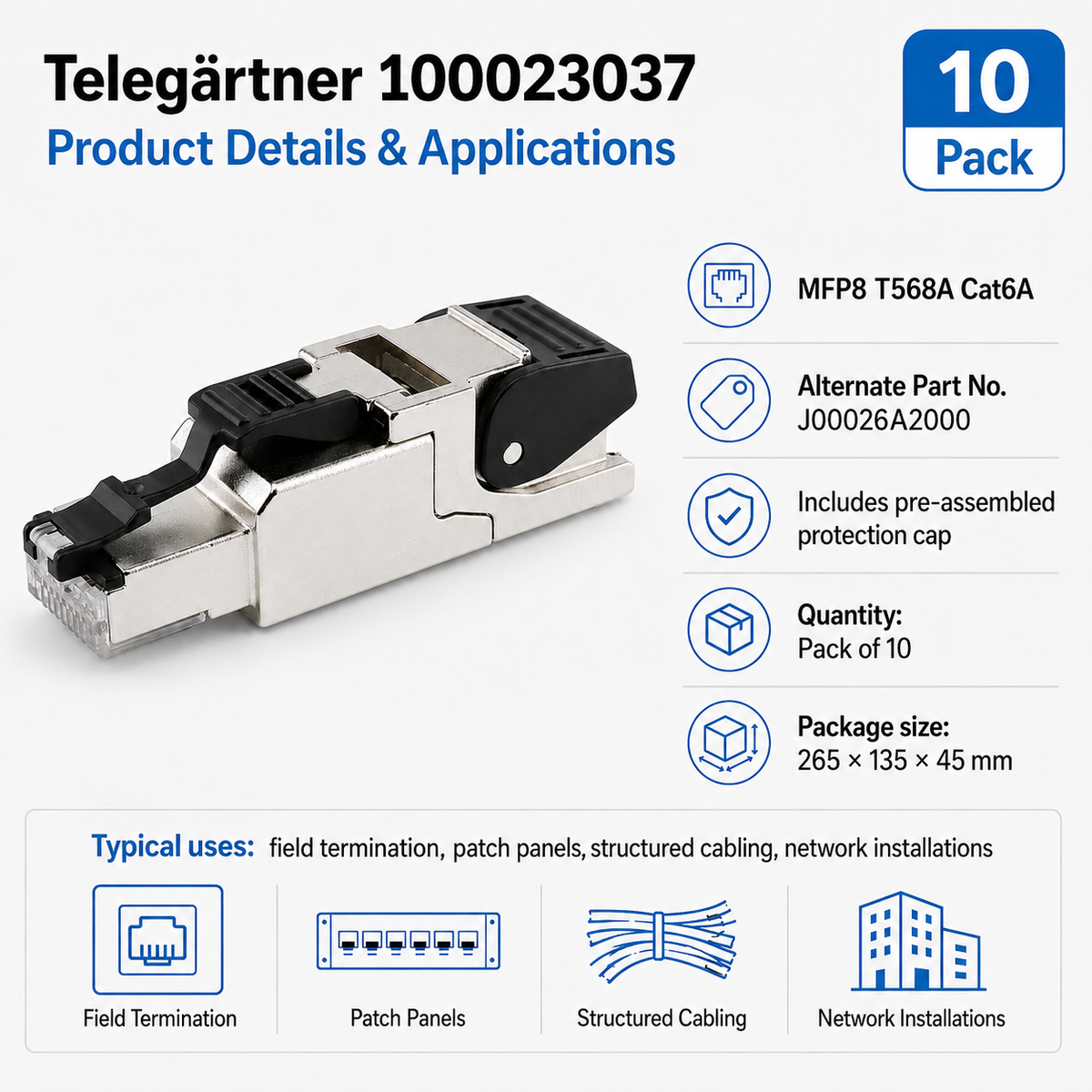

Typical Applications
- Cat6A Ethernet field termination
- Office and data center network cabling
- Building and structured cabling systems
- Wi-Fi access point connections
- IP camera and security system connections
- Distributed antenna system and telecom network connections
Installation Video
Watch the manufacturer installation video for additional guidance on assembling the MFP8 field termination connector.
