Description

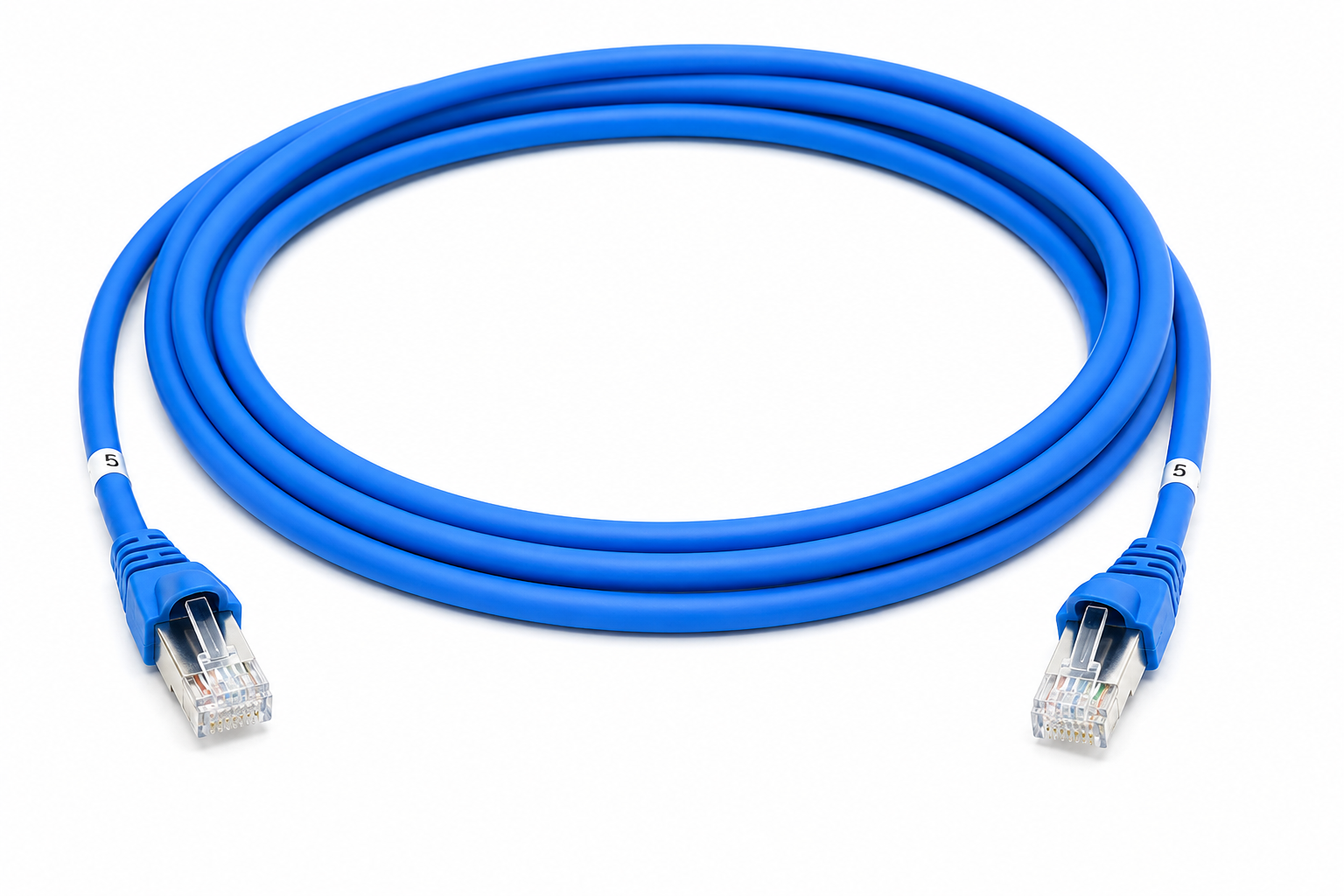

The Telegärtner 100008642 is a Cat6A RJ45 S/FTP shielded LSZH test cable designed specifically for use with a channel adaptor. This 5.0 m blue cable provides Class EA transmission performance and uses straight RJ45 connectors with TIA 568B 1:1 pin assignment.

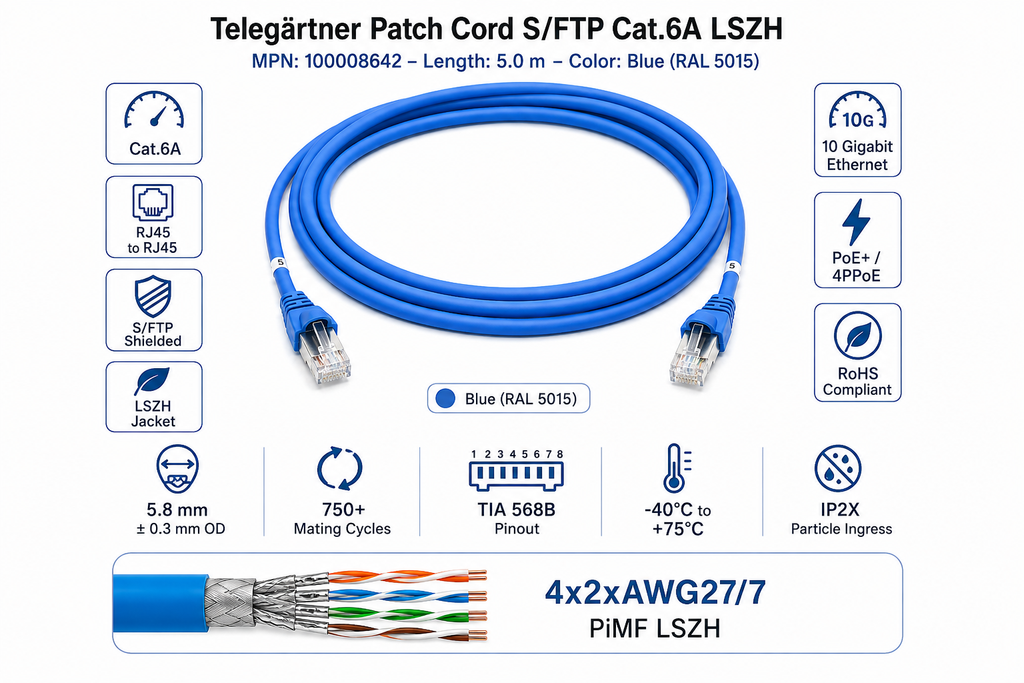

The cable features S/FTP shielding, an LSZH outer jacket, overmoulded strain relief, and a 4x2x0.46 PiMF cable construction. It supports 10 Gigabit Ethernet, PoE+, and 4 Pair Power over Ethernet, making it suitable for professional network testing and measurement applications requiring Cat6A/Class EA performance.
Key Specifications
- Manufacturer: Telegärtner
- Part Number: 100008642
- Alternate Part Number: L00003A0049
- EAN: 4018359249427
- Product Type: Test Cable for Channel Adaptor
- Connector Type: RJ45 to RJ45
- Category: Cat6A
- Transmission Class: Class EA
- Wiring Standard: TIA 568B, 1:1
- Shielding: S/FTP Shielded
- Cable Construction: 4x2x0.46 PiMF LSZH
- Outer Jacket: LSZH
- Cable Diameter: 5.8 mm ± 0.3 mm
- Length: 5.0 m
- Color: Blue
- Color Code: RAL 5015
- Ethernet Performance: Up to 10 Gigabit Ethernet
- Power over Ethernet: Supports PoE+ per IEEE 802.3at and 4PPoE per IEEE 802.3bt
- Current Carrying Capacity: 1 A at 50°C
- Durability: More than 750 mating cycles
- Insertion Force: Less than 30 N
- Operating Temperature: -40°C to +75°C
- Particulate Ingress Protection: IP2X
- Water Ingress Protection: IPX0
- Connector Standard: IEC 60603-7-51
- Compliance: RoHS Compliant
- Certification: UL Listed, GHMT PVP
- Quantity: 1 Cable
Typical Applications
- Cat6A channel testing and measurement
- Channel adaptor connections
- Structured cabling certification and verification
- Data center network testing
- Enterprise Ethernet testing
- 10 Gigabit Ethernet network testing
- Professional network installation and maintenance
Please Note: This is a specialized Telegärtner test cable intended for use with a channel adaptor. It is not simply a standard general-purpose patch cable.
