Description

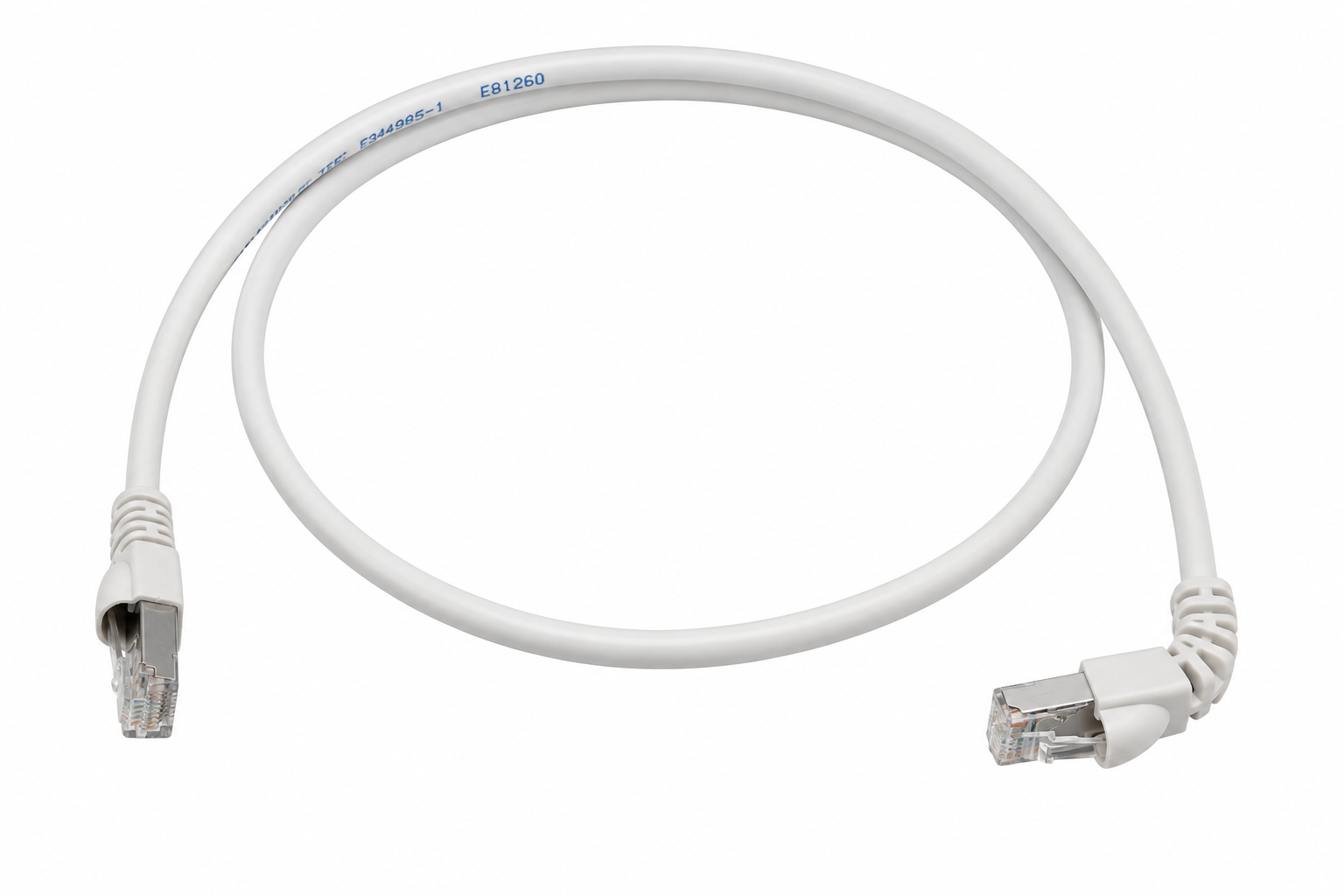

The Telegärtner 100008022 is a Cat6A RJ45 S/FTP shielded Ethernet patch cable featuring one straight 180° RJ45 connector and one 90° right-angle RJ45 connector. The angled connector is useful where equipment clearance is limited or where a standard straight patch cord would place unnecessary strain on the cable or port.

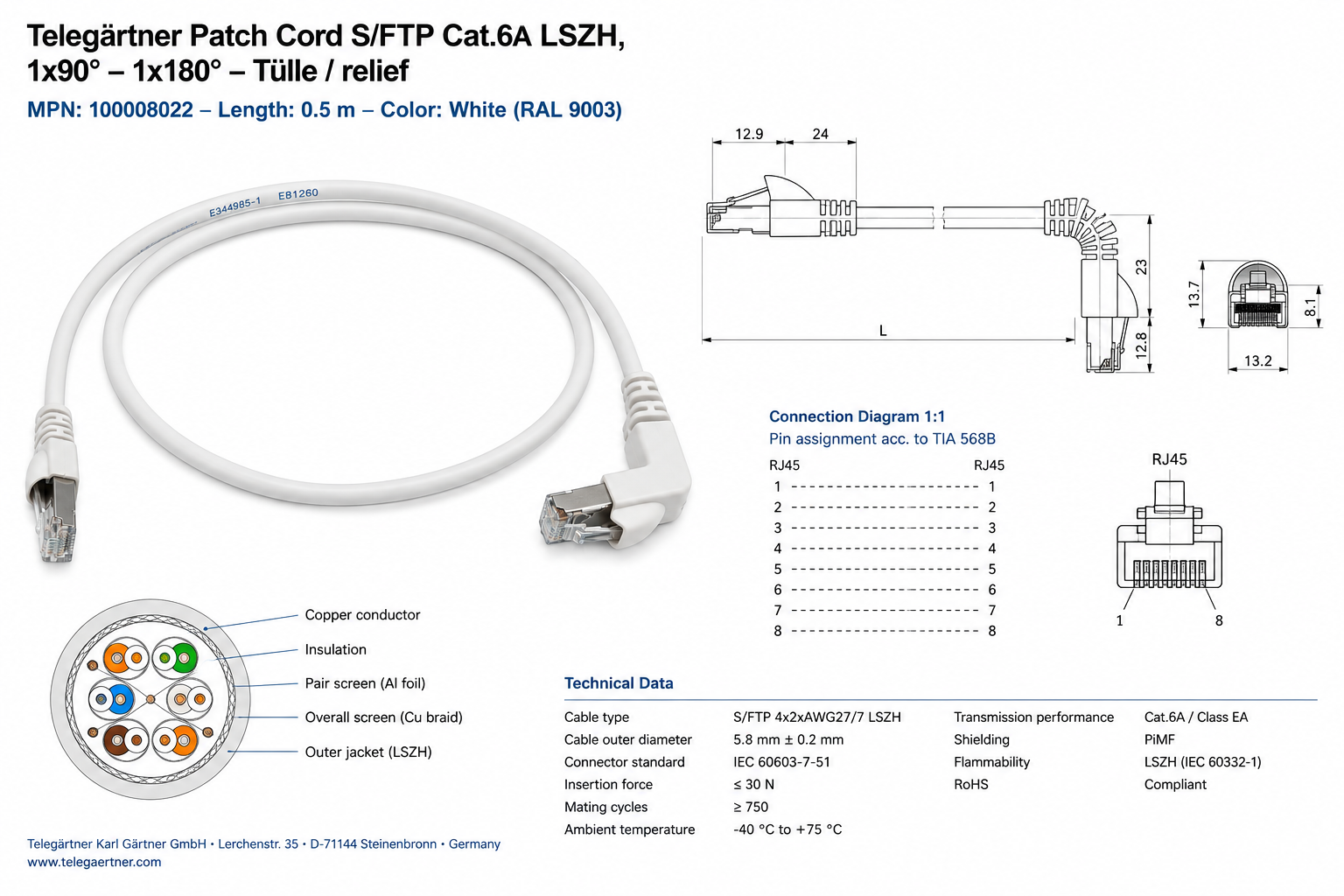

This 0.5 m white patch cable features an LSZH outer jacket, TIA 568B pin assignment, and 4x2xAWG27/7 cable construction. It supports Cat6A/Class EA transmission performance, 10 Gigabit Ethernet, PoE+, and 4 Pair Power over Ethernet applications.
Key Specifications
- Manufacturer: Telegärtner
- Part Number: 100008022
- Alternate Part Number: L00000A0203
- Product Type: Ethernet Patch Cable
- Connector Type: RJ45 to RJ45
- Connector Orientation: 1 x 90° Right Angle / 1 x 180° Straight
- Category: Cat6A
- Transmission Class: Class EA
- Wiring Standard: TIA 568B
- Shielding: S/FTP Shielded
- Cable Construction: 4x2xAWG27/7
- Outer Jacket: LSZH
- Cable Diameter: 5.8 mm ± 0.2 mm
- Length: 0.5 m
- Color: White
- Color Code: RAL 9003
- Ethernet Performance: Up to 10 Gigabit Ethernet per IEEE 802.3an
- Power over Ethernet: Supports PoE+ per IEEE 802.3at and 4PPoE per IEEE 802.3bt
- Current Carrying Capacity: 1 A at 50°C
- Durability: More than 750 mating cycles
- Insertion Force: Less than 30 N
- Operating Temperature: -40°C to +75°C
- Particulate Ingress Protection: IP2X
- Water Ingress Protection: IPX0
- Connector Standard: IEC 60603-7-51
- Compliance: RoHS Compliant
- Certification: UL Listed
- Quantity: 1 Cable
Typical Applications
- Cat6A Ethernet network connections
- Network switches and routers
- Patch panels and structured cabling systems
- Data center equipment
- Equipment racks and cabinets with limited clearance
- Wi-Fi access point connections
- PoE and PoE+ network devices
- IP cameras and security systems
- Telecom and DAS network equipment
Please Note: This cable has one 90° right-angle RJ45 connector and one straight 180° RJ45 connector.
