Description

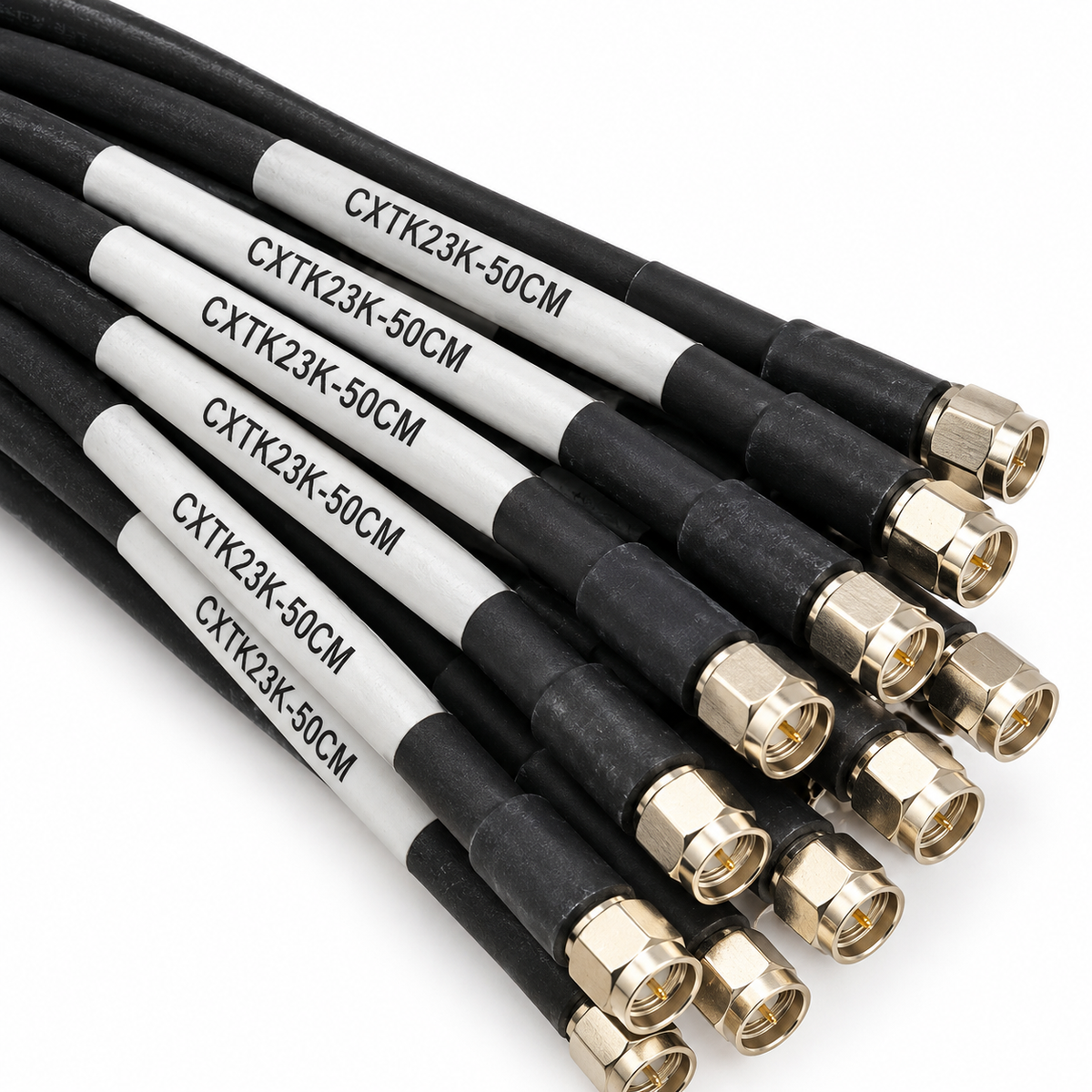

The Talley CAxT CXTK23K RG223 RF Cable Assembly is a professional-grade SMA Male to SMA Male coaxial cable assembly designed for RF, wireless, telecommunications, laboratory, test, and general signal interconnect applications. Built with RG223 coaxial cable and straight SMA Male connectors, this 50 Ohm assembly provides a compact and reliable RF connection for equipment requiring SMA interfaces.
The CXTK23K series uses black PVC-jacketed RG223 coaxial cable with a nominal cable diameter of 0.212 inch and 50 Ohm impedance. This DAS DEALS listing combines three available length options into one product: 20 cm (7.87 in), 40 cm (15.75 in), and 50 cm (19.69 in). Select the required cable length before ordering.
Key Specifications
- Manufacturer: Talley
- Brand / Series: CAxT
- Part Number Family: CXTK23K
- Product Type: RF Coaxial Cable Assembly
- Cable Type: RG223
- Connector 1: SMA Male
- Connector 2: SMA Male
- Connector Configuration: SMA Male to SMA Male
- Connector Orientation: Straight to Straight
- Impedance: 50 Ohm
- Cable Diameter: 0.212 in
- Jacket Material: PVC
- Jacket Color: Black

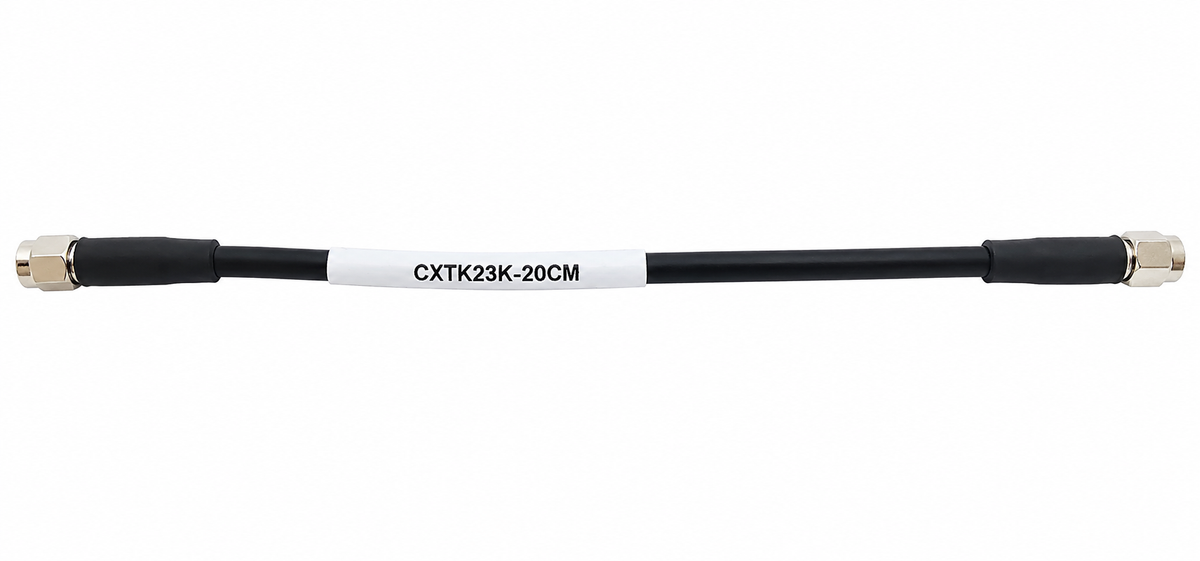

- Available Length: 20 cm / 7.87 in

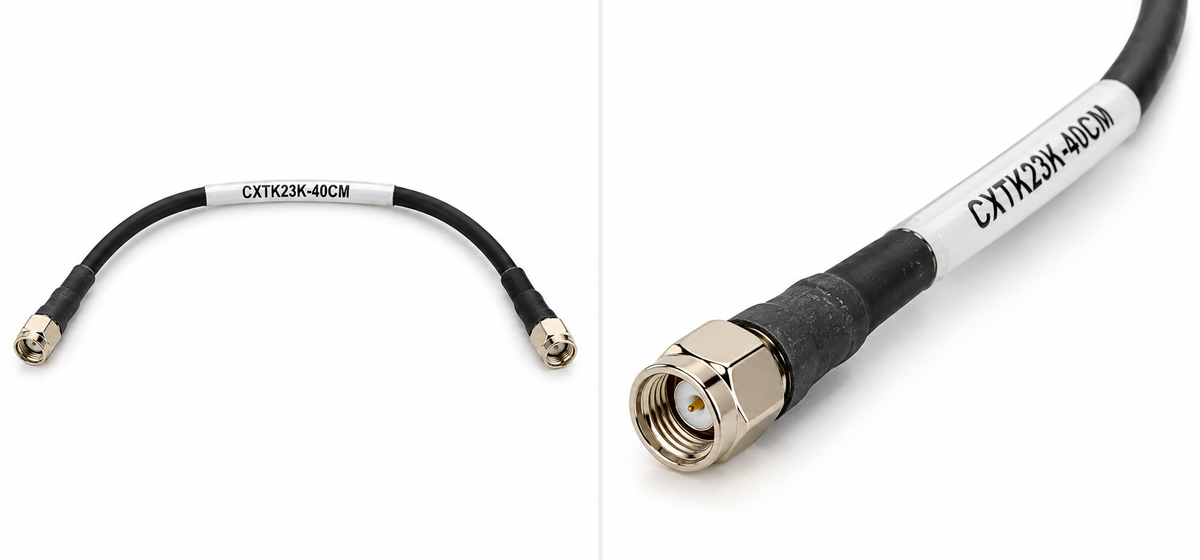

- Available Length: 40 cm / 15.75 in
- Available Length: 50 cm / 19.69 in
- Condition: New
- Quantity: 1 Cable Assembly per selected variant
Typical Applications
- RF test and measurement equipment
- Wireless communications equipment
- Laboratory RF setups
- Signal generators and analyzers
- Radio and antenna systems
- Telecommunications equipment
- Prototype and development systems
- Industrial RF installations
- Equipment interconnection requiring SMA interfaces
Please Note: This listing includes three selectable cable lengths: 20 cm (7.87 in), 40 cm (15.75 in), and 50 cm (19.69 in). Each variant includes one Talley CAxT CXTK23K RG223 SMA Male to SMA Male RF cable assembly in the selected length. Talley identifies the CXTK23K family as an RG223, 50 Ohm SMA Male to SMA Male cable assembly. Please select the required length and verify connector compatibility before ordering.
