Product Description

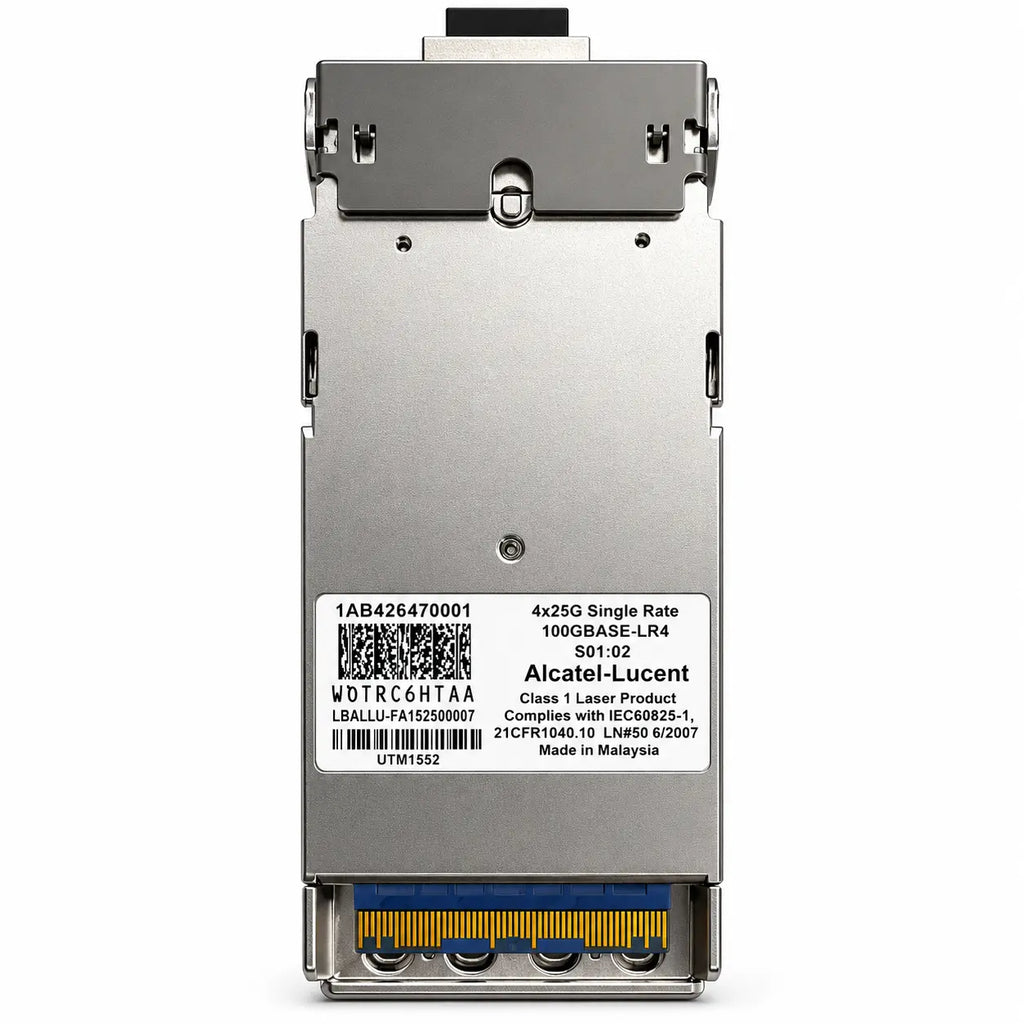

The Nokia Alcatel Lucent 1AB426470001 is a CFP2 100GBASE-LR4 optical transceiver designed for high-speed fiber optic networking applications. Supporting data rates from 103.125 Gbps to 112.2 Gbps, this transceiver uses four WDM-separated 1310 nm optical lanes over duplex single-mode fiber to deliver reliable 100G connectivity at distances up to 10 kilometers.
Featuring EML laser transmitters, PIN photodiode receivers, and integrated DDM/DOM diagnostics, the 1AB426470001 is ideal for carrier networks, ISP backbones, mobile backhaul, data center interconnects, enterprise networking, and high-capacity optical transport deployments. This module is commonly associated with Nokia and Alcatel Lucent optical networking equipment.
This listing is for the Nokia Alcatel Lucent 1AB426470001 CFP2 100GBASE-LR4 Optical Transceiver only.
Key Specifications
- Manufacturer: Nokia / Alcatel Lucent
- Part Number: 1AB426470001
- Product Type: Optical Transceiver
- Form Factor: CFP2
- Optical Standard: 100GBASE-LR4
- Data Rate: 103.125 to 112.2 Gbps
- Maximum Distance: 10 km
- Fiber Type: Single-Mode Fiber (SMF)
- Connector Type: Duplex LC
- Transmit Wavelength: 4 WDM-separated 1310 nm lanes
- Optical Budget: 6.3 dB minimum
- Transmitter Type: EML laser
- Receiver Type: PIN photodiode
- DDM/DOM Support: Yes
- Power Supply: +3.3 VDC
- Operating Temperature: 0°C to 70°C
- Supported Applications: 100G Ethernet, OTU4
- Compliance: 100GBASE-LR4, IEEE 802.3ba, CFP2 MSA, RoHS, CE, IEC60825-1, FDA Class 1 Laser, SFF-8431
