Description

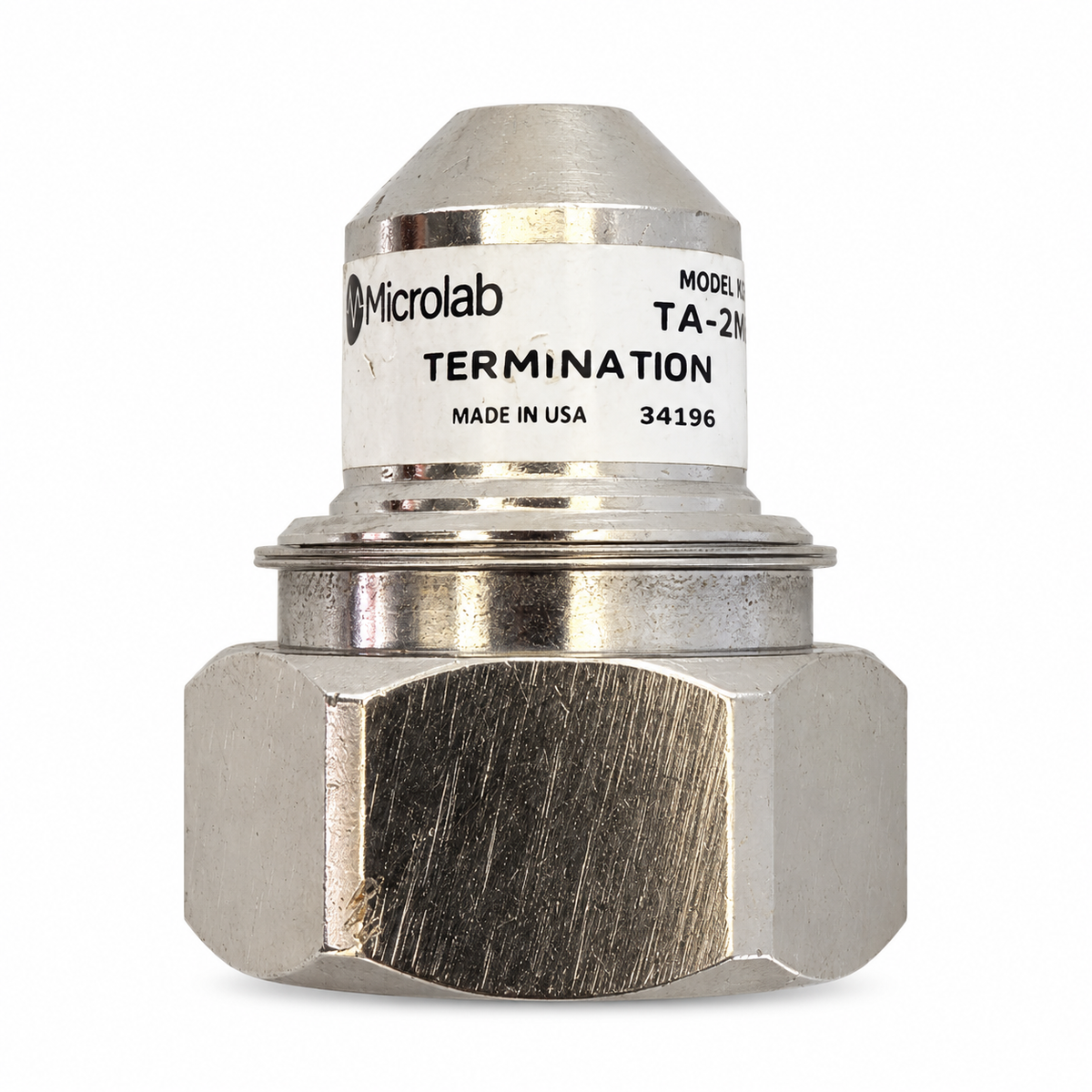

The Microlab TA-2MD is a 2 W coaxial RF load / termination designed for wireless and general RF applications. Featuring a 7-16 DIN Male connector, 50 Ohm impedance, and an operating frequency range of DC to 3 GHz, this compact termination provides a reliable resistive load for unused RF ports and other low-power coaxial termination applications.
The TA-2MD is rated for 2 W average power and up to 2 kW peak power, with a maximum VSWR of 1.15:1. It features a passivated aluminum housing, silver or triplate connector finish, and IP67 environmental protection. The unit is RoHS compliant and designed for professional wireless and general-purpose RF systems.
Key Specifications
- Manufacturer: Microlab
- Part Number: TA-2MD
- Product Type: Coaxial RF Load / Termination
- Connector Type: 7-16 DIN Male
- Impedance: 50 Ohm nominal
- Operating Frequency: DC to 3 GHz
- Average Power Rating: 2 W
- Peak Power Rating: 2 kW
- Maximum VSWR: 1.15:1
- Load Type: Resistive Film
- Ingress Protection: IP67
- Operating Temperature: -10°C to +50°C
- Power Derating: -1.5% per °C above 50°C
- Housing Finish: Passivated Aluminum
- Connector Finish: Silver or Triplate
- Maximum Length: Approximately 1.9 in / 49 mm
- RoHS: RoHS Compliant
- Condition: New
- Quantity: 1 Coaxial Load
Typical Applications
- Wireless RF systems
- RF port termination
- Unused coaxial port termination
- RF test and measurement setups
- Telecommunications equipment
- General-purpose RF applications
| Price Comparison | |||
| DAS DEALS | Tessco | Talley | Graybar |
|---|---|---|---|
| $24.99 | N/A | $35.38 | N/A |
| You Save | N/A | 29% | N/A |
Please Note: Price comparison is shown per unit. The Microlab TA-2MD is the 7-16 DIN Male version of the TA series 2 W coaxial load. Please verify connector type, frequency range, power requirements, and system compatibility before ordering.
