Description

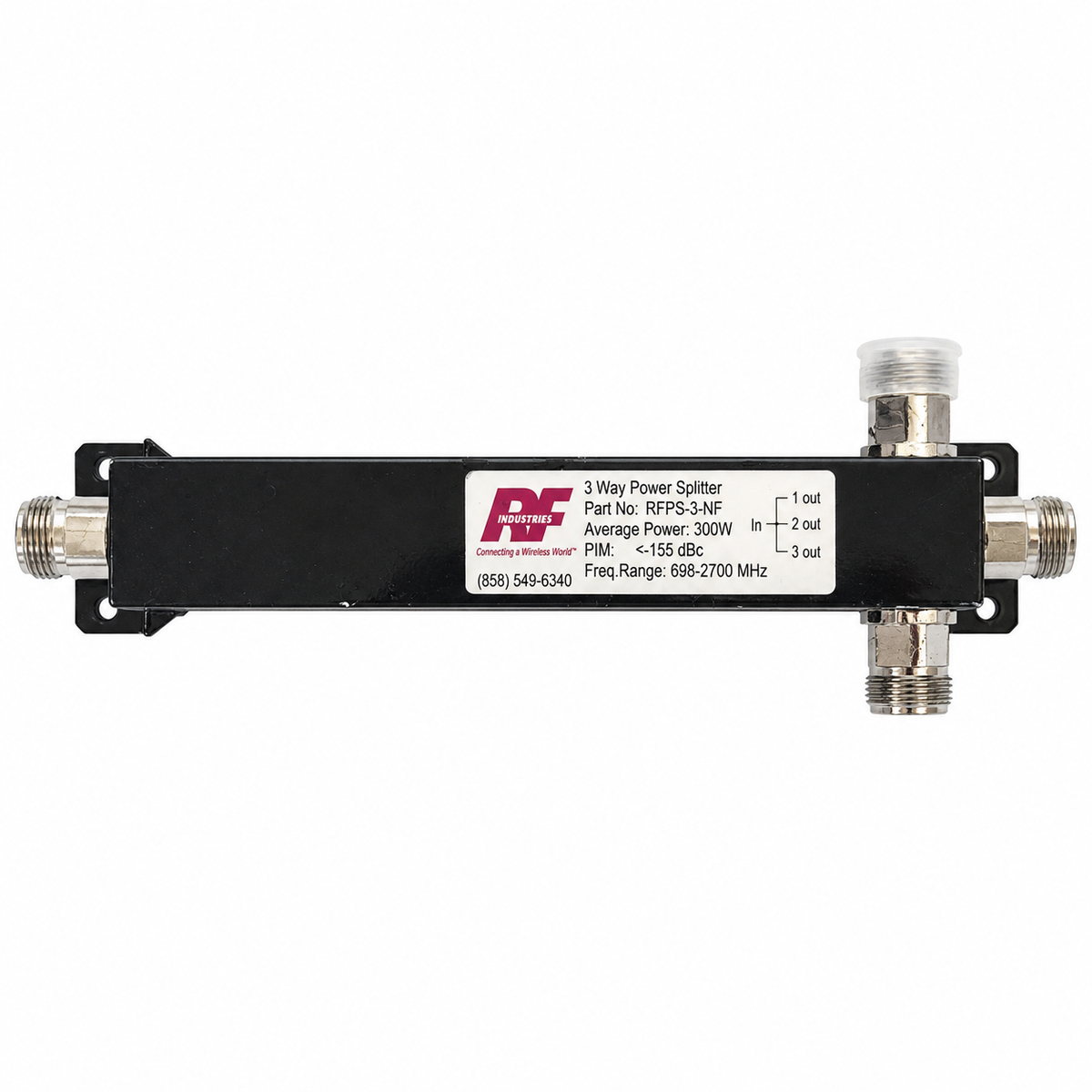

The RF Industries RF Connectors RFPS-3-NF is a 3-way reactive RF power splitter designed for professional wireless signal distribution across the 698 to 2700 MHz frequency range. Featuring N Female interfaces, 50 Ohm impedance, and low PIM performance, this passive splitter is suitable for RF distribution systems requiring reliable division of one RF signal into three signal paths.
The RFPS-3-NF provides 3rd order intermodulation performance of ≤ -155 dBc relative to carrier when tested with two +43 dBm carriers. It supports up to 300 W average power and 1 kW peak power, with insertion loss of less than 0.2 dB across the 698–2700 MHz operating band. Its rugged indoor/outdoor construction is rated IP65 and supports operating temperatures from -30°C to +75°C.
Key Specifications
- Manufacturer: RF Connectors, Division of RF Industries, Ltd.
- Part Number: RFPS-3-NF
- Product Type: Reactive RF Power Splitter
- Configuration: 3-Way
- Connector Type: N Female
- Impedance: 50 Ohm
- Operating Frequency: 698 to 2700 MHz
- 3rd Order Intermodulation: ≤ -155 dBc relative to carrier
- IMD Test Method: Two +43 dBm carriers
- Dissipative Loss: 0.3 dB at 698–2700 MHz
- Insertion Loss: Less than 0.2 dB at 698–2700 MHz
- Split Loss: 4.8 dB
- Maximum Average Power: 300 W
- Maximum Peak Power: 1 kW
- VSWR: ≤ 1.25
- Inner Contact Plating: Silver
- Outer Plating: White Bronze
- Operating Temperature: -30°C to +75°C
- Relative Humidity: Up to 100%
- Application Environment: Indoor / Outdoor
- Ingress Protection: IP65
- RoHS: RoHS Compliant
- Quantity: 1 Power Splitter
Typical Applications
- Distributed Antenna Systems (DAS)
- In-building wireless systems
- Cellular RF signal distribution
- RF signal splitting and distribution networks
- Base station and repeater installations
- Wireless infrastructure systems
- Indoor and outdoor telecommunications installations
Please Note: The RFPS-3-NF is a passive 3-way reactive power splitter with N Female interfaces and an operating frequency range of 698–2700 MHz. Please verify frequency range, connector interface, power requirements, and system compatibility before ordering.
