Description

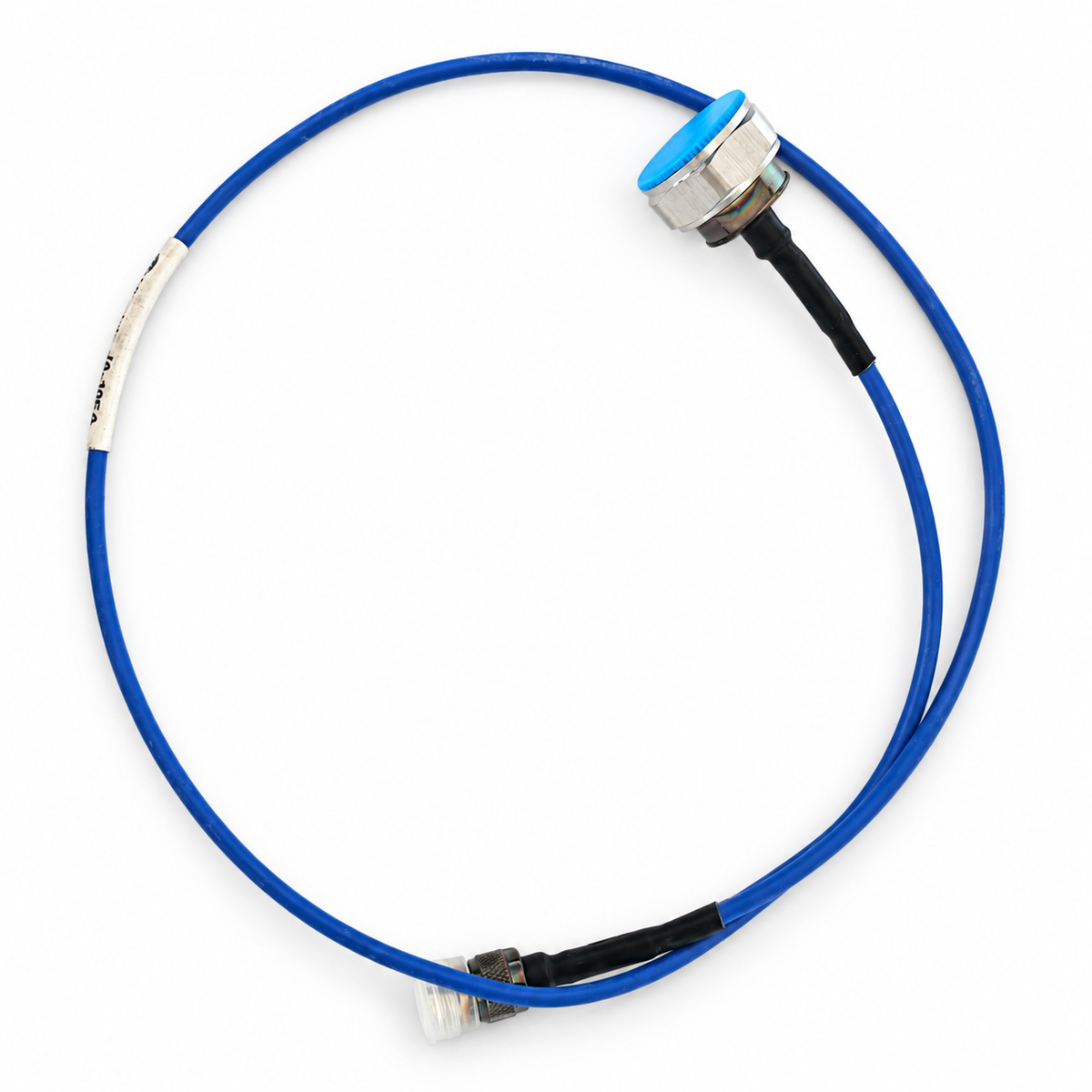

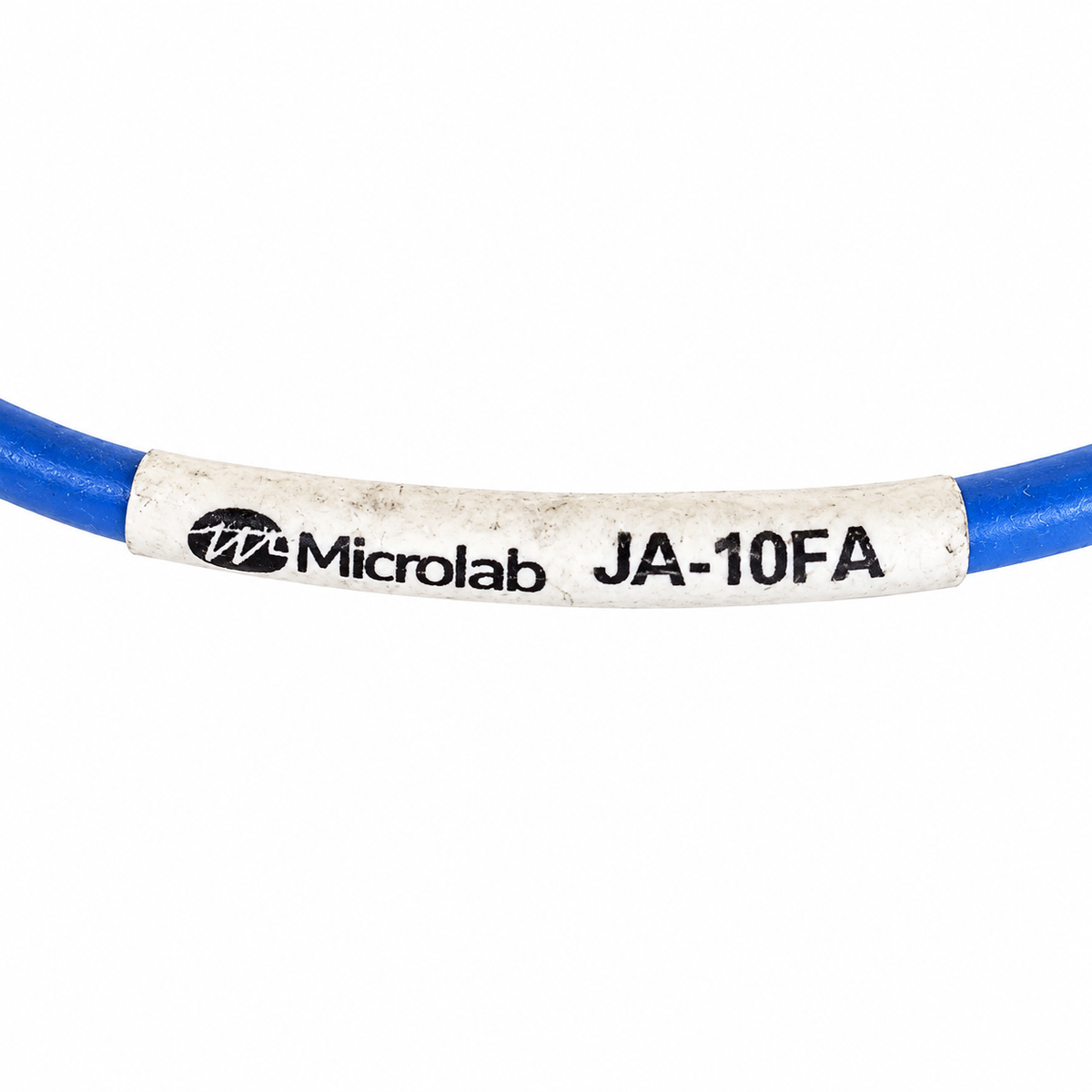

The Microlab JA-10FA is a professional 1 meter low PIM RF coaxial jumper cable designed for wireless, DAS, cellular, and telecommunications applications where low passive intermodulation and strong RF performance are required. This straight-to-straight cable assembly features an N Female connector on one end and a 7-16 Male connector on the other.
The JA-10FA operates from DC to 6 GHz and is designed for high-reliability RF installations requiring low insertion loss, excellent VSWR, and ultra-low PIM performance. It is rated for 100 W average power and up to 3 kW peak power, with typical PIM performance below -164 dBc and specified performance below -158 dBc. The cable uses a rugged FEP jacket and is CMP plenum rated.
Key Specifications
- Manufacturer: Microlab
- Part Number: JA-10FA
- Product Type: Low PIM RF Jumper Cable
- Cable Length: 1 m / Approximately 39 in
- Connector 1: N Female
- Connector 2: 7-16 Male
- Connector Configuration: Straight to Straight
- Frequency Range: DC to 6 GHz
- Impedance: 50 Ohm nominal
- PIM: Less than -158 dBc
- Typical PIM: Less than -164 dBc
- PIM Test Condition: Two +43 dBm carriers at 1800 MHz
- Average Power Rating: 100 W
- Peak Power Rating: 3 kW
- VSWR: Less than 1.22:1
- Shielding: Greater than 90 dB
- Dielectric Withstanding Voltage: 750 VAC maximum
- Connector Body Finish: Albaloy-Plated Brass
- Contacts: Silver / Copper-Plated Beryllium Copper
- Connector Dielectric: PTFE
- Connector Gaskets: Silicone Rubber
- Interface Standard: MIL-STD-348
- Cable Type: Jacketed 0.141 Rigid Type
- Center Conductor: Silver-Plated Copper
- Dielectric: Microporous PTFE
- Braid: Silver-Plated Flat Copper
- Outer Braid: Silver-Plated Copper Wire
- Jacket: Extruded FEP
- Jacket Rating: CMP Plenum Rated
- Operating Temperature: -40°C to +125°C
- RoHS: RoHS Compliant
- Condition: Open Box
- Quantity: 1 RF Jumper Cable
Typical Applications
- Distributed Antenna Systems (DAS)
- In-building wireless systems
- Public Safety Radio Systems
- Emergency Responder Communication Enhancement Systems (ERCES)
- Emergency Responder Radio Communication Systems (ERRCS)
- Public Safety DAS and BDA installations
- Cellular RF infrastructure
- Low PIM RF interconnect applications
- Base station and repeater installations
- Telecommunications equipment interconnections
- RF test and measurement systems
Please Note: This Microlab JA-10FA is offered in Open Box condition. Please verify connector configuration, cable length, frequency range, PIM requirements, and system compatibility before ordering.
