Description

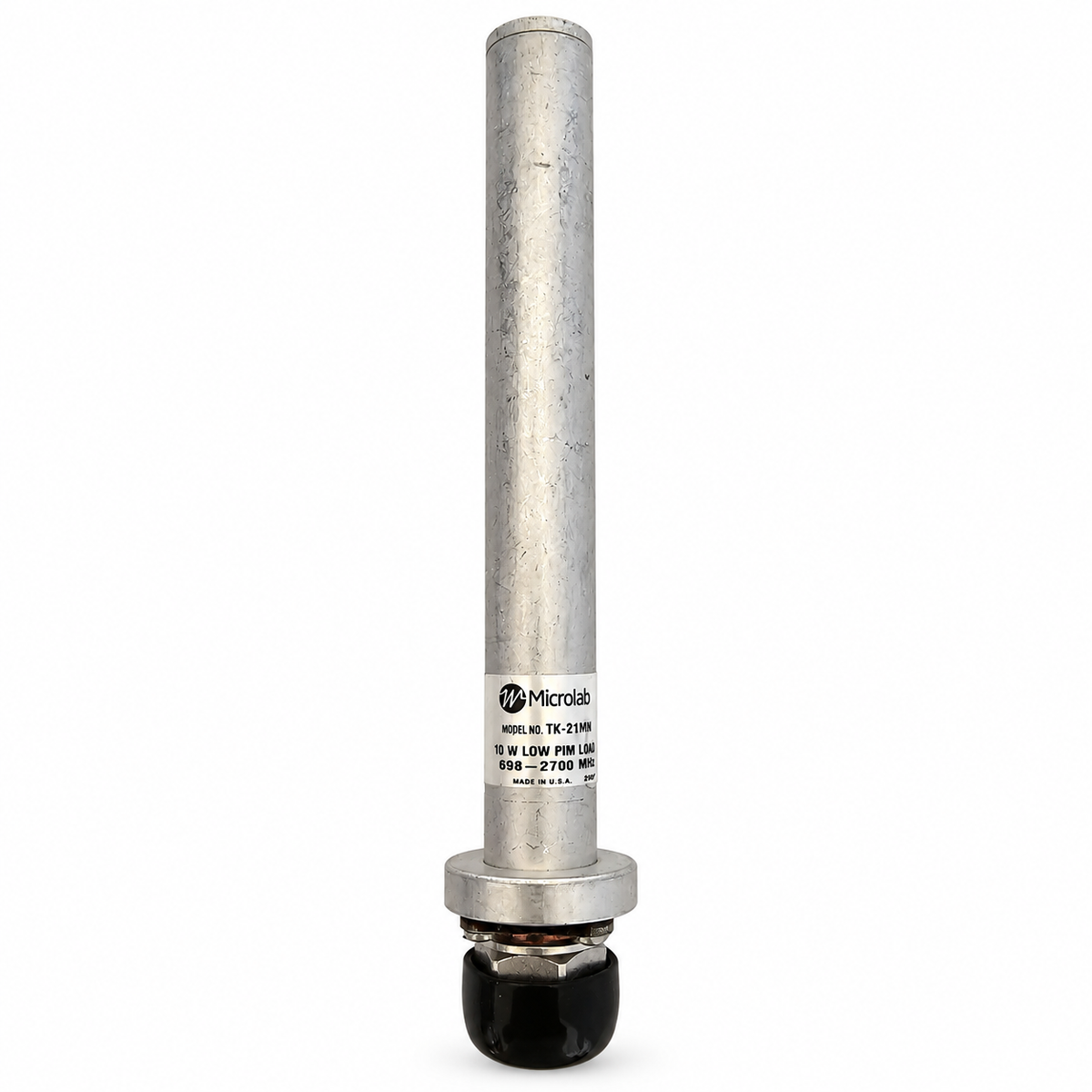

The Microlab TK-21MN is a 10 W low PIM cable load designed for professional wireless and RF applications where extremely low passive intermodulation performance is required. Featuring an N Male connector, 50 Ohm impedance, and an operating frequency range of 698 to 2700 MHz, the TK-21MN is well suited for terminating unused RF ports during system testing and PIM measurement.
The TK-21MN is rated for 10 W average power and up to 5 kW peak power, with typical PIM performance of -175 dBc and specified performance of less than -160 dBc when tested with two 1900 MHz, 5 W tones at 25°C. It provides low VSWR, a compact passivated aluminum housing, IP64 environmental protection, and includes two mounting clips for installation.
Key Specifications
- Manufacturer: Microlab
- Part Number: TK-21MN
- Product Type: Low PIM Cable Load
- Connector Type: N Male
- Impedance: 50 Ohm nominal
- Operating Frequency: 698 to 2700 MHz
- Average Power Rating: 10 W
- Peak Power Rating: 5 kW
- Power Derating: -1.2% per °C above 55°C ambient
- Typical PIM: -175 dBc
- Specified PIM: Less than -160 dBc
- PIM Test Conditions: Two 1900 MHz, 5 W tones at 25°C
- VSWR: Less than 1.20:1
- Typical VSWR: 1.10:1
- Operating Environment: Indoor
- Operating Temperature: -35°C to +55°C ambient
- Ingress Protection: IP64
- Maximum Surface Temperature: +65°C per IEC 60950
- Housing Finish: Passivated Aluminum
- Connector Finish: Triplate
- Mounting: Two mounting clips included
- Nominal Weight: 0.35 lb / 160 g
- RoHS: RoHS Compliant
- Quantity: 1 Cable Load
Typical Applications
- Passive Intermodulation (PIM) testing
- Terminating unused ports in RF test setups
- Wireless RF system testing
- DAS and in-building wireless testing
- Cellular RF measurement systems
- Laboratory and field RF test equipment
- Low PIM RF termination applications
Please Note: The TK-21MN is the N Male version of the Microlab TK-21 low PIM cable load series and is intended for indoor applications. Please verify connector type, frequency range, power requirements, and system compatibility before ordering.
