Description

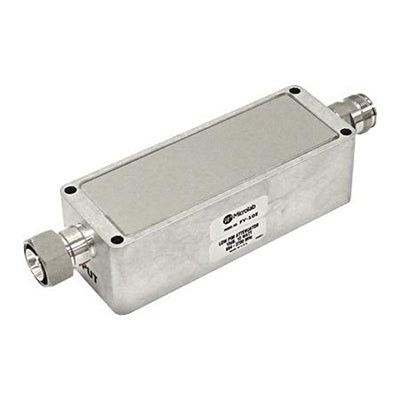

The Microlab FY-06N is a high-quality, low-PIM RF attenuator designed for wideband signal control in indoor wireless systems. Supporting frequencies from 694 to 2700 MHz, this unit provides 6 dB attenuation and is suitable for DAS, in-building wireless, small cell, multiband antenna, and RF test applications.
Housed in a rugged passivated aluminum body, the FY-06N features N-Type male-to-female connectors and supports 10W average power based on the product label. Designed for low VSWR and low passive intermodulation performance, it is useful for reducing RF signal levels, balancing system paths, and supporting wireless infrastructure deployments.
Key Specifications
- Manufacturer: Microlab
- Model / MPN: FY-06N
- Product Type: Low-PIM RF Attenuator
- Attenuation: 6 dB label rating / 6.5 dB nominal per datasheet
- Frequency Range: 694–2700 MHz
- Connector Type: N-Type Male to N-Type Female
- Power Rating: 10W average
- VSWR: <1.25:1 from 694–2500 MHz; <1.35:1 from 2500–2700 MHz
- PIM / Intermodulation: <–110 dBm using +37 dBm × 2 tones
- Impedance: 50 Ohm
- Housing: Passivated aluminum
- Operating Temperature: –20°C to +70°C
- Applications: DAS, LTE, 5G, small cell, in-building wireless, RF testing, and telecom infrastructure
- Condition: Used / Surplus
- Includes: Attenuator only; no cables, adapters, or accessories unless shown
