Description

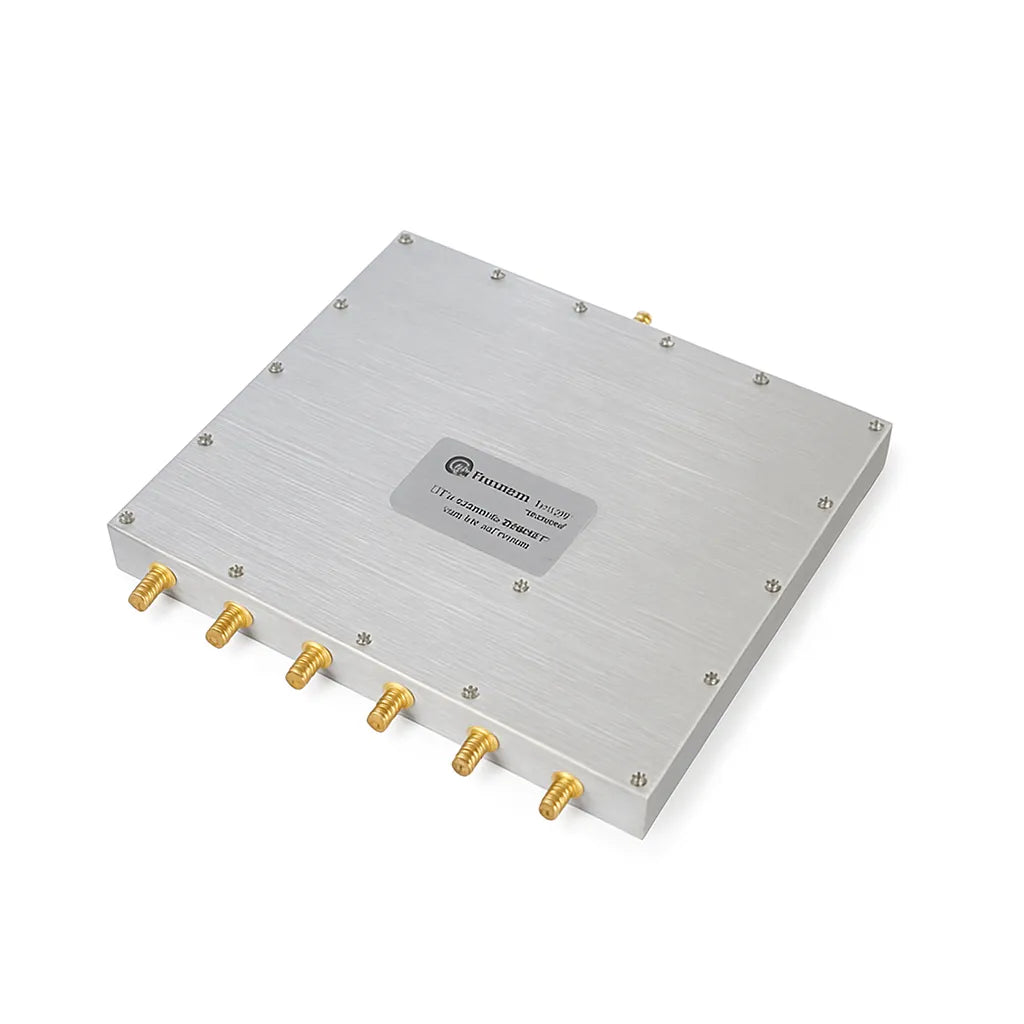

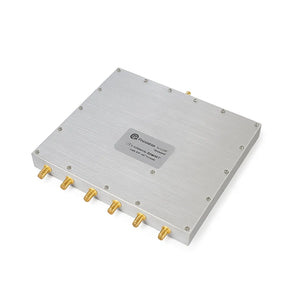

The Microlab D6-69FF is a 6-way Wilkinson RF power splitter designed for multiband RF systems operating from 694 to 2700 MHz. Featuring SMA Female connectors, this passive RF component is used for signal distribution in indoor DAS networks, small cell systems, wireless infrastructure, RF lab setups, and telecom test applications.
Designed for applications requiring output isolation and moderate power handling, the D6-69FF offers 5W average power, >20 dB isolation, 1.0 dB insertion loss, and <1.40:1 VSWR across all ports. Its passivated aluminum housing and gold-plated SMA female connectors provide reliable performance in controlled indoor RF environments.
Key Specifications
- Manufacturer: Microlab
- Model / MPN: D6-69FF
- Product Type: 6-Way Wilkinson RF Power Splitter / Divider
- Frequency Range: 694–2700 MHz
- Number of Outputs: 6
- Connector Type: SMA Female
- Average Power: 5W
- Insertion Loss: 1.0 dB
- Isolation: >20 dB
- VSWR: <1.40:1 all ports
- Impedance: 50 Ohm
- Housing: Passivated aluminum
- Operating Temperature: –30°C to +60°C
- RoHS Compliant: Yes
- Applications: DAS, LTE, 5G, small cell, wireless infrastructure, RF lab, and telecom test systems
