Description

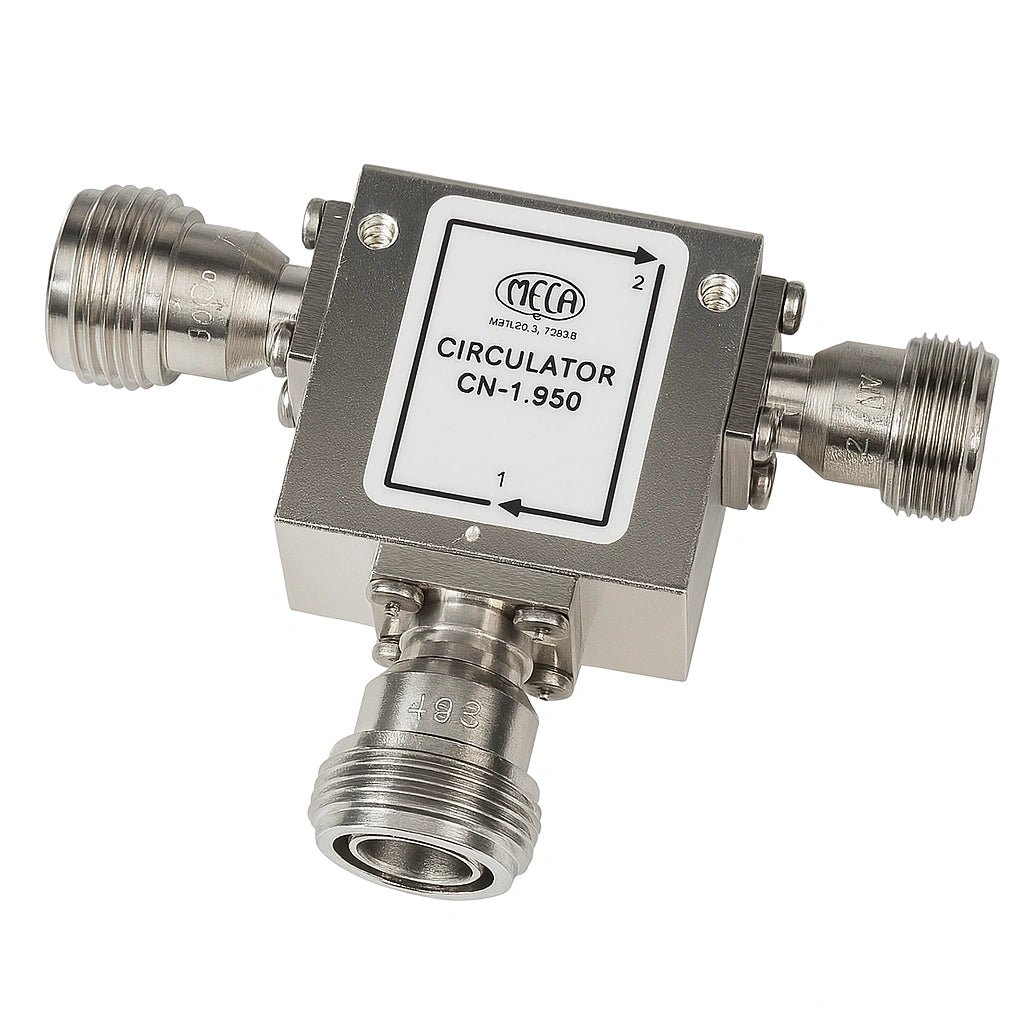

The MECA CN-1.950 is a high-power 3-port RF coaxial circulator designed for applications requiring directional signal routing, isolation, and equipment protection. Operating from 1.7 to 2.2 GHz, this passive RF component supports up to 150 watts and features N-Female connectors.
Built with a compact, rugged housing, the CN-1.950 is suitable for wireless infrastructure, DAS systems, LTE / PCS-band RF paths, RF lab setups, telecom testing, and system-level integration where controlled signal flow and port isolation are important. This unit is used and may show minor cosmetic wear from storage or previous use.
Key Specifications
- Manufacturer: MECA Electronics
- Model / MPN: CN-1.950
- Product Type: RF / Microwave Coaxial Circulator
- Port Configuration: 3-Port Circulator
- Frequency Range: 1.7–2.2 GHz / 1700–2200 MHz
- Power Handling: 150 Watts
- Connector Type: N-Female on all ports
- Impedance: 50 Ohm
- Insertion Loss: Published nominal value approx. 0.4 dB
- VSWR: Published max value approx. 1.25:1
- Isolation: Published minimum value approx. 20 dB
- Applications: DAS, LTE, PCS-band wireless, RF labs, telecom test systems, and wireless infrastructure
- Condition: Used
- Includes: Unit only; no cables, adapters, manuals, or accessories unless shown
