Description

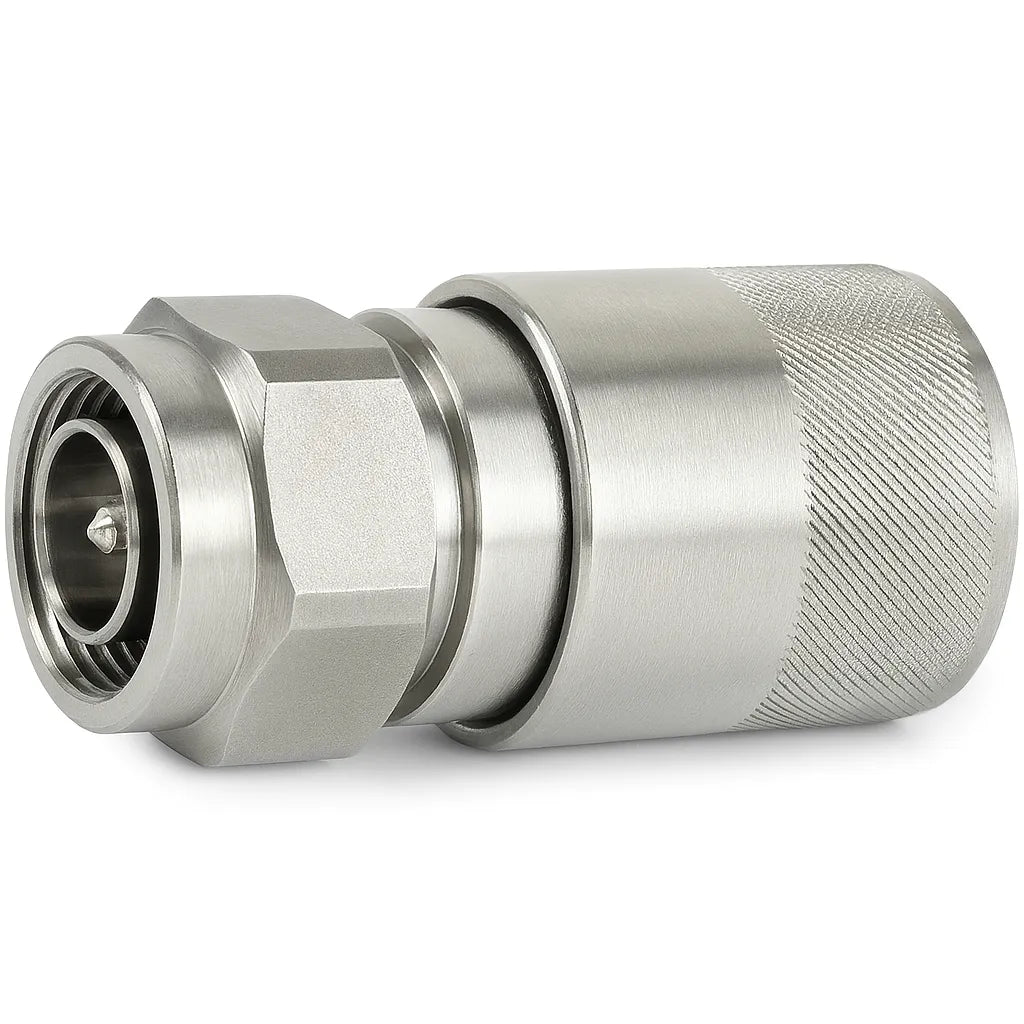

The JMA Wireless UXP-DM-78 is a 7-16 DIN Male RF connector designed for 7/8 inch annular coaxial cable used in DAS, 5G, LTE, macro site, rooftop, antenna feed, base station, and telecom infrastructure applications. This 50 Ohm low PIM connector supports DC to 6 GHz operation and is engineered for reliable RF performance in demanding indoor and outdoor wireless network deployments.
According to the JMA datasheet, the UXP-DM-78 provides typical 3rd order IMD/PIM performance of -161 dBc, typical insertion loss of 0.05 dB per connector, average power handling of 3000 W at 900 MHz, and a maximum peak power rating of 40 kW. The connector supports IP68 immersion and IP66 water jetting performance when mated or unmated and is tested for vibration, thermal shock, mechanical shock, UV exposure, and corrosion resistance.
Key Specifications
- Manufacturer: JMA Wireless
- Part Number: UXP-DM-78
- Connector Type: 7-16 DIN Male RF Connector
- Cable Type: 7/8 inch annular coaxial cable
- Impedance: 50 Ohm
- Operating Frequency: DC to 6 GHz
- Typical PIM / IMD: -161 dBc typical
- Typical Insertion Loss: 0.05 dB per connector
- Average Power: 3000 W at 900 MHz
- Peak Power: 40 kW maximum
- DC Test Voltage: 4000 V
- Shielding Effectiveness: Less than -130 dB at 0 to 1 GHz
- Interface Durability: 500 cycles
- Environmental Rating: IP68 immersion, IP66 water jetting
- Operating Temperature: -55 C to +85 C
- Cable Preparation Tool: SP-78, no coring required
- Torque Wrench: TQ-114-F18, 18 lbf-ft / 24.4 N-m
- Compression Tool Options: HCG-CC with HCG-FS-78-01 or HCG-FRAMESET-7/8
- Weight: 0.629 lb / 285.3 g
- Application: DAS, 5G, LTE, cellular, macro sites, rooftop installations, antenna feeds, base stations, and telecom infrastructure
Compatible RF Cable Types
- CommScope AVA5
- CommScope AVA5RK
- CommScope AL5
- CommScope LDF5
- CommScope VXL5
- RFS LCF78
- RFS LCF78-50JL
- RFS UCF78
- NK Draka RFA78
- Eupen EC5
- GT-SAT HCTAY-50-22
- Leoni Flexline 7/8 inch R
- LS/Superior Essex LHF 22D
- LS/Superior Essex LHF-22DU
- Hansen RF5078
- Rosenberger SL 7/8 inch
- Hengxin HCTAY-50-22
- Other compatible 7/8 inch annular coaxial cables, subject to confirmation with JMA Technical Support
Price Comparison
| Price Comparison | |||
| DAS DEALS | Tessco | Talley | Graybar |
|---|---|---|---|
| $34.99 | $49.56 | $49.15 | $53.08 |
| You Save | 29% | 29% | 34% |
Please Note: Price comparison is shown per connector. Please confirm compatibility with your exact cable type and installation requirements before purchase.
Installation Video
Watch the manufacturer installation video for additional guidance before installing this connector.
