Description

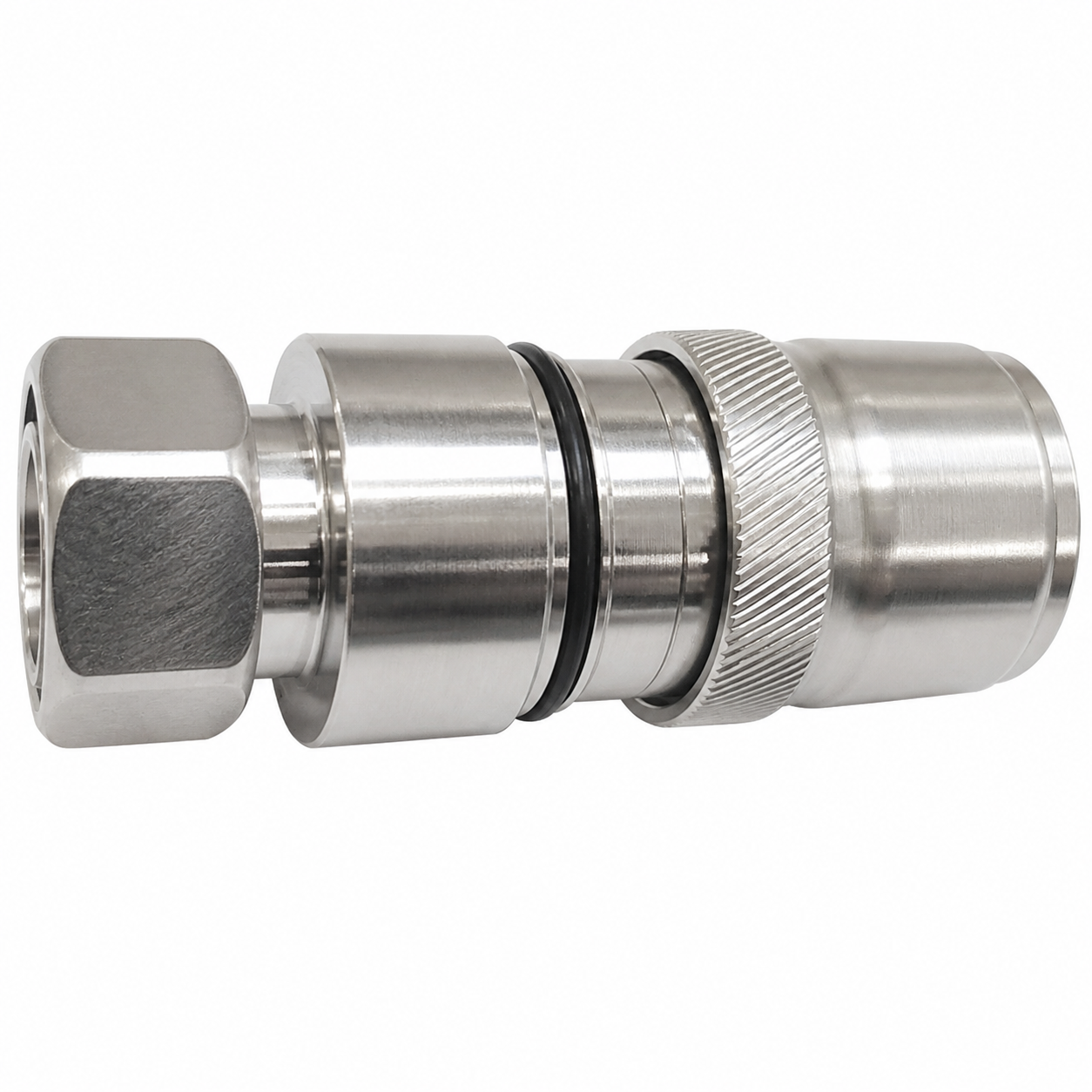

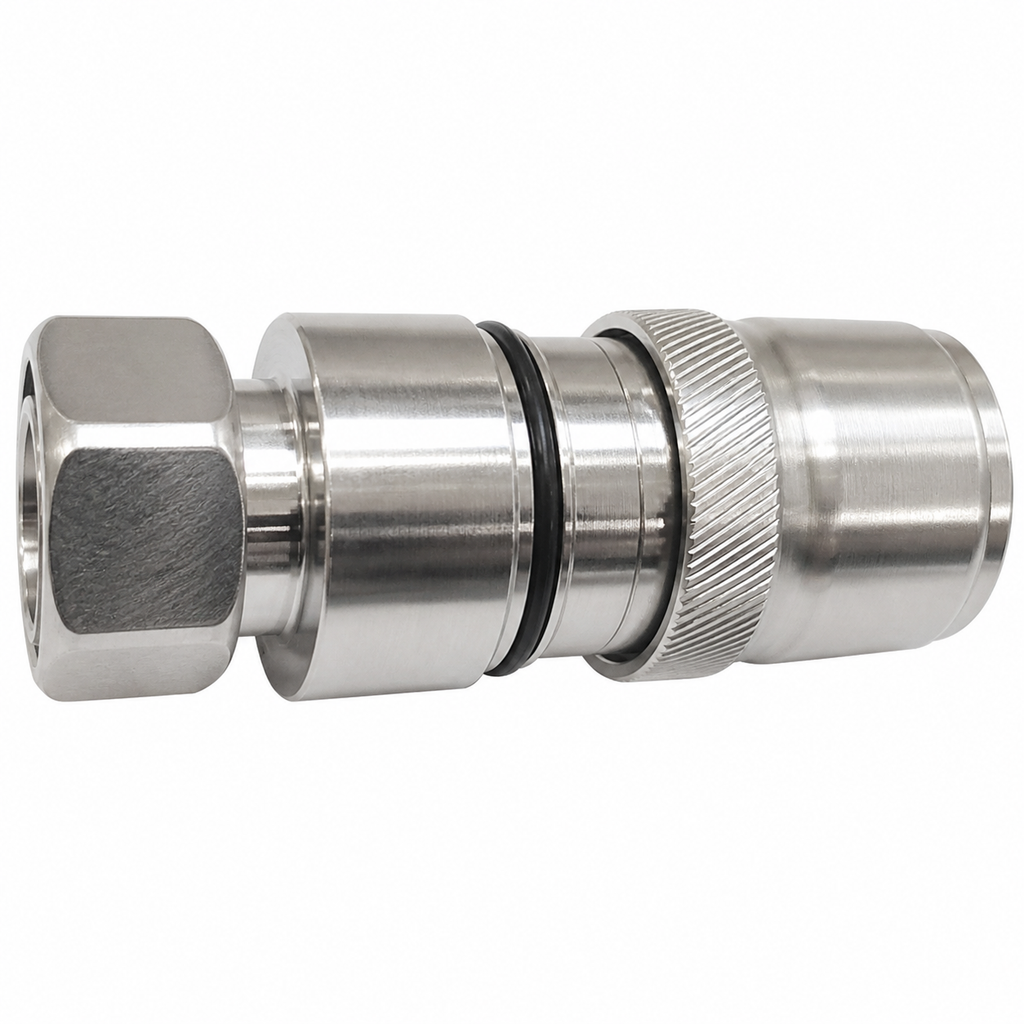

The JMA Wireless UXP-4MT-14S is a 4.3-10 Male torque RF connector designed for 1/4 inch superflexible coaxial cable used in DAS, 5G, LTE, 4G, private wireless, and telecom infrastructure applications. This 50 Ohm connector supports DC to 6 GHz operation and is engineered for reliable low-PIM performance with typical insertion loss of 0.05 dB per connector.

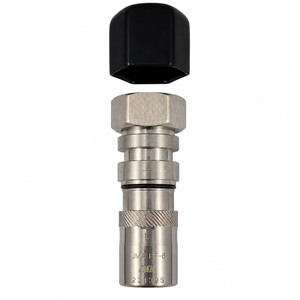

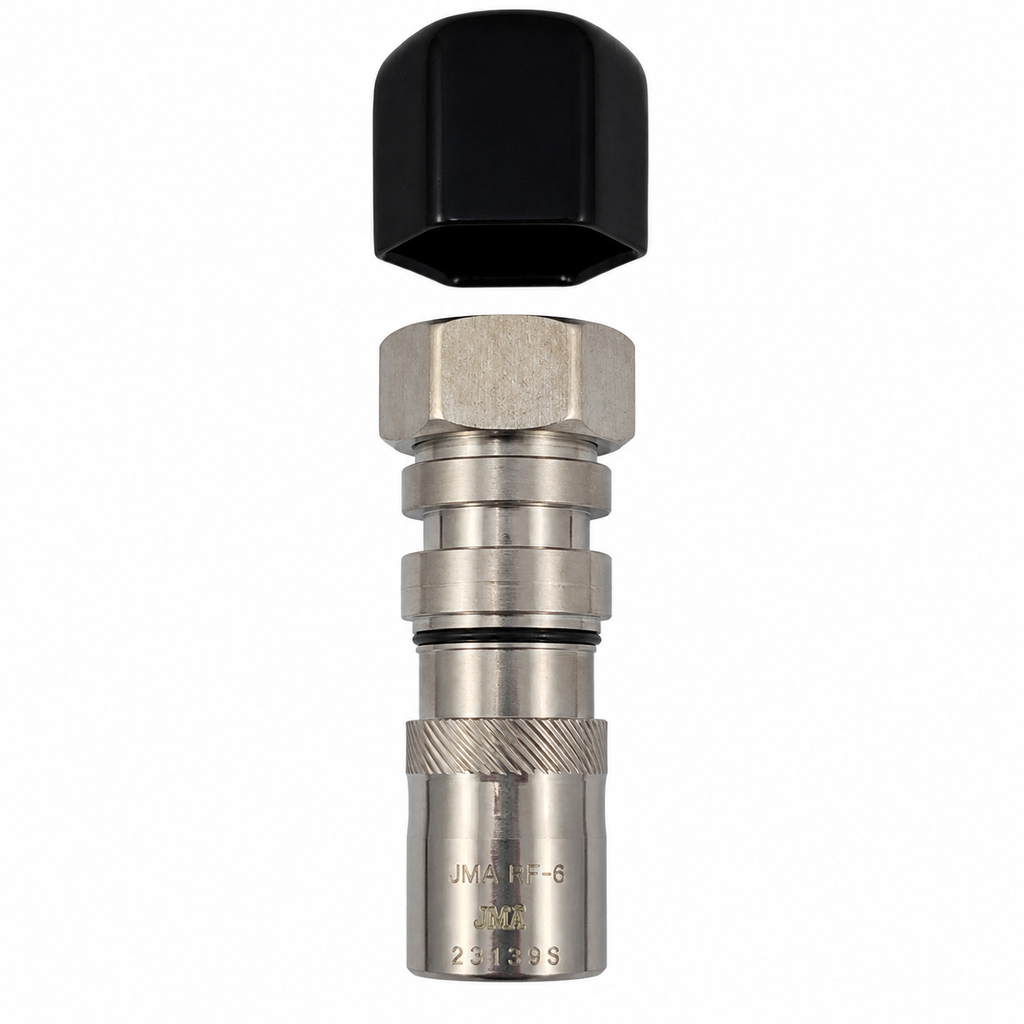

According to the JMA datasheet, the UXP-4MT-14S has typical 3rd order IMD/PIM performance of -161 dBc, average power handling of 600 W at 900 MHz, peak power of 15 kW maximum, and a compact weight of approximately 0.220 lb. It supports multiple 1/4 inch superflexible cable types and is compatible with JMA's weather protection system for outdoor-ready wireless network deployments.
Key Specifications
- Manufacturer: JMA Wireless
- Part Number: UXP-4MT-14S
- Connector Type: 4.3-10 Male Torque Connector
- Cable Type: 1/4 inch superflexible coaxial cable
- Impedance: 50 Ohm
- Operating Frequency: DC to 6 GHz
- Typical PIM: -161 dBc
- Typical Insertion Loss: 0.05 dB per connector
- Average Power: 600 W at 900 MHz
- Peak Power: 15 kW maximum
- Weight: Approximately 0.220 lb
- Approx. Dimensions: 2.38 inch length x 0.974 inch diameter
- Application: DAS, 5G, LTE, 4G, private wireless, private network, and telecom infrastructure
Compatible RF Cable Types
- JMA14S-50
- JMA14SP-50
- Trilogy APC014J50
- Commscope FSJ1-50A
- Commscope FSJ1RK-50B
- PTS1-50-P
- Hansen RF5014S
- Hansen RF5014SZ
- Wireless Supply WS14/SF
- HUBER+SUHNER SUCOFEED 1/4 HFFR
- RFS SCF14-50J
- Eupen EC1-50-HF
- Times SPP-250-LLPL
- Other compatible 1/4 inch superflexible coaxial cables
Price Comparison
| DAS DEALS | Tessco | Talley | Graybar |
|---|---|---|---|
| $22.99 | $27.76 | $29.25 | $32.03 |
| You Save | 17% | 21% | 28% |
Please Note: Price comparison is shown per connector. Please confirm compatibility with your cable type and installation requirements before purchase.
Installation Video
Watch the manufacturer installation video for additional guidance before installing this connector.
