Description

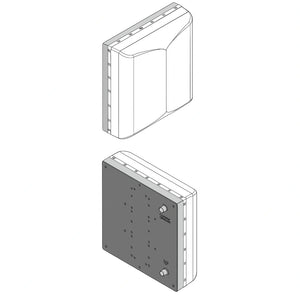

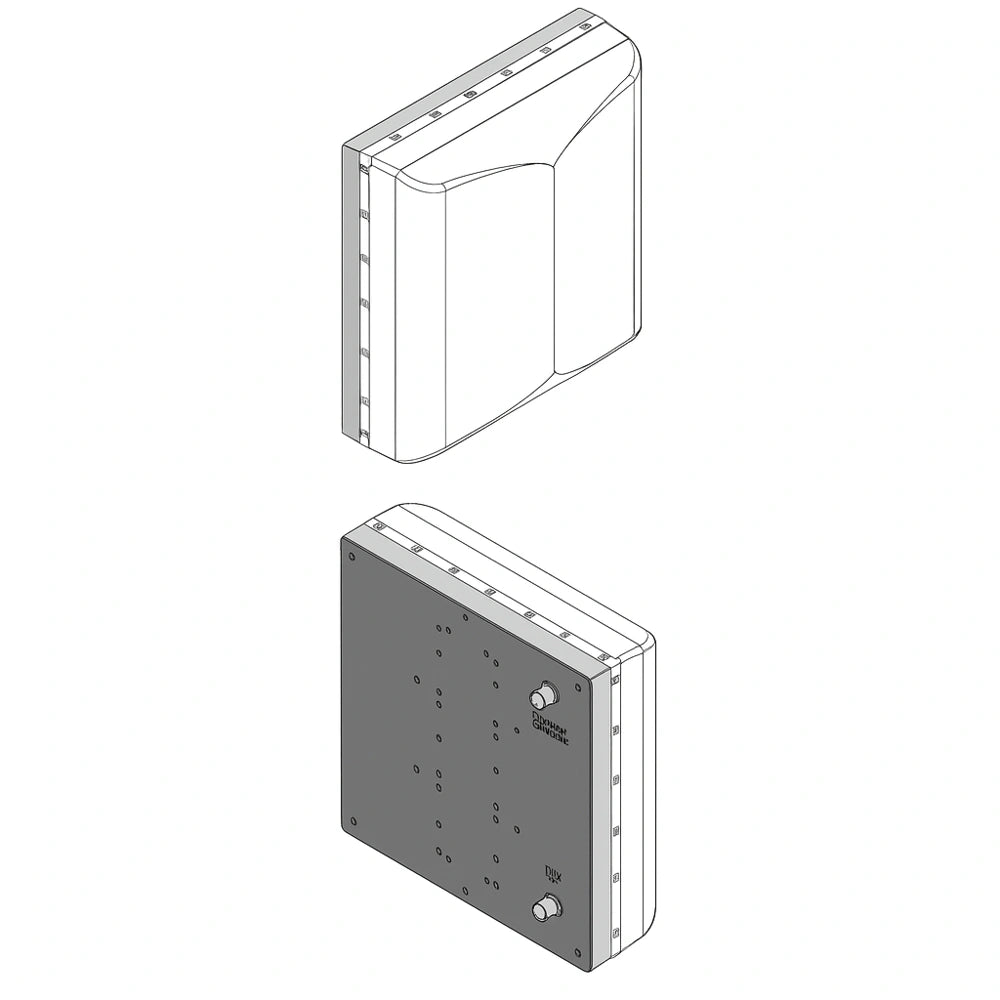

The JMA XGU-FRO-230 is a dual-polarized, dual-band panel antenna designed for DAS, outdoor DAS, and small cell applications. It delivers 13–15.4 dBi gain with a 30° horizontal beamwidth and JMA’s proprietary Fast Roll-Off “Spotlight” pattern, ensuring tight coverage control and minimal interference in dense wireless environments.
Featuring integrated diplexers, this antenna simplifies installations by reducing mainline cabling and eliminating the need for external tower-mounted devices. Built with high-strength UV-stabilized Luran® and designed for harsh outdoor conditions, it supports LTE, GSM, CDMA, and UMTS bands, including AWS-3 and WCS readiness.
Key Specifications
-
Model: XGU-FRO-230
-
Type: Dual-Band X-Pol Directional Antenna
-
Frequency Range:
-
Low Band: 698–960 MHz
-
High Band: 1695–2700 MHz
-
-
Polarization: ±45°
-
Input Connectors: 2 × 7-16 DIN Female (rear mount)
-
Impedance: 50 Ω
-
Gain: 12.3–15.4 dBi (band dependent)
-
Horizontal Beamwidth: 22°–39°
-
Vertical Beamwidth: 23°–39°
-
VSWR / Return Loss: ≤ 1.5 : 1 / ≥ 14 dB
-
Front-to-Back Ratio: > 30 – 34 dB
-
Azimuth Sidelobe Suppression: > 18 – 22 dB
-
Isolation Between Ports: > 28 dB
-
PIM (2 × 20 W): < –153 dBc
-
Maximum Power / Connector:
-
250 W @ 850 MHz
-
125 W @ 1900 MHz
-
-
Electrical Down Tilt: Fixed 0° (mechanical tilt adjustable via mount ±25°)
-
Ingress Protection: IP65 (Dust-tight and low-pressure water spray protection)
-
Wind Survival:
-
120 mph (193 km/h) with standard 919050 bracket
-
150 mph (241 km/h) with optional 919017 bracket
-
Mechanical Details
-
Dimensions (L × W × D): 24.0 × 24.0 × 8.8 in (610 × 610 × 222 mm)
-
Weight (Antenna): 18.3 lb (8.3 kg)
-
Standard Bracket Kit (Included): P/N 919050 (5 lb / 2.3 kg)
-
Optional Bracket Kits:
-
P/N 919017: 13 lb (5.9 kg), 22° down tilt for 3.5” OD poles
-
P/N 919055: Inverted mount for 4.0–10.0” OD poles
-
P/N 91900313: Extended tilt range option
-
-
Radome Material: High-strength Luran®, UV-stabilized
-
Wind Load @ 100 mph: 120.5 lbf (535.9 N)
-
Equivalent Flat Plate: 2.4 sq ft (c = 2)
Applications
-
Outdoor and Stadium DAS Networks
-
LTE / 5G / GSM / CDMA / UMTS Systems
-
Private and Enterprise Wireless Networks
-
Compact Macro and Small Cell Sites
