Description

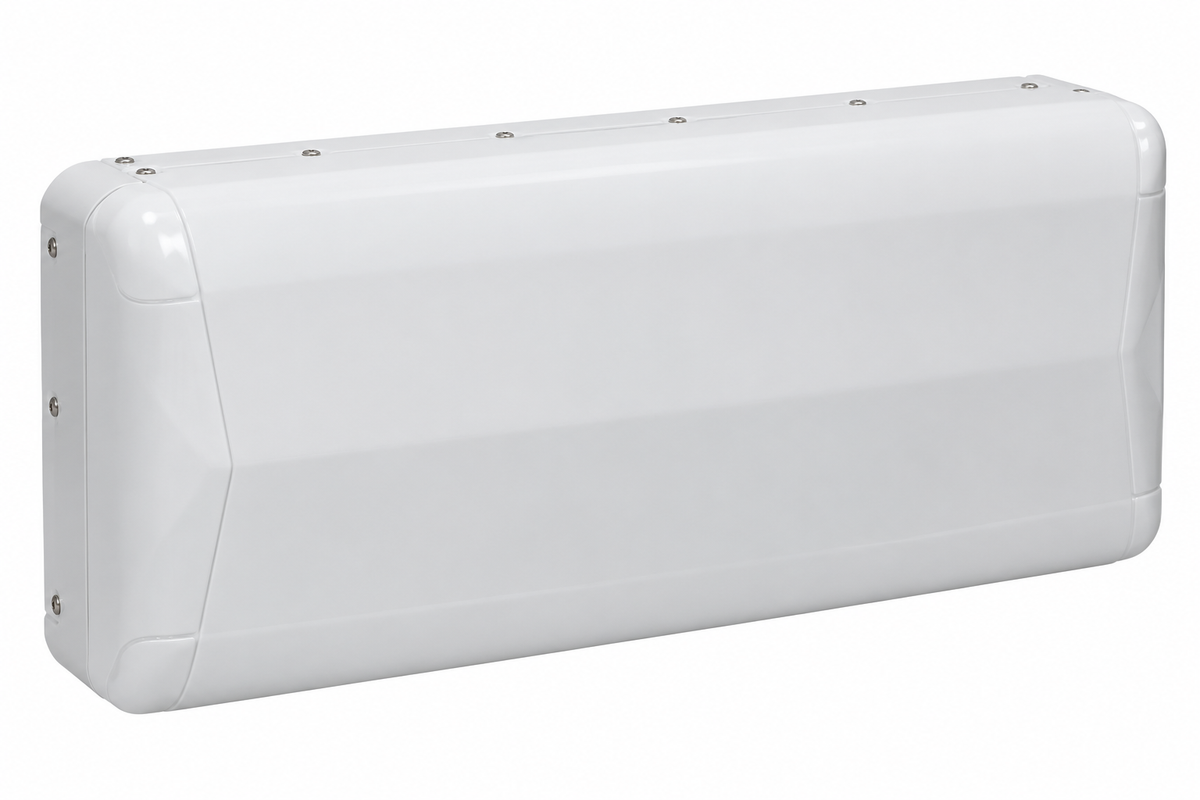

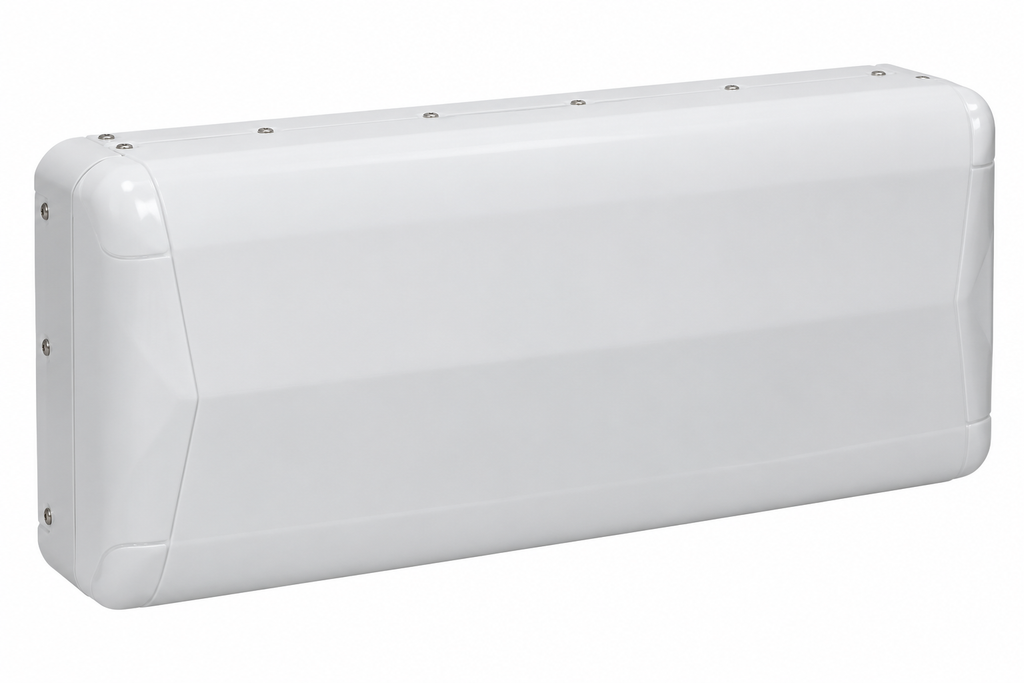

The JMA Wireless XEW-FRO-130-IP is a professional-grade Dual-Band Fast Roll-Off (FRO) Directional Panel Antenna designed for high-capacity cellular coverage, distributed antenna systems (DAS), and stadium wireless infrastructure. Operating across 698–945 MHz and 1710–2360 MHz frequency bands, this antenna provides focused directional coverage with gain up to 11.7 dBi and approximately 30-degree horizontal beamwidth. Its compact design and dual ±45° polarization make it suitable for demanding wireless installations requiring controlled RF coverage and reduced interference between adjacent coverage sectors.
The XEW-FRO-130-IP incorporates JMA Wireless Fast Roll-Off antenna technology and integrated diplexers, helping reduce the number of mainline RF cables and eliminating the need for certain external diplexer components. The antenna features two independent RF ports with 7/16 DIN Female connectors, 50 Ohm impedance, and passive intermodulation performance of -150 dBc. Designed for stadiums, arenas, and other high-density wireless environments, the antenna supports WCS, LTE, CDMA, UMTS, and GSM applications. Its high-strength UV-stabilized Luran radome and compatible adjustable stadium mounting bracket provide flexibility for outdoor wireless infrastructure deployments.
Key Specifications
- Manufacturer: JMA Wireless
- Part Number: XEW-FRO-130-IP
- Product Family: XEW-FRO-130
- Product Type: Dual-Band Fast Roll-Off Directional Panel Antenna
- Antenna Configuration: Dual-Port, Cross-Polarized
- Low Frequency Band: 698–945 MHz
- High Frequency Band: 1710–2360 MHz
- Gain, Low Band: 10.1–10.8 dBi
- Gain, High Band: 10.6–11.7 dBi
- Maximum Gain: 11.7 dBi
- Polarization: Dual ±45°
- Horizontal Beamwidth: 28°–37°, Frequency Dependent
- Vertical Beamwidth: 58°–68°, Frequency Dependent
- Front-to-Back Ratio: Greater than 25 dB Low Band / 30 dB High Band
- Electrical Downtilt: 0° Fixed
- Mechanical Adjustment Range: ±35° Lateral / ±55° Vertical with Compatible Bracket
- Impedance: 50 Ohms
- VSWR: Maximum 1.7:1
- Inter-Port Isolation: Minimum 28 dB
- Passive Intermodulation (IM3): -150 dBc (2 x 20W)
- Maximum Input Power: 100W per Connector
- RF Connector Type: 2 x 7/16 DIN Female
- Connector Location: Rear / Back
- Connector Torque: 220–265 lbf-in (23–30 N-m)
- Integrated Diplexers: Yes
- Antenna Length: 12.6 inches
- Antenna Width: 24.3 inches
- Antenna Depth: 5.2 inches
- Manufacturer Specified Antenna Weight: 13.0 lb
- Standard Mounting Bracket: JMA Stadium Bracket P/N 919050
- Manufacturer Specified Bracket Weight: 5.0 lb
- Radome Material: High-Strength UV-Stabilized Luran
- Wind Survival Rating: 120 mph (193 km/h)
- Application: Stadium and High-Capacity Wireless Infrastructure
- Product Status: Discontinued by Manufacturer
- Quantity: 1 Antenna
Typical Applications
- Distributed Antenna Systems (DAS)
- Stadium and arena cellular coverage systems
- High-capacity venue wireless infrastructure
- 4G LTE and WCS wireless network installations
- Directional cellular coverage enhancement
- Sports facilities and entertainment venues
- Convention centers and exhibition facilities
- University campuses and educational facilities
- Commercial and industrial wireless networks
- Dual-polarized MIMO wireless communication systems
- Cellular sector coverage and RF signal containment
- Telecommunications infrastructure upgrades
- Replacement and maintenance of existing JMA Wireless antenna systems
Please Note: The JMA Wireless XEW-FRO-130-IP is a discontinued dual-band directional antenna with two 7/16 DIN Female connectors and integrated diplexers. It supports 698–945 MHz and 1710–2360 MHz frequency bands with fixed 0° electrical downtilt. The manufacturer's standard configuration specifies stadium mounting bracket P/N 919050; actual mounting hardware included with this listing may vary. Please verify connector compatibility, frequency requirements, mounting hardware, and installation configuration before ordering.
