Description

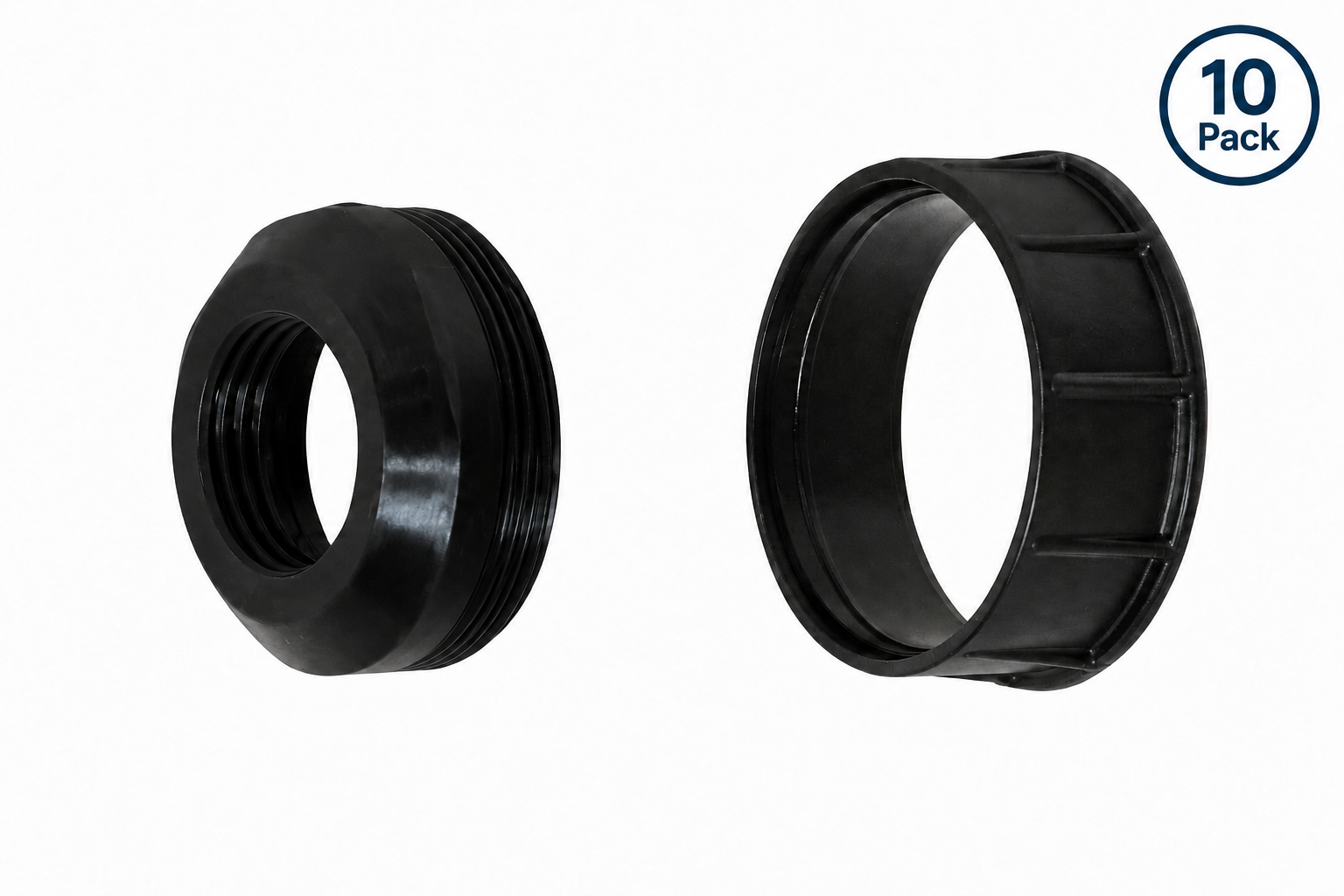

Sold as a Pack of 10. Each JMA Wireless WPS-78P kit includes a dedicated 7/8 inch port seal and a 7/8 inch seal ring. This listing includes 10 complete WPS-78P kits.

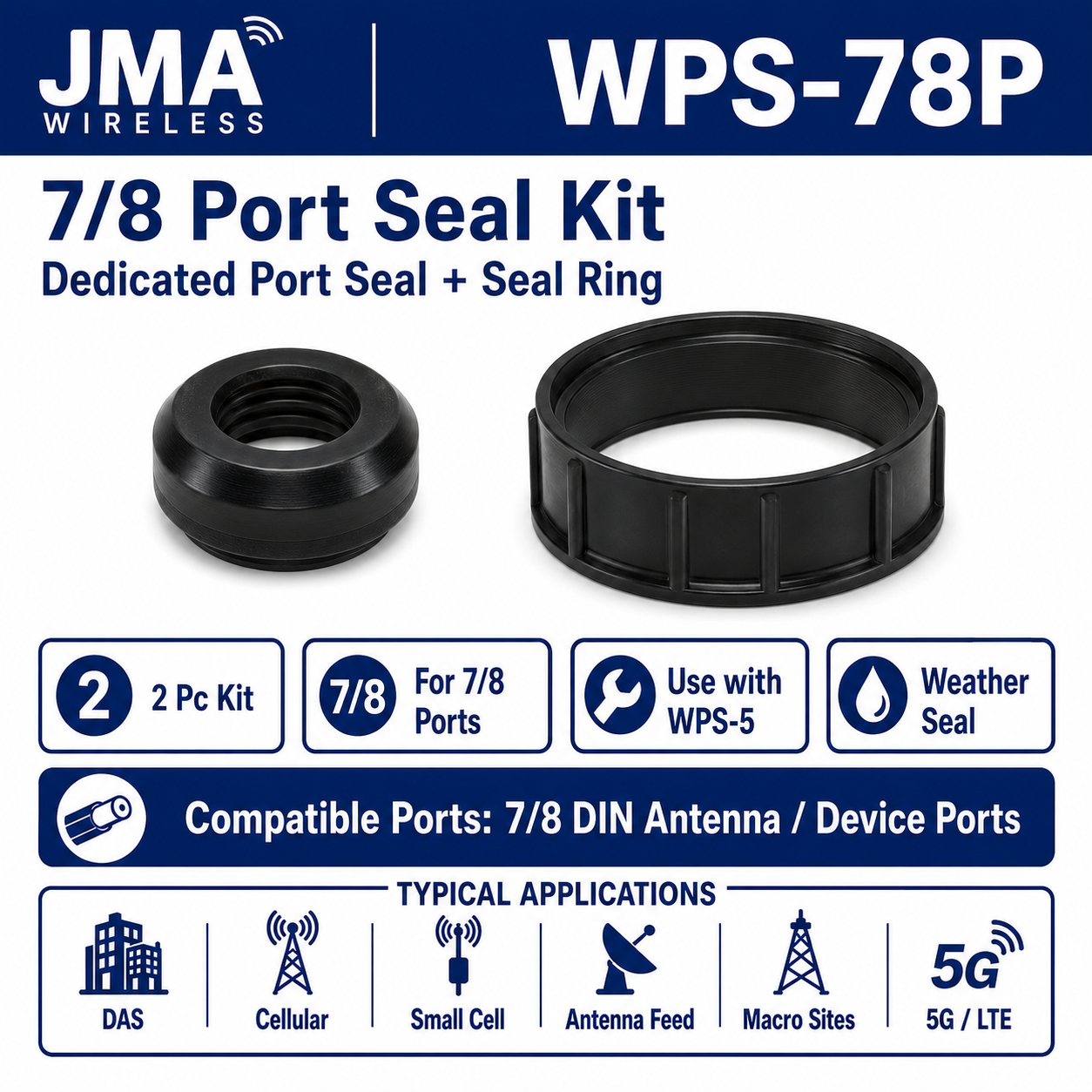

The JMA Wireless WPS-78P is a weather protection seal kit designed for 7/8 inch RF connections used with the JMA WPS-5 Weather Protection System. It is intended for wireless infrastructure installations including DAS, cellular, 5G, LTE, macro sites, rooftops, antenna feeds, and other outdoor RF applications where additional sealing protection is required at the antenna or device interface.
According to JMA installation documentation, the WPS-78P consists of a dedicated 7/8 inch port seal and a 7/8 inch seal ring. During installation, the port seal is positioned over the connector coupling area while the seal ring is installed over the WPS-5 to secure and complete the weather-protected interface. The system supports applications with JMA 7/8 inch DIN Male and DIN Female connector installations.
Key Specifications
- Manufacturer: JMA Wireless
- Part Number: WPS-78P
- Product Type: Weather Protection Seal Kit
- Package Quantity: Pack of 10 complete kits
- Components Per Kit: Dedicated 7/8 inch port seal and 7/8 inch seal ring
- Total Components: 10 port seals and 10 seal rings
- Connection Size: 7/8 inch RF connections
- Compatible Weather Protection System: JMA WPS-5
- Compatible Connector Applications: 7/8 inch DIN Male and DIN Female connections to antenna or device
- Installation: Port seal installs over the connector coupling area; seal ring secures over the WPS-5
- Application: DAS, 5G, LTE, cellular, macro site, rooftop, antenna feed, and outdoor wireless infrastructure
Kit Contents
- 10 x Dedicated 7/8 inch Port Seals
- 10 x 7/8 inch Seal Rings
- 10 x Complete JMA WPS-78P Weather Protection Kits
Installation Overview
- Slide the 7/8 inch seal ring onto the cable before cable preparation.
- Install the compatible JMA 7/8 inch connector according to the manufacturer's connector installation instructions.
- Stretch the dedicated 7/8 inch port seal over the port or coupling nut.
- Install the JMA WPS-5 over the connector so that it overlaps the dedicated port seal.
- Slide the 7/8 inch seal ring over the WPS-5 and align it with the leading edge of the WPS-5.
| Price Comparison - Pack of 10 | |||
| DAS DEALS | Tessco | Talley | Graybar |
|---|---|---|---|
| $50.00 | N/A | $72.10 | N/A |
| You Save | N/A | 31% | N/A |
Please Note: This listing is for a Pack of 10 complete WPS-78P kits. Each kit consists of one dedicated 7/8 inch port seal and one 7/8 inch seal ring. Price comparison is shown for an equivalent quantity of 10 kits. The JMA WPS-5 is a separate component and is not included with this listing. Please confirm compatibility with your exact connector, port, and installation requirements before purchase.
