Description

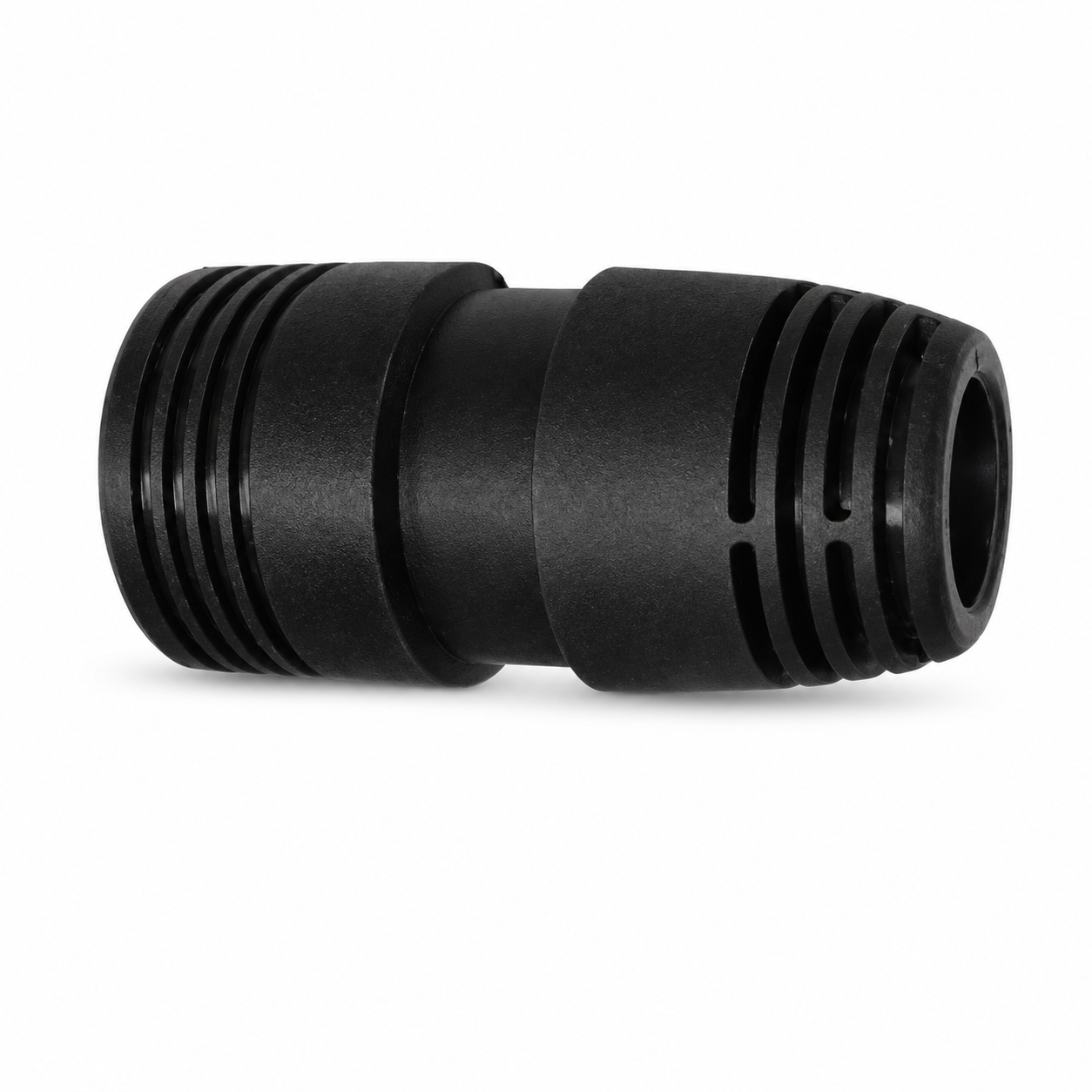

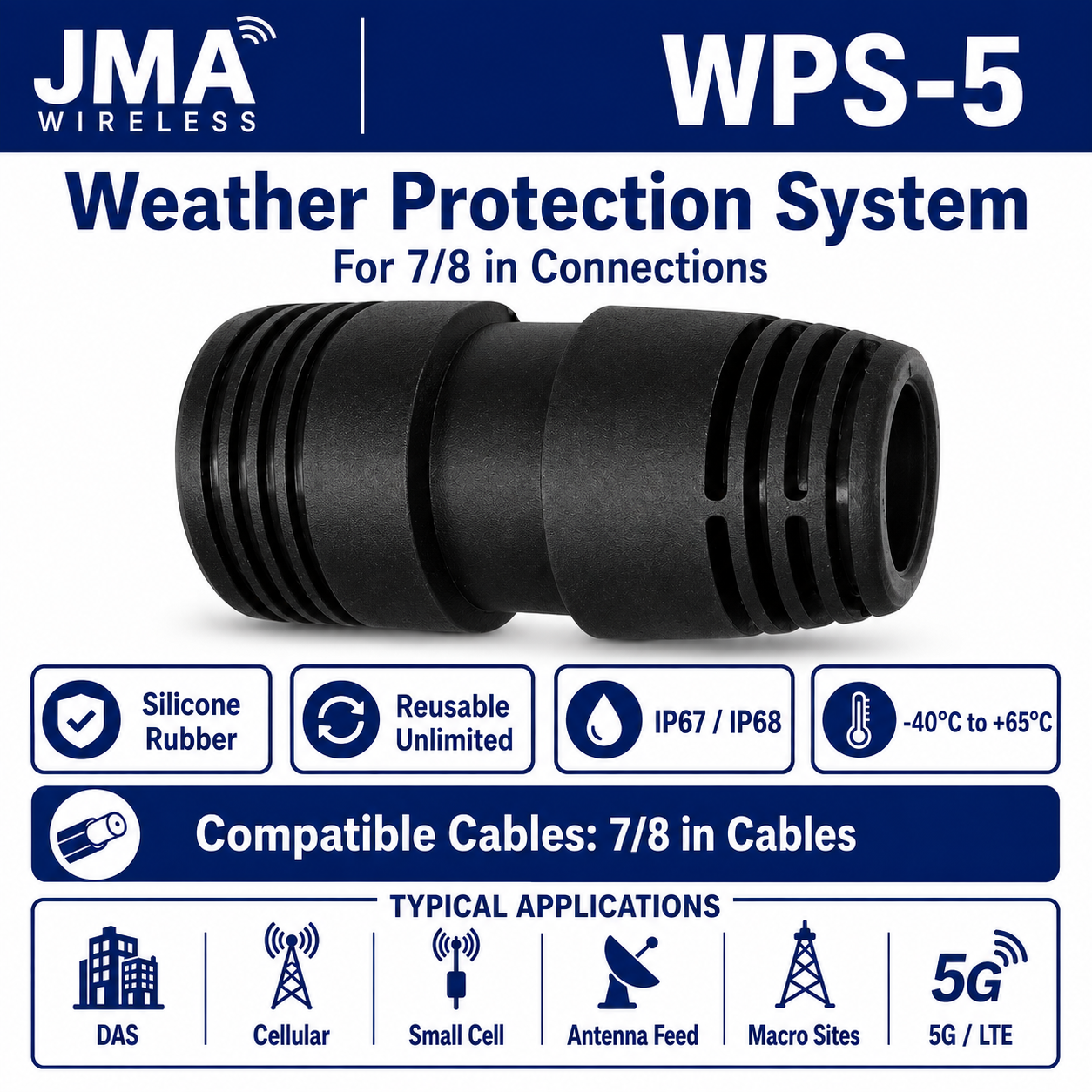

The JMA Wireless WPS-5 is a reusable weather protection system designed for 7/8 inch RF cable connections used in DAS, cellular, 5G, LTE, macro site, rooftop, antenna feed, and other outdoor wireless infrastructure installations. Constructed from durable silicone rubber, the WPS-5 helps protect compatible RF connections from moisture and harsh environmental exposure while allowing repeated installation and reuse.
According to the JMA datasheet, the WPS-5 supports a wide range of industry-standard 7/8 inch coaxial cables and provides IP67 and IP68 moisture resistance with no leakage. It is rated for installation and operation from -40 C to +65 C, storage from -55 C to +85 C, 1000-hour corrosion resistance, 1000-hour UV exposure resistance, and unlimited reusability.
Key Specifications
- Manufacturer: JMA Wireless
- Part Number: WPS-5
- Product Type: Weather Protection System
- Connection Size: 7/8 inch connections
- Material: Silicone rubber
- Dimensions: 3.90 x 2.00 in / 99.0 x 50.8 mm
- Weight: 0.16 lb / 73 g
- Lubricant: Dow Corning Molykote III
- Reusability: Unlimited
- Installation Temperature: -40 C to +65 C
- Operating Temperature: -40 C to +65 C
- Storage Temperature: -55 C to +85 C
- Moisture Resistance: No leakage, IP67 / IP68
- Corrosion Resistance: 1000 hours, ASTM B117
- UV Resistance: 1000 hours exposure per ASTM G53 using UVB-313 type lamps
- H.A.L.T.: 40 hours
- Fire Rating: UL94 HB
- Application: Weather protection for compatible 7/8 inch RF cable connections used in DAS, cellular, 5G, LTE, rooftop, macro site, and antenna feed installations
Compatible RF Cable Types
- Andrew AVA5
- Andrew AVA5RK
- Andrew AL5
- Andrew LDF5
- Andrew VXL5
- RFS LCF78
- RFS LCF78-50JL
- RFS UCF78
- Eupen EC5
- NK Draka RFA78
- LEONI Flexline 7/8 R
- LS/Superior Essex LHF 22D
- LS/Superior Essex LHF-22DU
- Hansen RF5078
- Rosenberger SL 7/8
- Hengxin HCTAY-50-22
| Price Comparison | |||
| DAS DEALS | Tessco | Talley | Graybar |
|---|---|---|---|
| $19.99 | N/A | $21.99 | N/A |
| You Save | N/A | 9% | N/A |
Please Note: Price comparison is shown per weather protection system. Please confirm compatibility with your exact cable and connection type before purchase.
Installation Video
Watch the manufacturer installation video for additional guidance before installing this weather protection system.
