Description

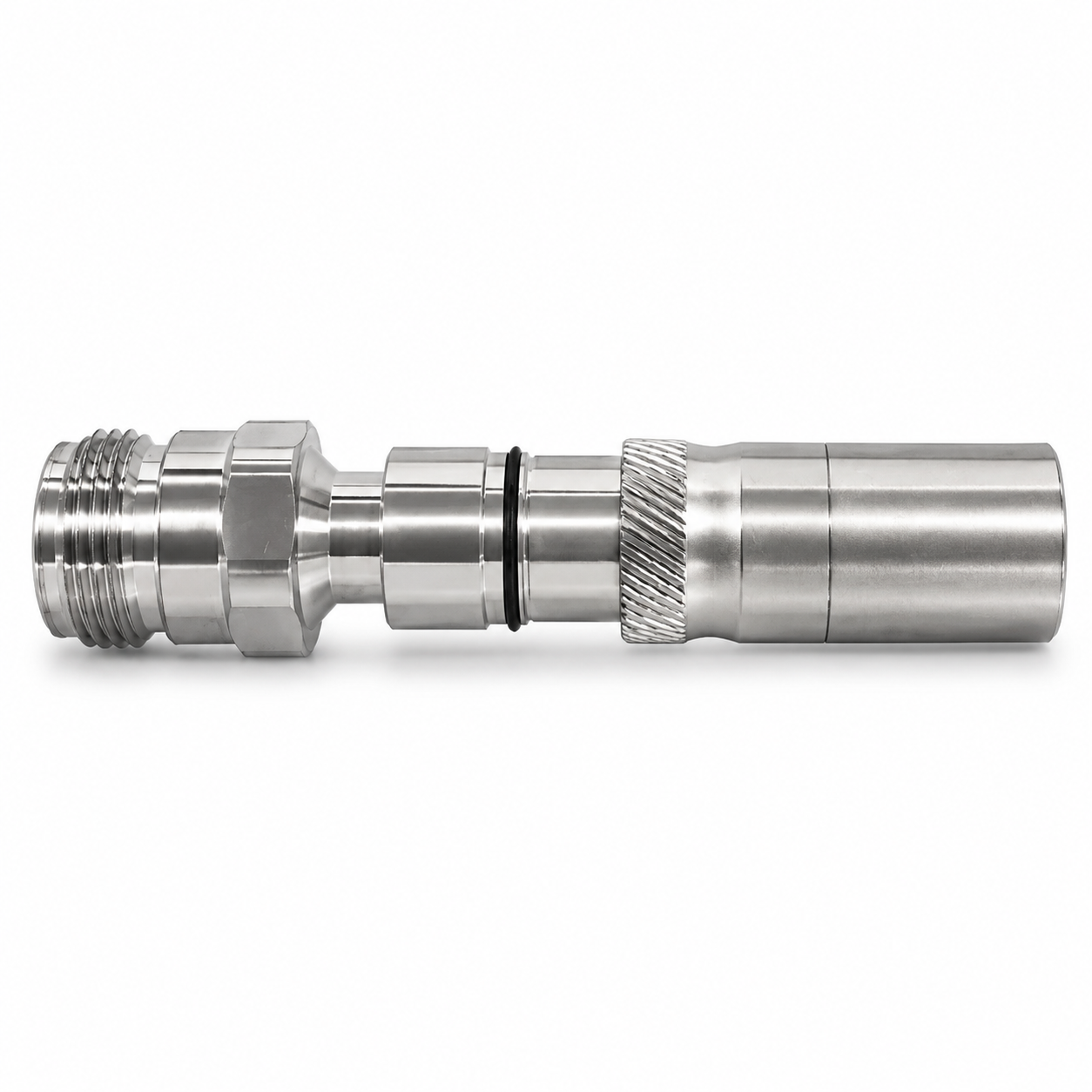

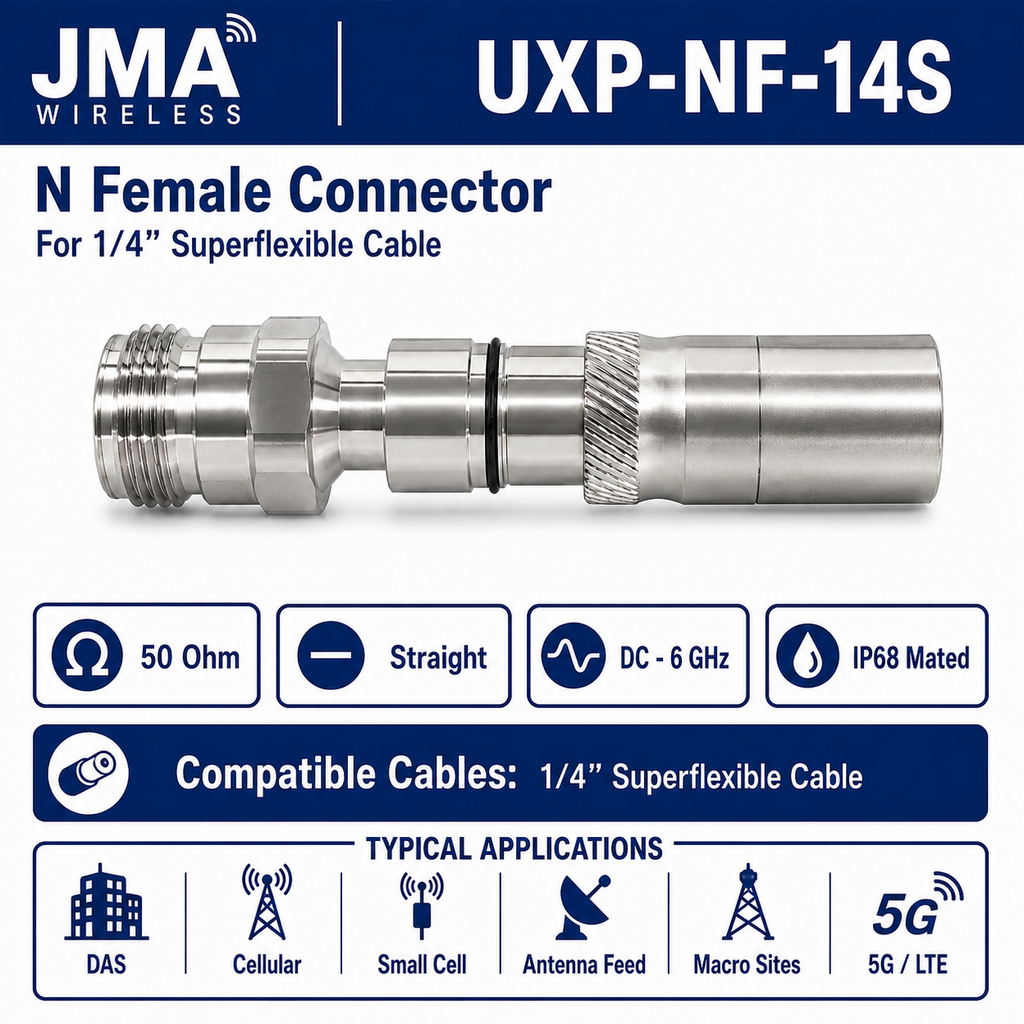

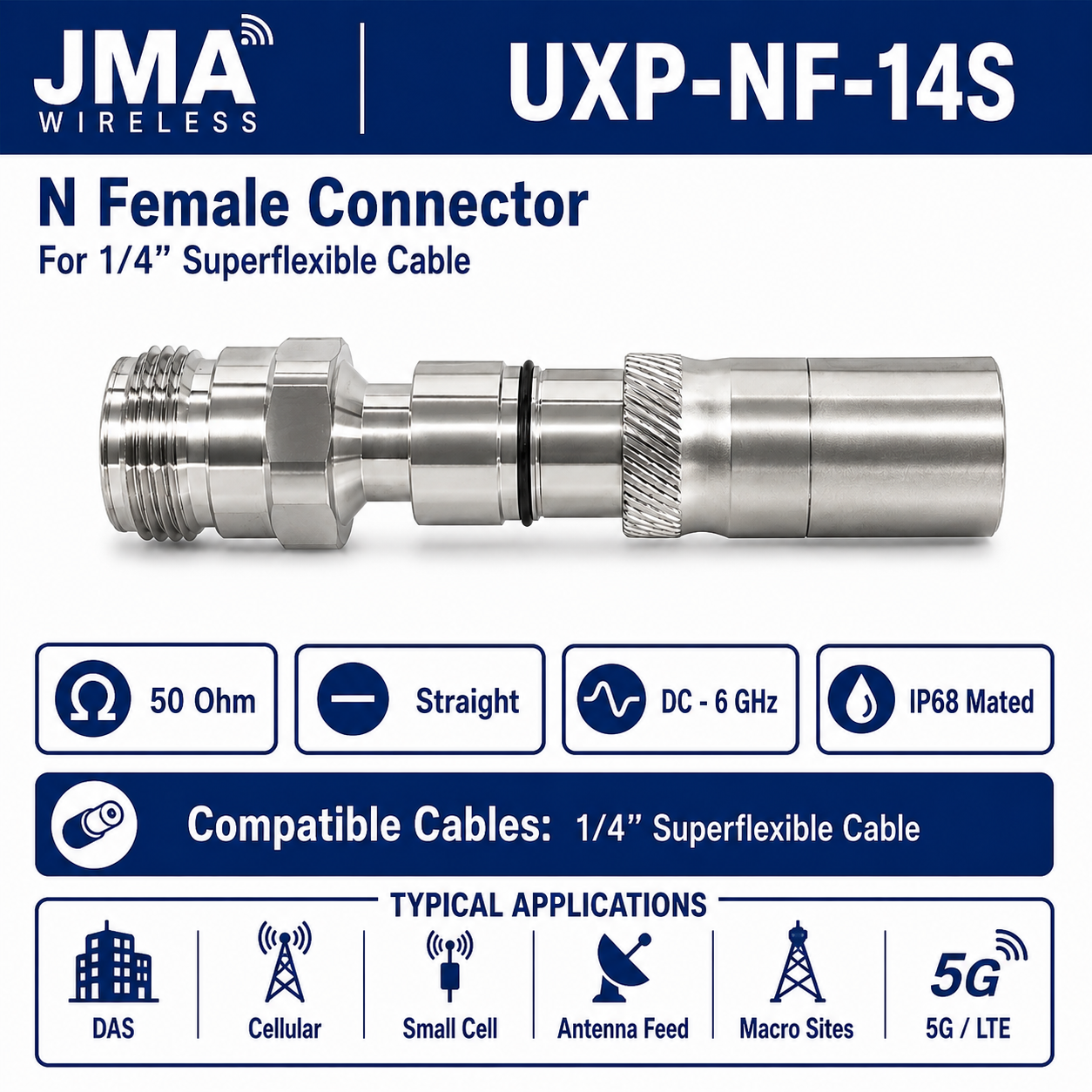

The JMA Wireless UXP-NF-14S is an N Female RF connector designed for 1/4 inch superflexible coaxial cable used in DAS, 5G, LTE, 4G, private wireless, small cell, macro site, rooftop, antenna feed, and telecom infrastructure applications. This 50 Ohm low PIM connector is built for demanding wireless network installations where reliable RF performance and 1/4 inch superflexible cable compatibility are required.
According to the JMA datasheet, the UXP-NF-14S has typical 3rd order IMD/PIM performance of -161 dBc, typical insertion loss of 0.05 dB per connector, average power handling of 400 W at 900 MHz, and peak power rating of 6.4 kW maximum. It operates from DC to 6 GHz and supports outdoor-ready installations with IP68 immersion and IP66 water jetting environmental performance.
Key Specifications
- Manufacturer: JMA Wireless
- Part Number: UXP-NF-14S
- Connector Type: N Female RF Connector
- Cable Type: 1/4 inch superflexible coaxial cable
- Impedance: 50 Ohm
- Operating Frequency: DC to 6 GHz
- Typical PIM / IMD: -161 dBc typical
- Typical Insertion Loss: 0.05 dB per connector
- Average Power: 400 W at 900 MHz
- Peak Power: 6.4 kW maximum
- DC Test Voltage: 1600 V
- Center Contact Resistance: Less than or equal to 1.0 milliohm
- Outer Contact Continuity: 0.2 milliohm maximum
- Shielding Effectiveness: Less than -120 dB at 0 to 1 GHz
- Pull Force: 0.67 kN / greater than 150 lb combined, cable limited
- Cable Retention Torque: 2 N-m / 1.5 lbf-ft, cable limited
- Interface Durability: 500 cycles
- Environmental Rating: IP68 immersion, IP66 water jetting
- Operating Temperature: -55 C to +85 C
- Storage Temperature: -55 C to +85 C
- Weather Protection System: N/A
- Cable Preparation Tool: SP-14S, no coring required
- Hex Width: 19 mm / 3/4 in
- Compression Tool Options: HCG-CC with HCG-FS-14B-01, or HCG-CC with HCG-FRAMESET-14B
- Weight: 0.128 lb / 58.1 g
- Application: DAS, 5G, LTE, 4G, private wireless, private network, small cell, macro site, rooftop, antenna feed, and telecom infrastructure
Compatible RF Cable Types
- JMA Wireless JMA14S-50
- JMA Wireless JMA14SP-50
- Wireless Supply WS14/SF
- HUBER+SUHNER SUCOFEED 1/4 HFFR
- HUBER+SUHNER SUCOFEED 1/4 HF
- Trilogy APC014J50
- CommScope FSJ1-50A
- CommScope FSJ1RK-50B
- CommScope PTS1-50-P
- RFS SCF14-50J
- RFS SCF14-50JFN
- Eupen EC1-50-HF
- Hansen RF5014S
- Hansen RF5014SZ
- Times SPP-250-LLPL
- Times SPO-250
- Other compatible 1/4 inch superflexible coaxial cables, subject to confirmation with JMA Technical Support
| Price Comparison | |||
| DAS DEALS | Tessco | Talley | Graybar |
|---|---|---|---|
| $22.99 | $29.83 | $29.25 | $32.03 |
| You Save | 23% | 21% | 28% |
Please Note: Price comparison is shown per connector. Please confirm compatibility with your exact cable type and installation requirements before purchase.
