Description

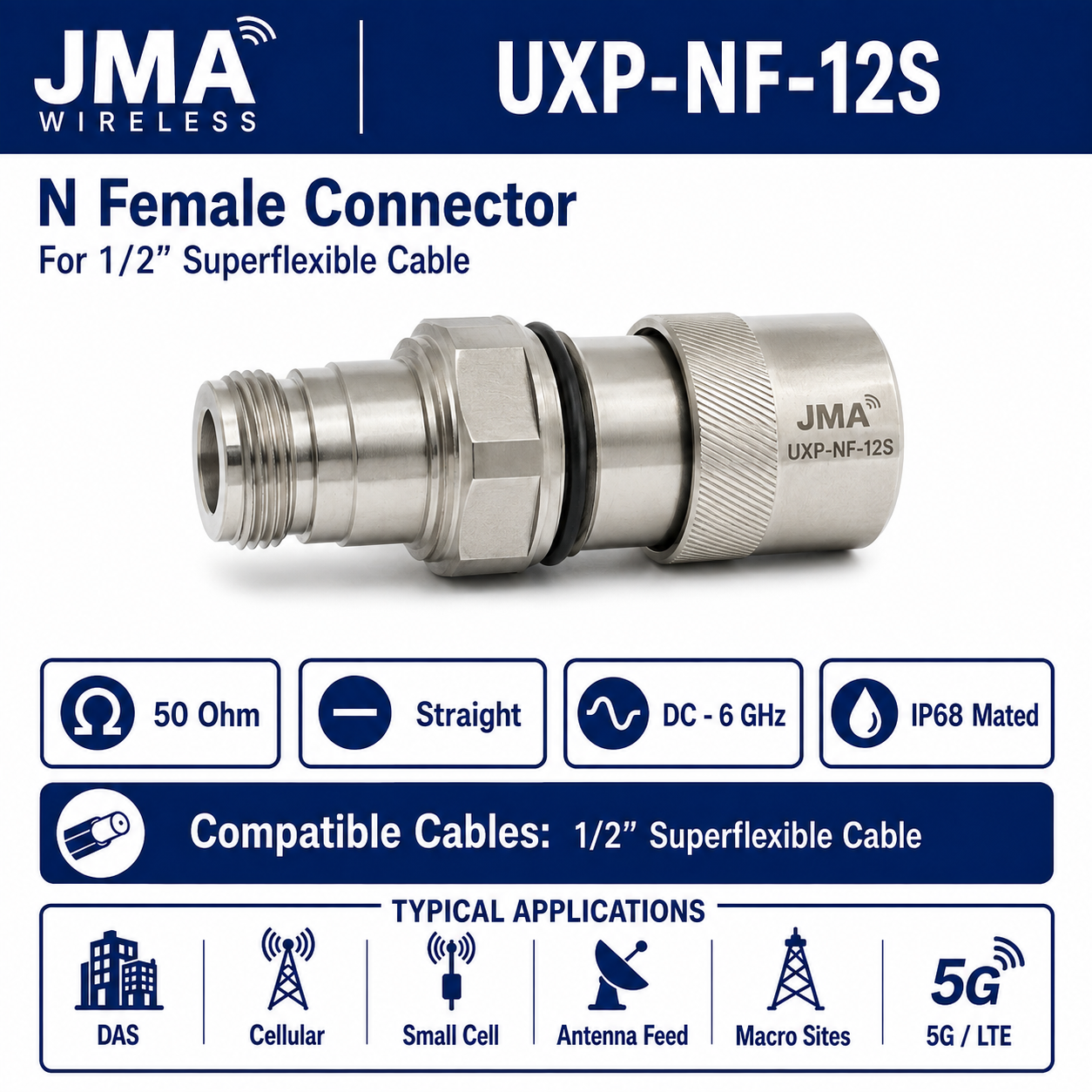

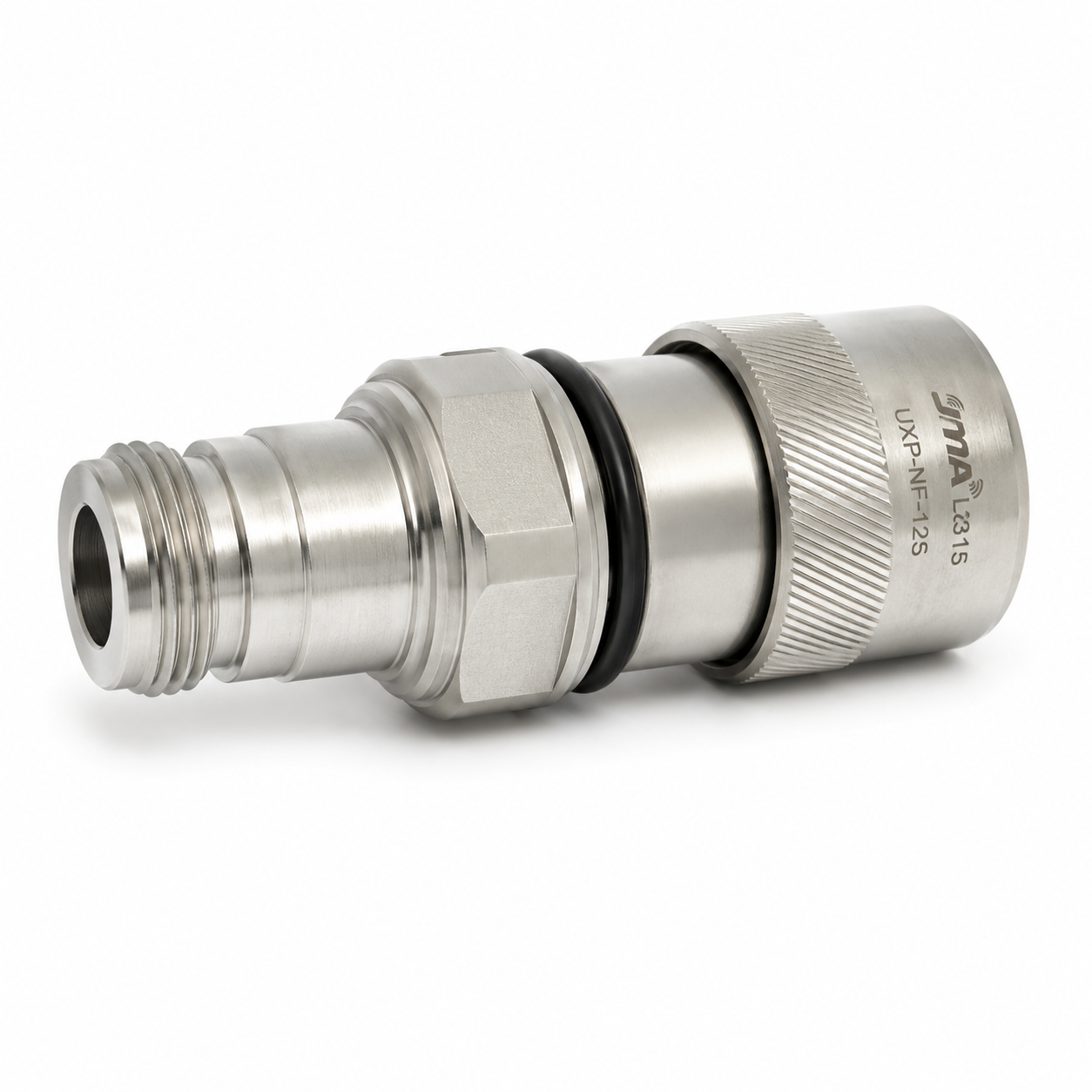

The JMA Wireless UXP-NF-12S is an N Female RF connector designed for 1/2 inch superflexible coaxial cable used in DAS, 5G, LTE, 4G, private wireless, small cell, macro site, rooftop, antenna feed, and telecom infrastructure applications. This 50 Ohm low PIM connector is built for demanding wireless network installations where reliable RF performance and 1/2 inch superflexible cable compatibility are required.
According to the JMA datasheet, the UXP-NF-12S has typical 3rd order IMD/PIM performance of -161 dBc, typical insertion loss of 0.05 dB per connector, average power handling of 600 W at 900 MHz, and peak power rating of 10 kW maximum. It supports operation from DC to 6 GHz and outdoor-ready installations with IP68 immersion and IP66 water jetting environmental performance.
Key Specifications
- Manufacturer: JMA Wireless
- Part Number: UXP-NF-12S
- Connector Type: N Female RF Connector
- Cable Type: 1/2 inch superflexible coaxial cable
- Impedance: 50 Ohm
- Operating Frequency: DC to 6 GHz
- Typical PIM / IMD: -161 dBc typical
- Typical Insertion Loss: 0.05 dB per connector
- Average Power: 600 W at 900 MHz
- Peak Power: 10 kW maximum
- DC Test Voltage: 2500 V
- Center Contact Resistance: Less than or equal to 1.5 milliohm
- Outer Contact Continuity: 0.3 milliohm maximum
- Shielding Effectiveness: Less than -120 dB at 0 to 1 GHz
- Pull Force: 0.78 kN / greater than 175 lb combined, cable limited
- Cable Retention Torque: 6.7 N-m / 5 lbf-ft, cable limited
- Interface Durability: 50 cycles
- Environmental Rating: IP68 immersion, IP66 water jetting
- Operating Temperature: -55 C to +85 C
- Storage Temperature: -55 C to +85 C
- Weather Protection System: N/A
- Cable Preparation Tool: SP-12S or SP-12SPL, no coring required
- Hex Width: 25 mm / 1 in
- Compression Tool Options: HCG-CC with HCG-FS-12-01 and HCG-INS3-12-01 Insert 3, or HCG-CC with HCG-FRAMESET-1/2 and HCG-INSERTB-1/2 Insert B
- Weight: 0.270 lb / 122.5 g
- Application: DAS, 5G, LTE, 4G, private wireless, private network, small cell, macro site, rooftop, antenna feed, and telecom infrastructure
Compatible RF Cable Types
- JMA Wireless JMA12S-50
- JMA Wireless JMA12SR-50
- CommScope FSJ4
- CommScope FSJ4RK
- CommScope FSJ4RN-50
- CommScope HS4RP
- RFS SCF12
- NK Draka RFF1200
- HUBER+SUHNER SF 1/2 HF
- Eupen EC4HF
- Leoni Flexline 1/2 S
- LS/Superior Essex HFSC 12D
- LS/Superior Essex FSC12DPV
- Hansen RF5012S
- Hansen RF5012SZ
- Rosenberger SL 1/2 S
- Wireless Supply WS12/SF
- Wireless Supply WS12/SF/WP
- Other compatible 1/2 inch superflexible coaxial cables, subject to confirmation with JMA Technical Support
