Description

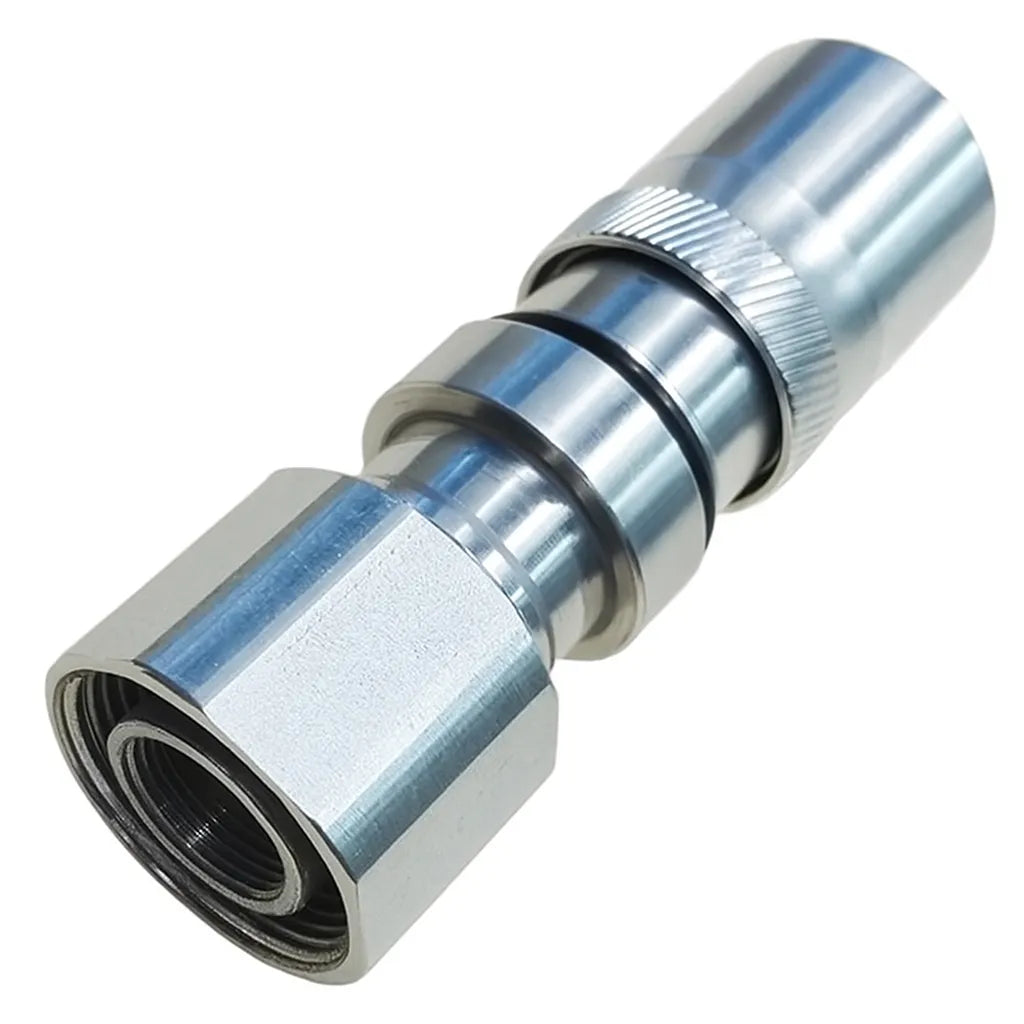

The JMA Wireless UXP-MDM-14S is a high-performance Mini DIN Male connector engineered specifically for 1/4" superflexible coaxial cables. Offering superior return loss, low PIM, and IP68 environmental sealing, this connector is ideal for modern wireless infrastructure, DAS systems, and telecommunications applications demanding precision and ruggedness.
Key Specifications
✅ Interface: 4.1/9.5 Mini DIN Male
✅ Cable Type: 1/4" Superflex
✅ Impedance: 50 Ohm
✅ Frequency Range: DC–6 GHz
✅ Return Loss: >40 dB @ 1 GHz; >36 dB @ 2 GHz; >32 dB @ 4 GHz; >28 dB @ 6 GHz
✅ PIM (3rd Order IMD): –160 dBc typical (IEC 62037-2)
✅ Insertion Loss: < 0.1√f(GHz) dB
✅ Voltage Withstand: > 2.5 kV
✅ Shielding Effectiveness: < –120 dB
✅ Environmental Rating: IP67 / IP68
✅ Durability: >500 mating cycles
✅ Operating Temp: –55 °C to +85 °C
✅ RoHS Compliant
Compatible RF Cable Types
-
Andrew/Commscope FSJ1-50A
-
Andrew/Commscope FSJ1RK-50B
-
RFS SCF14-50J
-
RFS SCF14-50JF
-
Hansen RF014S
-
Hansen RFS014SZ
