Description

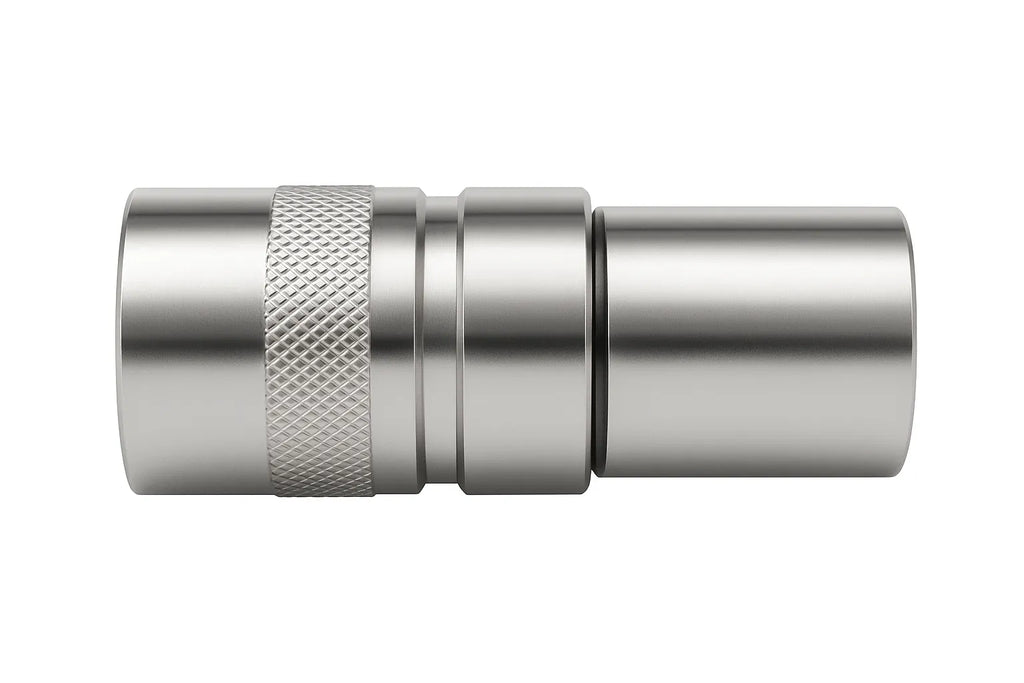

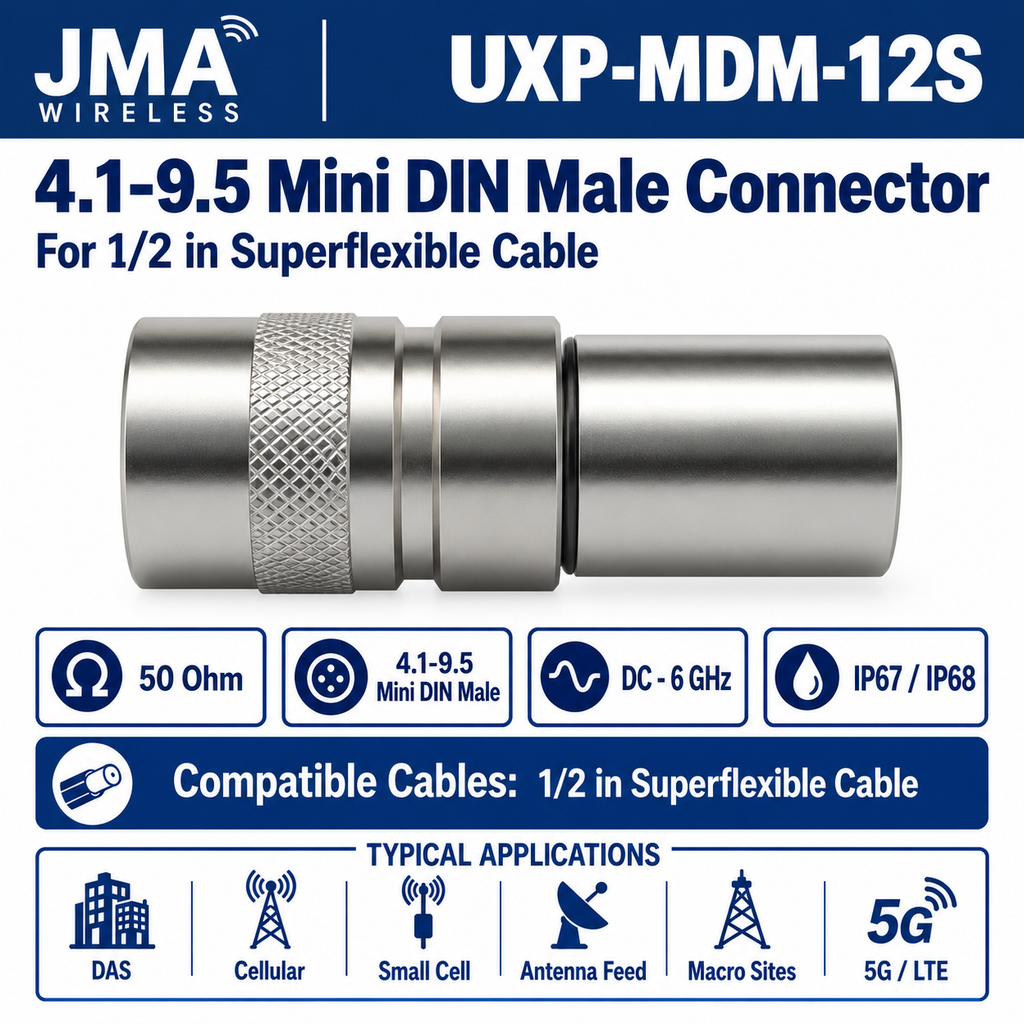

The JMA Wireless UXP-MDM-12S is a 4.1-9.5 Mini DIN Male RF connector designed for 1/2 inch superflexible coaxial cable used in DAS, 5G, LTE, 4G, private wireless, small cell, macro site, public safety, and telecom infrastructure applications. This 50 Ohm low PIM connector supports DC to 6 GHz operation and is designed for reliable RF performance in demanding wireless network deployments.
According to the current JMA datasheet, the UXP-MDM-12S provides typical 3rd order IMD/PIM performance of -161 dBc, typical insertion loss of 0.05 dB per connector, average power handling of 600 W at 900 MHz, and peak power handling of 15 kW. It also provides strong shielding performance and IP68 immersion / IP66 water jetting environmental protection for indoor and outdoor wireless installations.
Key Specifications
- Manufacturer: JMA Wireless
- Part Number: UXP-MDM-12S
- Connector Type: 4.1-9.5 Mini DIN Male RF Connector
- Cable Type: 1/2 inch superflexible coaxial cable
- Impedance: 50 Ohm
- Operating Frequency: DC to 6 GHz
- Typical PIM / IMD: -161 dBc typical
- Insertion Loss: 0.05 dB typical per connector
- DC Test Voltage: 2500 V
- Center Contact Resistance: Less than or equal to 0.8 milliohm
- Outer Contact Continuity: 1.5 milliohm maximum
- Average Power: 600 W at 900 MHz
- Peak Power: 15 kW maximum
- Shielding Effectiveness: Less than -120 dB at 0 to 1 GHz
- Pull Force: 0.78 kN / greater than 175 lb combined, cable limited
- Cable Retention Torque: 6.7 N-m / 5 lbf-ft, cable limited
- Interface Durability: 500 cycles
- Environmental Rating: IP68 immersion, IP66 water jetting
- Operating Temperature: -55 C to +85 C
- Storage Temperature: -55 C to +85 C
- Weather Protection System: JMA WPS-N-4S
- Cable Preparation Tool: SP-12S or SP-12SPL, no coring required
- Compression Tool: HCG-FRAMESET-1/2, HCG-CC, Insert C
- Torque Wrench: TQ-78-F8, 8 lbf-ft / 10.85 N-m
- Weight: Approximately 0.305 lb / 138.3 g
- Application: DAS, 5G, LTE, 4G, private wireless, private network, small cell, macro site, public safety, and telecom infrastructure
Compatible RF Cable Types
- JMA Wireless JMA12S-50
- JMA Wireless JMA12SR-50
- CommScope FSJ4
- CommScope FSJ4RK
- CommScope FSJ4RN-50
- CommScope HS4RP
- RFS SCF12
- Rosenberger SL 1/2 inch S
- NK Draka RFF1200
- HUBER+SUHNER SF 1/2 HF
- Eupen EC4HF
- Leoni Flexline 1/2 inch S
- LS/Superior Essex HFSC 12D
- LS/Superior Essex FSC12DPV
- Hansen RF5012S
- Hansen RF5012SZ
- Wireless Supply WS12/SF
- Wireless Supply WS12/SF/WP
| Price Comparison | |||
| DAS DEALS | Tessco | Talley | Graybar |
|---|---|---|---|
| $22.99 | $37.76 | N/A | $40.49 |
| You Save | 39% | N/A | 43% |
Please Note: Price comparison is shown per connector. Please confirm compatibility with your cable type and installation requirements before purchase.
Installation Video
Watch the manufacturer installation video for additional guidance before installing this connector.
