Description

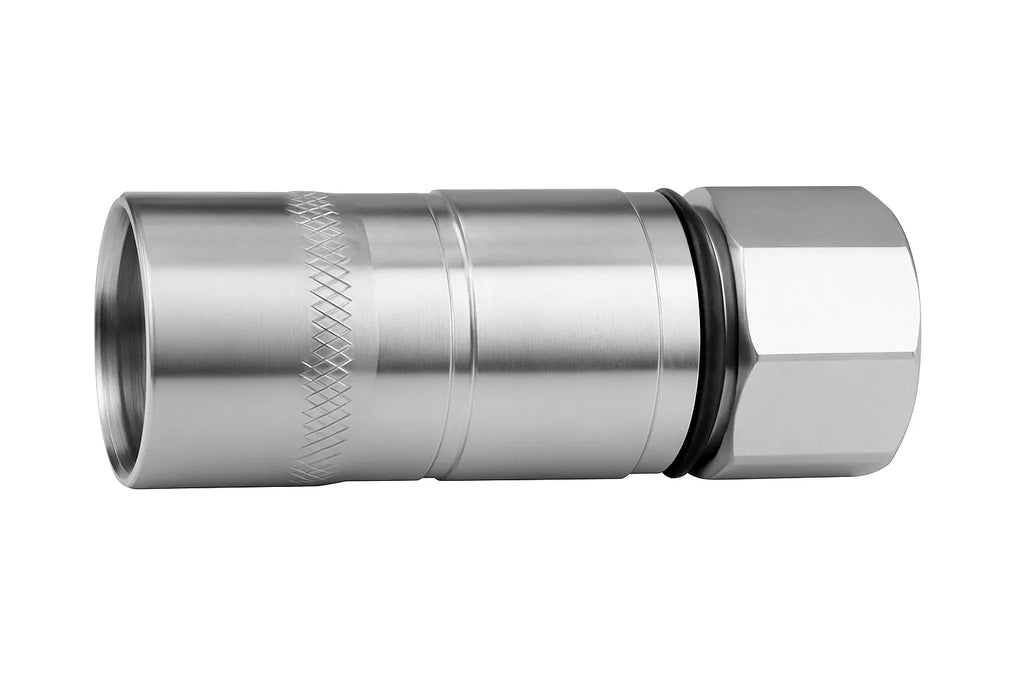

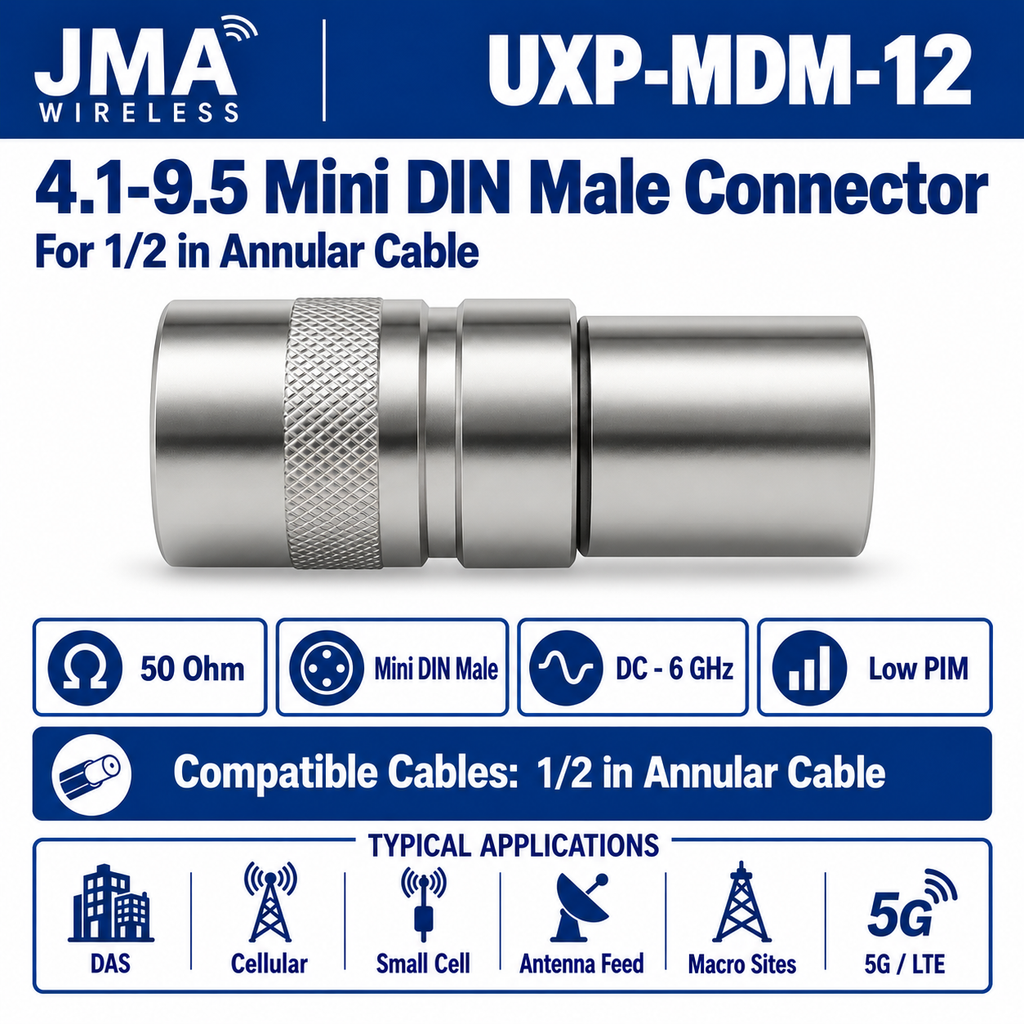

The JMA Wireless UXP-MDM-12 is a 4.1-9.5 Mini DIN Male RF connector designed for 1/2 inch annular coaxial cable used in DAS, 5G, LTE, 4G, private wireless, small cell, macro site, rooftop, antenna feed, and telecom infrastructure applications. This 50 Ohm low PIM connector supports DC to 6 GHz operation and is built for reliable RF performance in demanding wireless network deployments.
According to the current JMA datasheet, the UXP-MDM-12 provides typical 3rd order IMD/PIM performance of -161 dBc, typical insertion loss of 0.05 dB per connector, average power handling of 600 W at 900 MHz, and peak power handling of 15 kW. It is designed for 1/2 inch annular coaxial cable and provides IP68 immersion and IP66 water jetting environmental performance for demanding indoor and outdoor installations.
Key Specifications
- Manufacturer: JMA Wireless
- Part Number: UXP-MDM-12
- Connector Type: 4.1-9.5 Mini DIN Male RF Connector
- Cable Type: 1/2 inch annular coaxial cable
- Impedance: 50 Ohm
- Operating Frequency: DC to 6 GHz
- Typical PIM / IMD: -161 dBc typical
- Typical Insertion Loss: 0.05 dB per connector
- DC Test Voltage: 2500 V
- Center Contact Resistance: Less than or equal to 1.0 milliohm
- Outer Contact Continuity: 1.0 milliohm maximum
- Average Power: 600 W at 900 MHz
- Peak Power: 15 kW maximum
- Shielding Effectiveness: Less than -120 dB at 0 to 1 GHz
- Pull Force: 1.1 kN / greater than 250 lb combined, cable limited
- Cable Retention Torque: 6.7 N-m / 5 lbf-ft, cable limited
- Interface Durability: 500 cycles
- Environmental Rating: IP68 immersion, IP66 water jetting
- Operating Temperature: -55 C to +85 C
- Storage Temperature: -55 C to +85 C
- Weather Protection System: JMA WPS-N-4A
- Cable Preparation Tool: SP-1/2-LDF4D, U bit
- Compression Tool: HCG-FRAMESET-1/2, HCG-CC, Insert C
- Torque Wrench: TQ-78-F8, 8 lbf-ft / 10.85 N-m
- Weight: Approximately 0.287 lb / 130.2 g
- Application: DAS, 5G, LTE, 4G, private wireless, private network, small cell, macro site, rooftop, antenna feed, and telecom infrastructure
Compatible RF Cable Types
- JMA Wireless JMA12-50
- JMA Wireless JMA12R-50
- CommScope LDF4
- CommScope LDF4RK
- CommScope LDF4 RN
- RFS LCF12
- RFS LCF12-50JL
- Wireless Supply WS12
- Eupen EC4
- Leoni Flexline 1/2 inch R
- LS/Superior Essex HFC 12D
- LS/Superior Essex HFAC 12D
- Hansen RF5012
- Hansen RF5012Z
- NK Draka RFA1200
- Belden RA500
- Belden RA500R
- Rosenberger SL 1/2 inch R
| Price Comparison | |||
| DAS DEALS | Tessco | Talley | Graybar |
|---|---|---|---|
| $22.99 | $37.73 | N/A | N/A |
| You Save | 39% | N/A | N/A |
Please Note: Price comparison is shown per connector. Please confirm compatibility with your cable type and installation requirements before purchase.
Installation Video
Watch the manufacturer installation video for additional guidance before installing this connector.
