Description

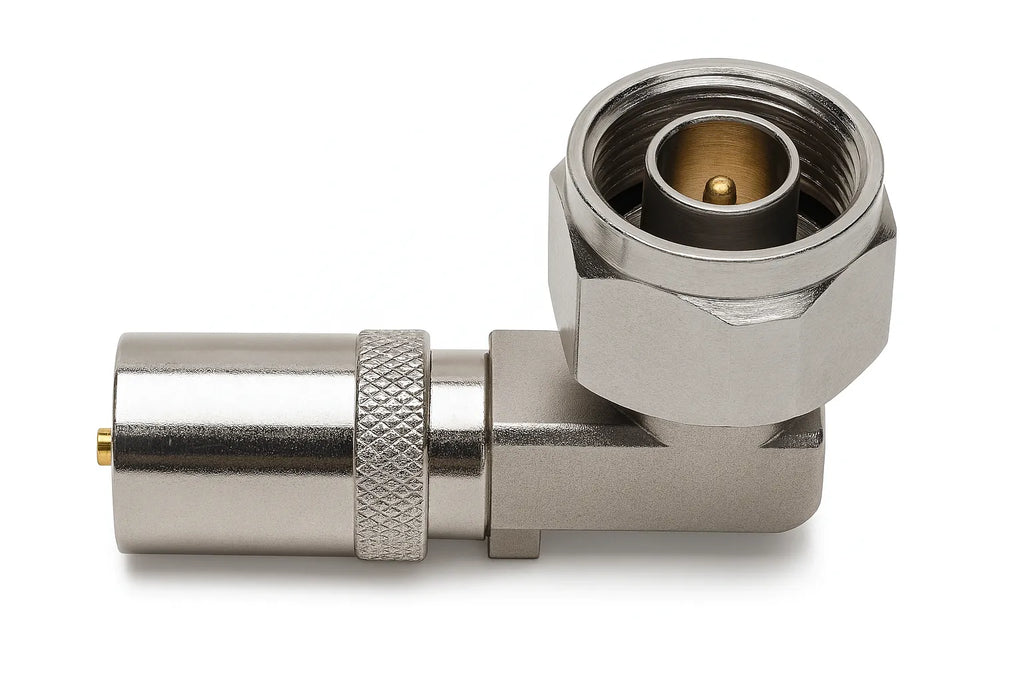

The JMA Wireless UXP-DRA-14S is a DIN Male right angle RF connector designed for 1/4 inch superflexible coaxial cable used in DAS, 5G, LTE, 4G, private wireless, small cell, macro site, rooftop, antenna feed, and telecom infrastructure applications. This 50 Ohm low PIM connector is ideal for installations where a 90-degree RF connection is needed for tight spaces or cleaner cable routing.
According to the JMA datasheet, the UXP-DRA-14S has typical 3rd order IMD/PIM performance of -161 dBc, typical insertion loss of 0.05 dB per connector, average power handling of 1000 W at 900 MHz, and peak power rating of 6.4 kW maximum. It is designed for 1/4 inch superflexible cable types and supports outdoor-ready installations with IP68 immersion and IP66 water jetting environmental performance.
Key Specifications
- Manufacturer: JMA Wireless
- Part Number: UXP-DRA-14S
- Connector Type: DIN Male Right Angle RF Connector
- Cable Type: 1/4 inch superflexible coaxial cable
- Impedance: 50 Ohm
- Operating Frequency: DC to 6 GHz
- Typical PIM / IMD: -161 dBc typical
- Typical Insertion Loss: 0.05 dB per connector
- Average Power: 1000 W at 900 MHz
- Peak Power: 6.4 kW maximum
- DC Test Voltage: 1600 V
- Shielding Effectiveness: Less than -120 dB at 0 to 1 GHz
- Interface Durability: 500 cycles
- Environmental Rating: IP68 immersion, IP66 water jetting
- Operating Temperature: -55 C to +85 C
- Weather Protection System: JMA WPS-DRA-1S
- Cable Preparation Tool: SP-14S, no coring required
- Compression Tool: HCG-FRAMESET-1/4, HCG-CC
- Torque Wrench: TQ-114-F18, 18 lbf-ft / 24.4 N-m
- Weight: Approximately 0.360 lb
- Application: DAS, 5G, LTE, 4G, private wireless, private network, small cell, macro site, rooftop, antenna feed, and telecom infrastructure
Compatible RF Cable Types
- JMA Wireless JMA14S-50
- JMA Wireless JMA14SP-50
- Wireless Supply WS14/SF
- Trilogy APC014J50
- Commscope FSJ1-50A
- Commscope FSJ1RK-50B
- Commscope PTS1-50-P
- RFS SCF14-50J
- RFS SCF14-50JFN
- Eupen EC1-50-HF
- Hansen RF5014S
- Hansen RF5014SZ
- Times SPP-250-LLPL
- Times SPO-250
- HUBER+SUHNER SUCOFEED 1/4 HFFR
- HUBER+SUHNER SUCOFEED 1/4 HF
- Other compatible 1/4 inch superflexible coaxial cables
Price Comparison
| Price Comparison | |||
| DAS DEALS | Tessco | Talley | Graybar |
|---|---|---|---|
| $29.99 | N/A | N/A | $42.71 |
| You Save | N/A | N/A | 30% |
Please Note: Price comparison is shown per connector. Please confirm compatibility with your exact cable type and installation requirements before purchase.
Installation Video
Watch the manufacturer installation video for additional guidance before installing this connector.
